Pepperl Fuchs PCV-AG80

Alignment guide

MPN: PCV-AG80
Category: Camera-Based Linear Positioning

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pepperl Fuchs parts? We buy surplus →

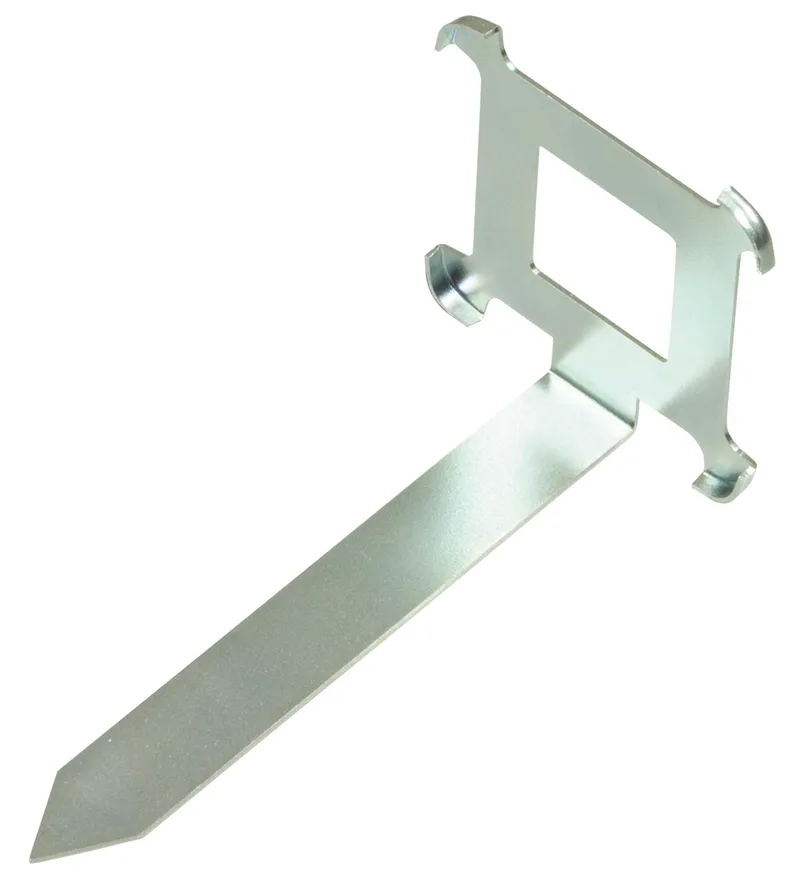

What is the Pepperl Fuchs PCV-AG80?

Alignment guide for PCV80-* read head

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	244214
Description	Alignment guide for the PCV80-* read head Distance: 80 mm
Lifecycle	Active (current Pepperl+Fuchs product)

Mechanical specifications

Material	Metal sheet (steel), zinc-plated
Mass	39 g

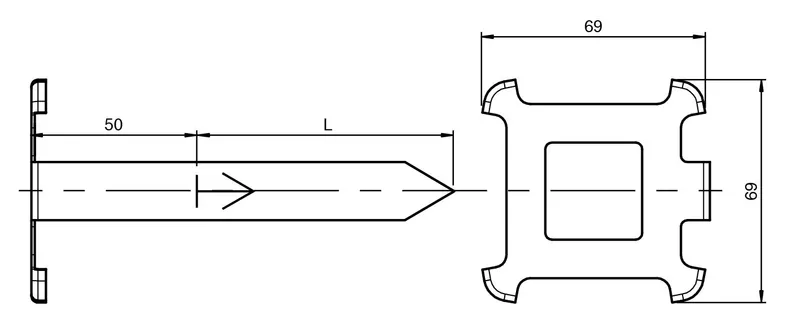

Dimensions: Height	69 mm
Dimensions: Width	69 mm
Dimensions: Length	130 mm L = 80 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet PCV-AG80PDF
