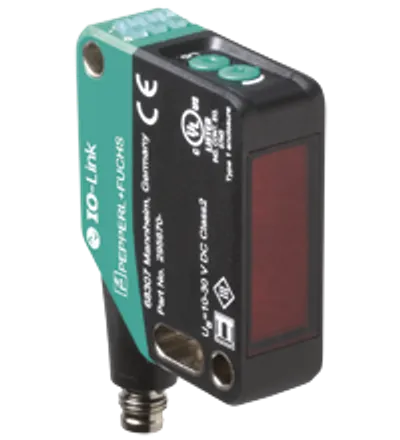

Diffuse mode sensor OBD1400-R201-2EP-IO-V1 — photo 1 of 5

Diffuse mode sensor OBD1400-R201-2EP-IO-V1 — photo 2 of 5

Diffuse mode sensor OBD1400-R201-2EP-IO-V1 — photo 3 of 5

Diffuse mode sensor OBD1400-R201-2EP-IO-V1 — photo 4 of 5

Diffuse mode sensor OBD1400-R201-2EP-IO-V1 — photo 5 of 5

Available on request

Pepperl Fuchs OBD1400-R201-2EP-IO-V1 – Diffuse mode sensor

MPN: OBD1400-R201-2EP-IO-V1 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Diffuse Mode Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can OBD1400-R201-2EP-IO-V1 be shipped?

OBD1400-R201-2EP-IO-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up OBD1400-R201-2EP-IO-V1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for OBD1400-R201-2EP-IO-V1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for OBD1400-R201-2EP-IO-V1, subject to availability and destination.

• Medium design with versatile mounting options

• Extended temperature range -40 °C ... 60 °C

• High degree of protection IP69K

• IO-Link interface for service and process data

Diffuse mode sensor, Medium design with versatile mounting options, Extended temperature range, -40 °C ... 60 °C, High degree of protection IP69K, IO-Link interface for service and process data

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	295670-100058
Detection range	2 ... 1400 mm
Detection range min.	100 ... 200 mm
Detection range max.	2 ... 1400 mm
Adjustment range	200 ... 1400 mm
Reference target	standard white, 100 mm x 100 mm
Light source	LED
Light type	modulated visible red light
LED risk group labelling	exempt group
Diameter of the light spot	approx. 50 mm at a distance of 1400 mm
Opening angle	2 °
Ambient light limit	EN 60947-5-2 : 60000 Lux
Lifecycle	Active (current Pepperl+Fuchs product)

Functional safety related parameters

MTTFd	724 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Indicators/operating means

Operation indicator	LED green: constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode
Function indicator	LED yellow: constantly on - object detected constantly off - object not detected
Control elements	Light-on/dark-on changeover switch
Control elements	Sensing range adjuster

Electrical specifications

Operating voltage	10 ... 30 V DC UB
Ripple	max. 10 %
No-load supply current	< 18 mA at 24 V Operating voltage I0
Protection class	III

Interface

Interface type	IO-Link ( via C/Q = pin 4 )
IO-Link revision	1.1
Device profile	Identification and diagnosisSmart Sensor type 2.4
Device ID	0x111111 (1118481)
Transfer rate	COM2 (38.4 kBit/s)
Min. cycle time	2.3 ms
Process data width	Process data input 1 BitProcess data output 2 Bit
SIO mode support	yes
Compatible master port type	A

Output

Switching type	The switching type of the sensor is adjustable. The default setting is: C/Q - Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link /Q - Pin2: NPN normally closed / dark-on, PNP normally open / light-on
Signal output	2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage	max. 30 V DC
Switching current	max. 100 mA , resistive load
Usage category	DC-12 and DC-13
Voltage drop	≤ 1.5 V DC Ud
Switching frequency	1000 Hz f
Response time	0.5 ms

Conformity

Communication interface	IEC 61131-9
Product standard	EN 60947-5-2

Approvals and certificates

UL approval	E87056 , cULus Listed , class 2 power supply , type rating 1
CCC approval	CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Degree of protection	IP67 / IP69 / IP69K
Connection	4-pin, M12 x 1 connector, 90° rotatable
Material: Housing	PC (Polycarbonate)
Material: Optical face	PMMA
Mass	approx. 47 g
Dimensions: Height	61.7 mm
Dimensions: Width	15 mm
Dimensions: Depth	41.7 mm
