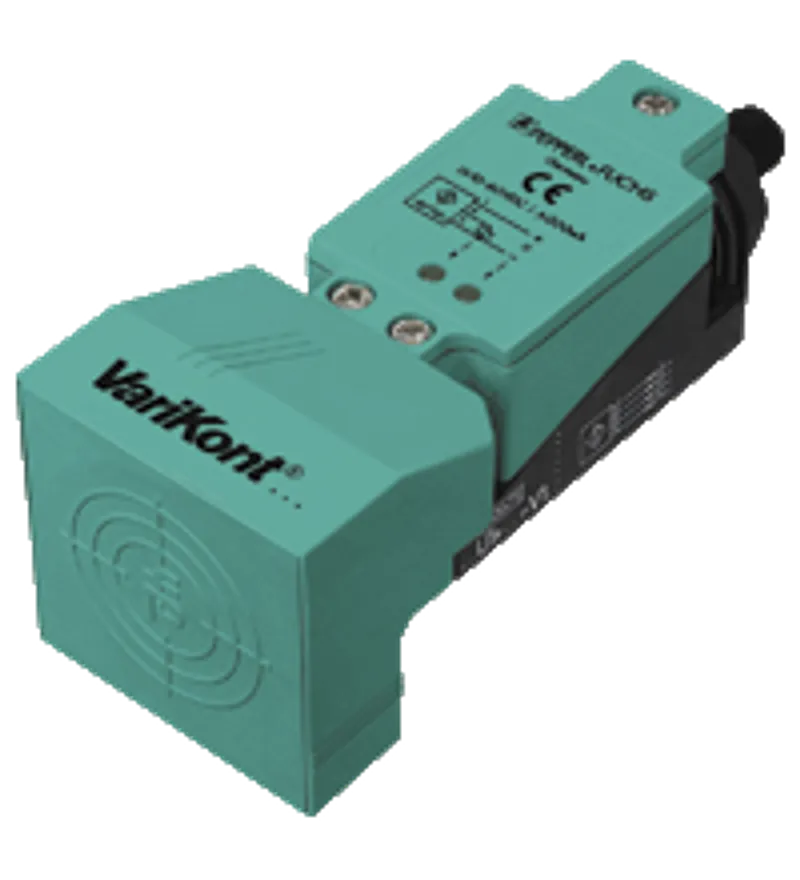

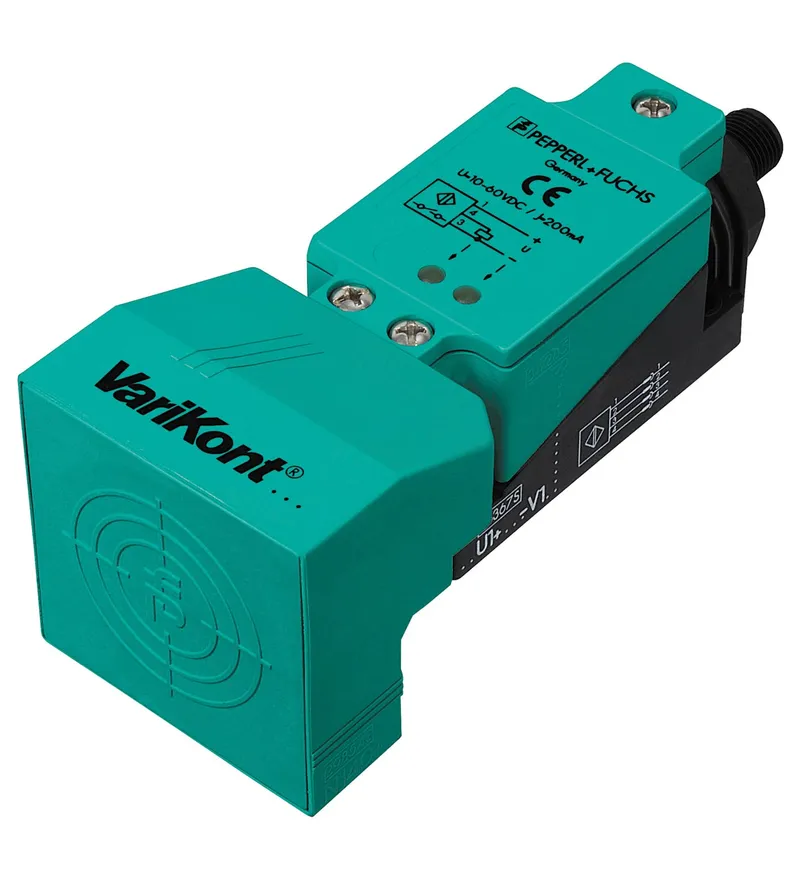

Pepperl Fuchs NJ40+U1+E2-T-V1 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ40+U1+E2-T-V1 be shipped?
NJ40+U1+E2-T-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ40+U1+E2-T-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ40+U1+E2-T-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ40+U1+E2-T-V1, subject to availability and destination.
• 40 mm non-flush
• Extended temperature range
Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: VariKont ®, Series: VariKont ®, Type of voltage: DC, Connection type: Connector plug, Housing material: PBT, Degree of protection: IP68, Threading: M12 x 1
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 287108 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 40 mm sn |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 32.4 mm sa |
| Reduction factor rAl | 0.4 |
| Reduction factor rCu | 0.3 |
| Reduction factor r304 | 0.85 |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 300 Hz f |
| Hysteresis | typ. 3 % H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 200 mA IL |
| No-load supply current | ≤ 20 mA I0 |
| Time delay before availability | ≤ 20 ms tv |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) |

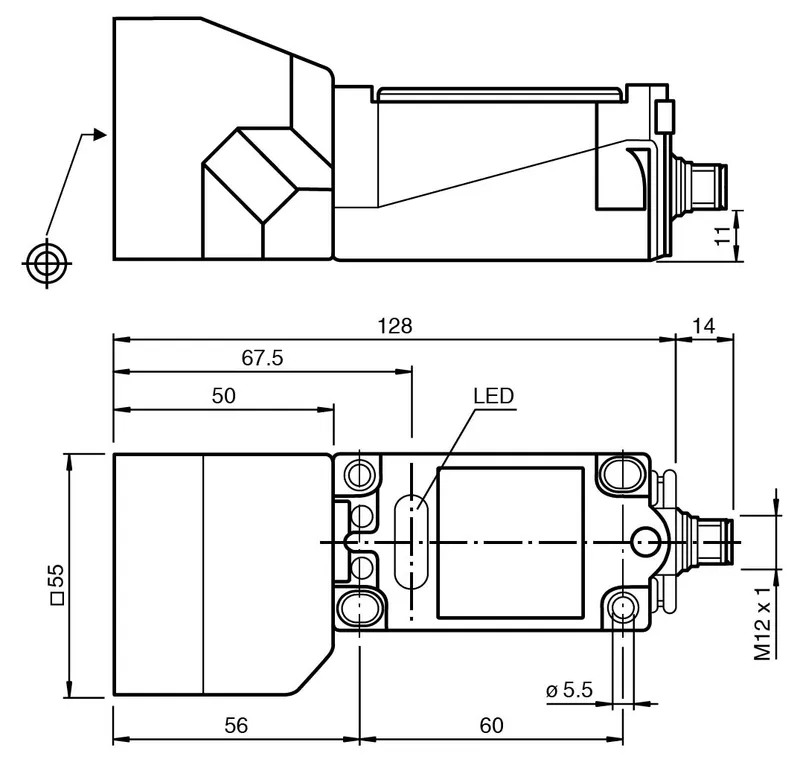

Mechanical specifications
| Connection type | Connector plug |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP68 |
| Connector: Threading | M12 x 1 |
| Connector: Number of pins | 4 |
| Mass | 130 g |
| Dimensions: Height | 55 mm |
| Dimensions: Width | 55 mm |
| Dimensions: Length | 128 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ40+U1+E2-T-V1 |
CAD & dimension drawings
| 3-D model (STEP) NJ40+U1+E2-T-V1 | STP · 3.3 MB |
| EPLAN macro NJ40+U1+E2-T-V1 | EDZ · 69 kB |
Certificates (4)
More Pepperl Fuchs parts

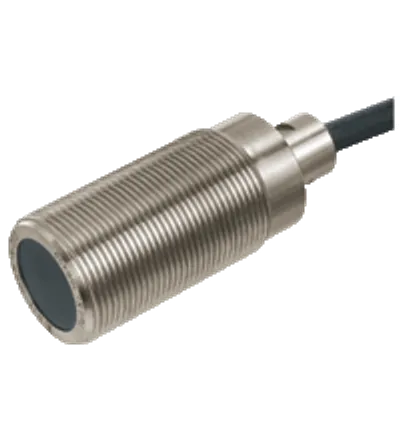

Available on requestInductive sensor NJ4-30GM-N-200-10M

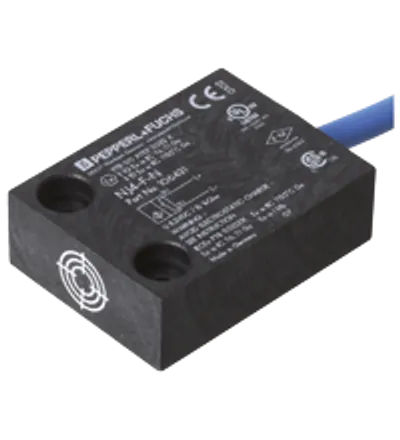

Available on requestInductive sensor NJ4-F-N

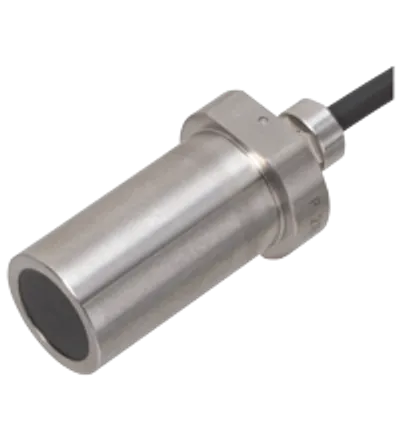

Available on requestInductive sensor NJ4-N-H31

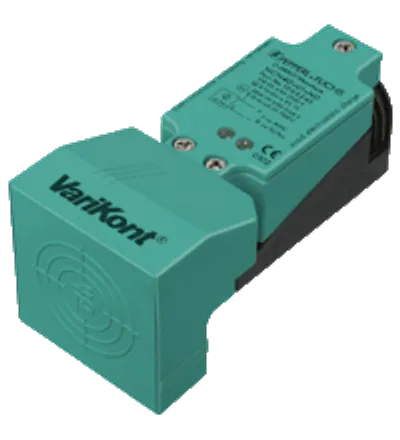

Available on requestInductive sensor NJ40+U1+E

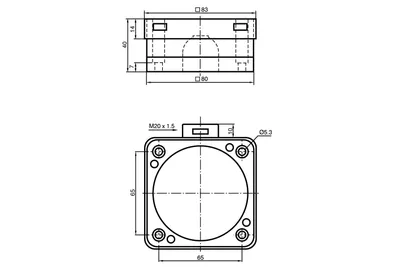

Available on requestInductive sensor NJ40-FP-SN-B1-P1-Y024207

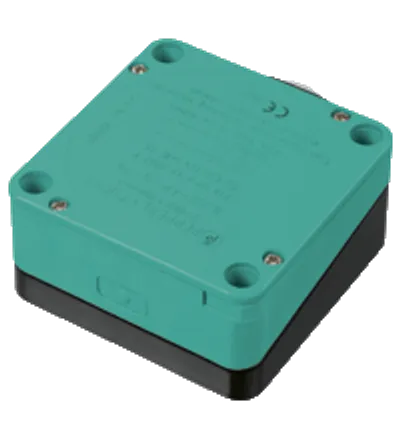

Available on requestInductive sensor NJ40-FP-SN-P1

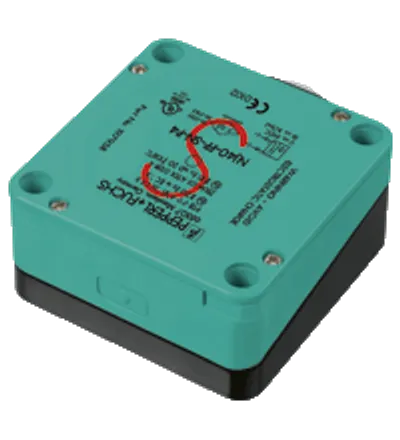

Available on requestInductive sensor NJ40-FP-SN-P4

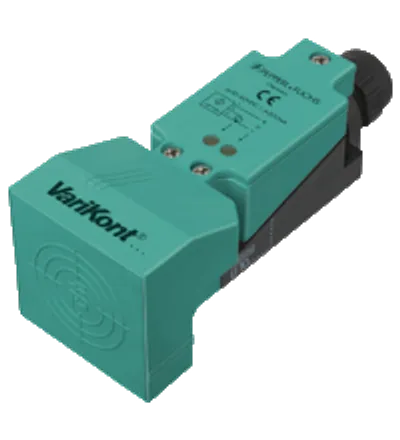

Available on requestInductive sensor NJ40+U10+E2
