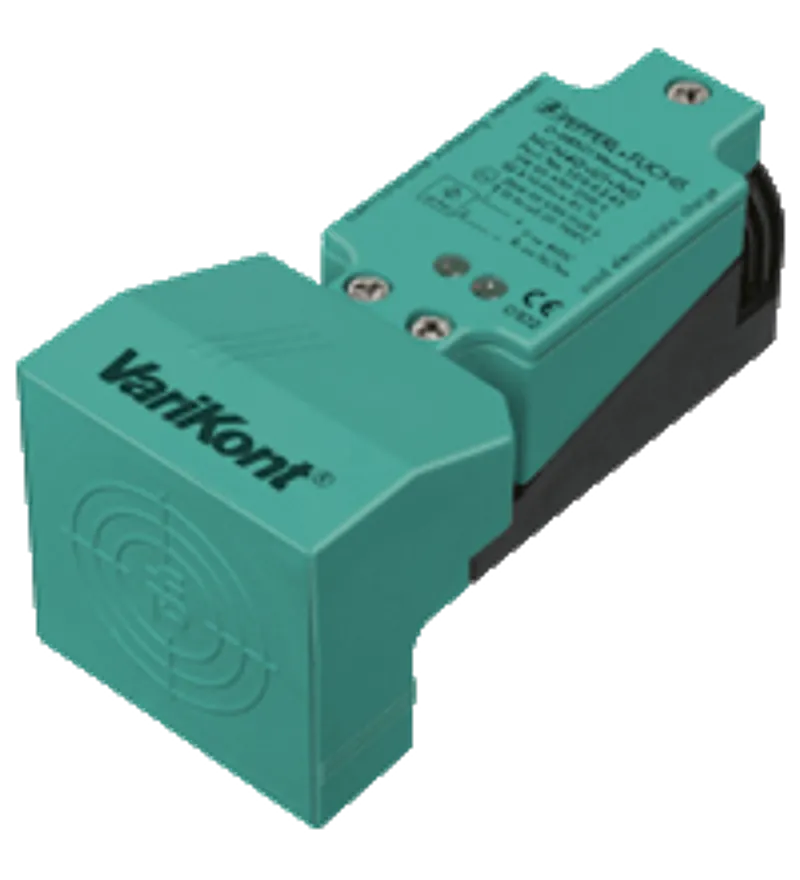

Inductive sensor NJ40+U1+E — photo 1 of 4

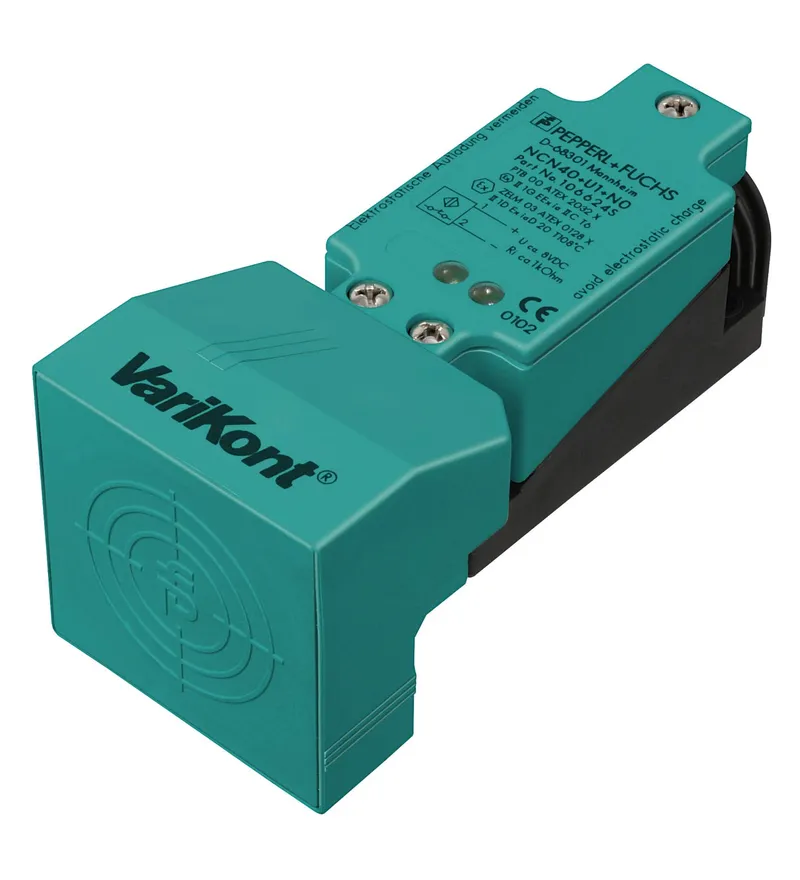

Inductive sensor NJ40+U1+E — photo 2 of 4

Inductive sensor NJ40+U1+E — photo 3 of 4

Inductive sensor NJ40+U1+E — photo 4 of 4

Available on request

Pepperl Fuchs NJ40+U1+E – Inductive sensor

MPN: NJ40+U1+E · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NJ40+U1+E be shipped?

NJ40+U1+E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NJ40+U1+E in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NJ40+U1+E and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ40+U1+E, subject to availability and destination.

• 40 mm non-flush

Switching function: Normally open (NO), Output type: NPN, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: VariKont ®, Series: VariKont ®, Type of voltage: DC, Connection type: screw terminals, Housing material: PBT, Degree of protection: IP68

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	084526
Switching function	Normally open (NO)
Output type	NPN
Rated operating distance	40 mm sn
Installation	non-flush
Output polarity	DC
Assured operating distance	0 ... 32.4 mm sa
Actual operating distance	36 ... 44 mm typ. 40 mm sr
Reduction factor rAl	0.5
Reduction factor rCu	0.45
Reduction factor r304	0.8
Output type	3-wire
Lifecycle	Active (current Pepperl+Fuchs product)

Nominal ratings

Operating voltage	10 ... 60 V UB
Switching frequency	0 ... 100 Hz f
Hysteresis	1 ... 10 % typ. 5 % H
Reverse polarity protection	reverse polarity protected
Short-circuit protection	pulsing
Voltage drop	≤ 2.8 V Ud
Voltage drop at IL: Voltage drop IL = 1 mA, switching element on	0.5 ... 2.3 V typ. 0.9 V Ud
Voltage drop at IL: Voltage drop IL = 10 mA, switching element on	0.8 ... 2.2 V typ. 1.4 V Ud
Voltage drop at IL: Voltage drop IL = 20 mA, switching element on	0.9 ... 2.3 V typ. 1.5 V Ud
Voltage drop at IL: Voltage drop IL = 50 mA, switching element on	0.9 ... 2.5 V typ. 1.6 V Ud
Voltage drop at IL: Voltage drop IL = 100 mA, switching element on	1 ... 2.6 V typ. 1.8 V Ud
Voltage drop at IL: Voltage drop IL = 200 mA, switching element on	1.2 ... 2.8 V typ. 2 V Ud
Operating current	0 ... 200 mA IL
Off-state current	0 ... 0.5 mA typ. 0.01 mA Ir
Off-state current TU =40 °C, switching element off	≤ 100 µA
No-load supply current	≤ 10 mA I0
Time delay before availability	≤ 100 ms tv
Operating voltage indicator	LED, green
Switching state indicator	LED, yellow

Compliance with standards and directives

Standard conformity: Standards

EN IEC 60947-5-2

Approvals and certificates

UL approval	cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA
CCC approval	Certified by China Compulsory Certification (CCC)

Ambient conditions

Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-25 ... 85 °C (-13 ... 185 °F)

Mechanical specifications

Connection type	screw terminals
Information for connection	A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 %
Core cross section	up to 2.5 mm2
Minimum core cross-section	without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2
Maximum core cross-section	without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2
Housing material	PBT
Sensing face	PBT
Degree of protection	IP68

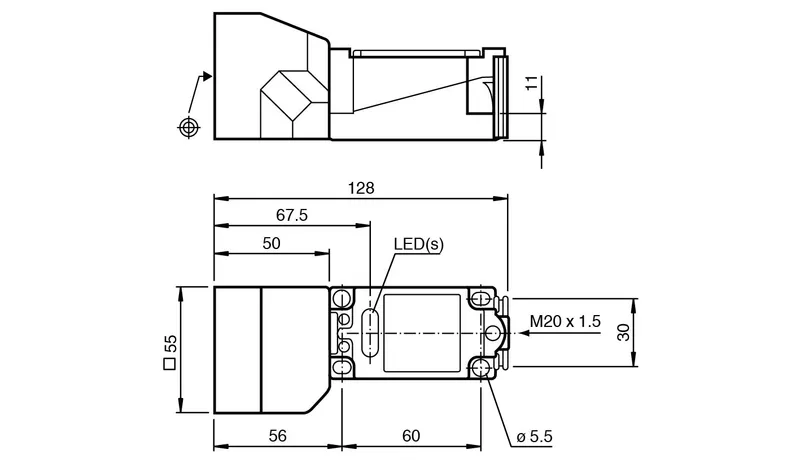

Dimensions: Height	55 mm
Dimensions: Width	55 mm
Dimensions: Length	128 mm
