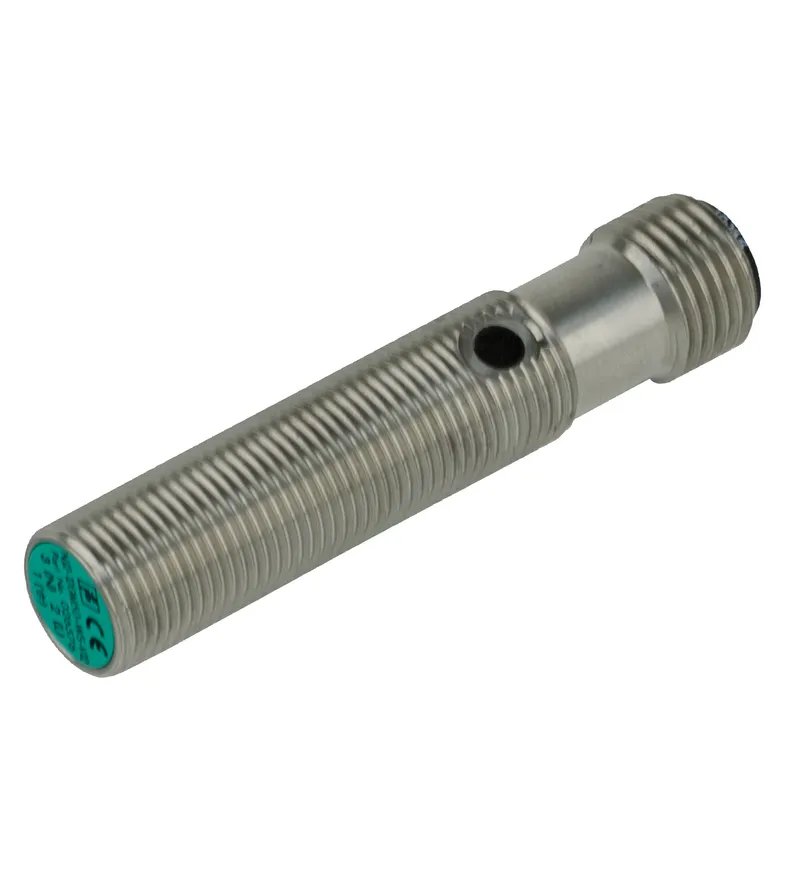

Pepperl Fuchs NJ2-12GM50-WS-V12 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ2-12GM50-WS-V12 be shipped?
NJ2-12GM50-WS-V12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ2-12GM50-WS-V12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ2-12GM50-WS-V12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ2-12GM50-WS-V12, subject to availability and destination.
• Comfort series
• 2 mm flush

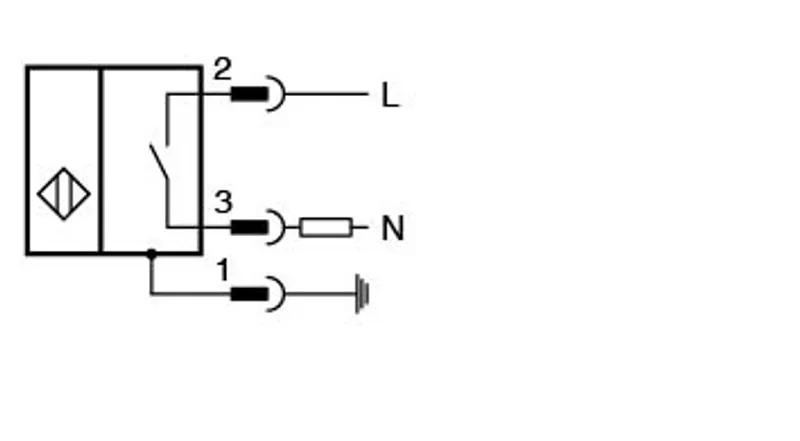

• 2-wire AC
Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: AC, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: AC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: 1/2"-20 UN
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 026576 |
| Switching function | Normally open (NO) |
| Output type | Two-wire |
| Rated operating distance | 2 mm sn |
| Installation | flush |
| Output polarity | AC |
| Assured operating distance | 0 ... 1.62 mm sa |
| Reduction factor rAl | 0.1 |
| Reduction factor rCu | 0.1 |
| Reduction factor r304 | 0.6 |
| Output type | 2-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 20 ... 253 V UB |
| Switching frequency | 0 ... 20 Hz f |
| Voltage drop | typ. 4 V at 15 ... 200 mA typ. 6.5 V at 5 mA Ud |
| Momentary current (20 ms, 0.1 Hz) | 0 ... 1200 mA |
| Operating current | 5 ... 200 mA IL |
| Off-state current | typ. 0.7 mA Ir |
| Time delay before availability | ≤ 30 ms tv |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Enclosure Type Rating: Type 1 |
| CSA approval | cCSAus Listed, General Purpose |
| CCC approval | Certified by China Compulsory Certification (CCC) |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |

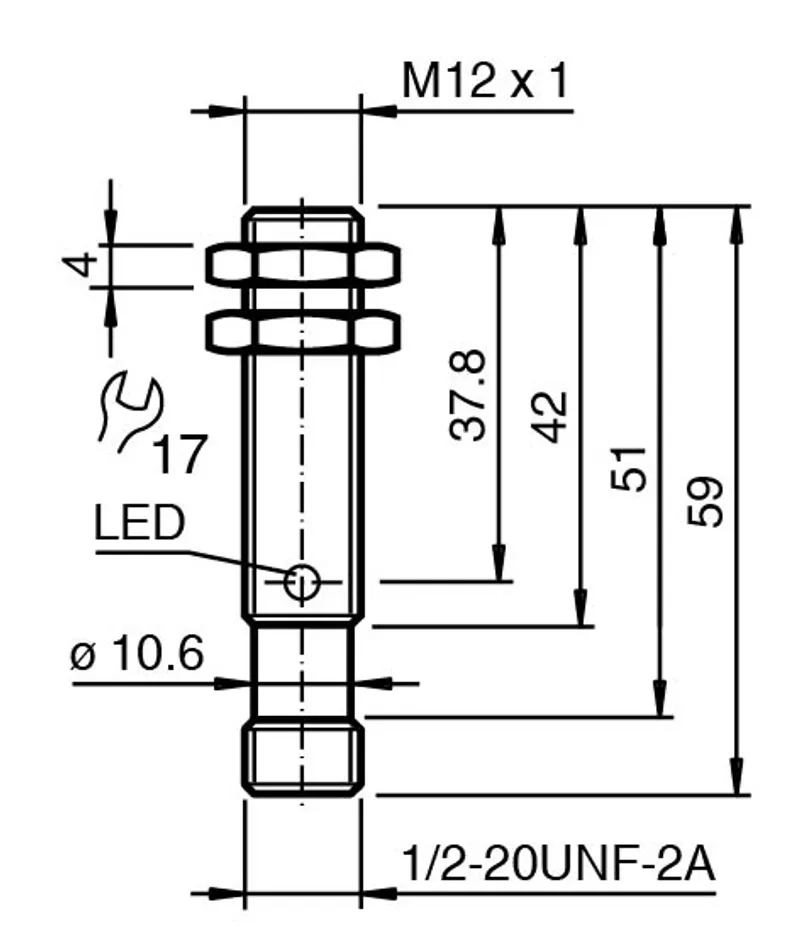

Mechanical specifications
| Connection type | Connector plug |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Connector: Threading | 1/2"-20 UN |

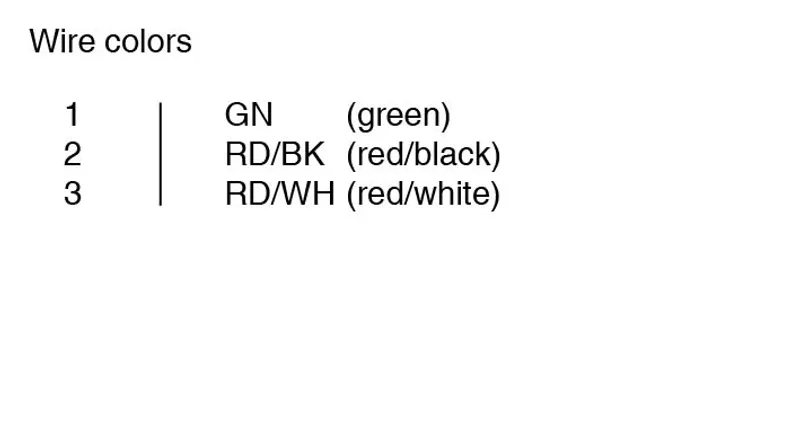

| Connector: Number of pins | 3 |
| Dimensions: Length | 50 mm |
| Dimensions: Diameter | 12 mm |
General information
| Scope of delivery | 2 self locking nuts in scope of delivery |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ2-12GM50-WS-V12 | |
| Installation conditions | PDF · 1.1 MB |
CAD & dimension drawings
| 3-D model (STEP) NJ2-12GM50-WS-V12 | STP · 41 kB |
Certificates (2)
| Canada USA CSA Ordinary Location (80209431) | PDF · 202 kB |
| Canada USA UL Ordinary Location (UL-US-L87056-11-41301991-3 / UL-CA-L87056-31-41301991-3) | PDF · 1.8 MB |
More Pepperl Fuchs parts
Available on requestInductive sensor NJ2-12GM50-WOAvailable on requestInductive sensor NJ2-12GM50-WO-6MAvailable on requestInductive sensor NJ2-12GM50-WSAvailable on requestInductive sensor NJ2-12GM50-WS-5M
Available on requestInductive sensor NJ2-14GM-N-C50
Available on requestInductive sensor NJ2-14GM-N-V1-Y19784

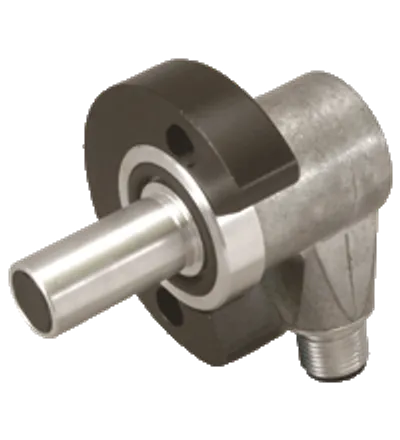

Available on requestInductive sensor NJ2-D-E02-1.025-V1Available on requestInductive sensor NJ2-D-E02-1.250-V1
