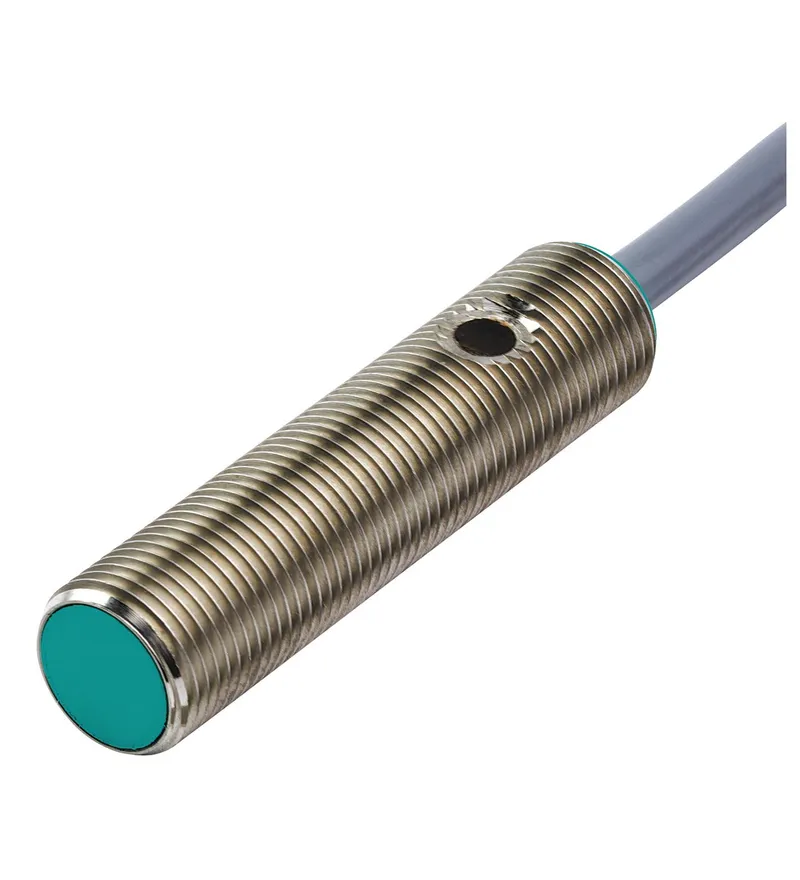

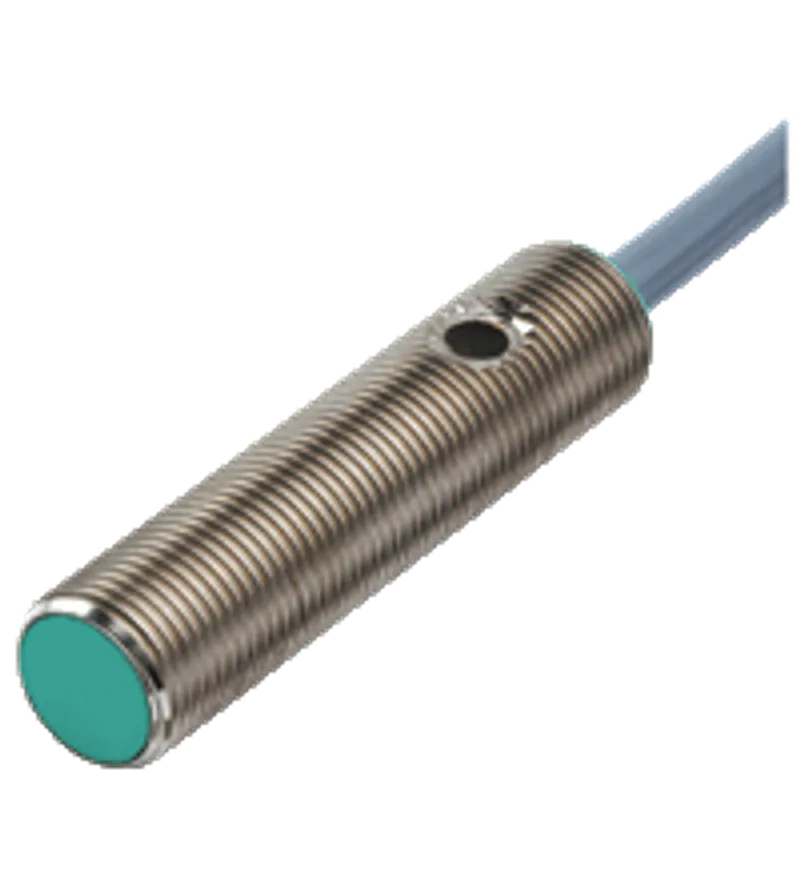

Pepperl Fuchs NJ2-12GM50-WS – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ2-12GM50-WS be shipped?
NJ2-12GM50-WS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ2-12GM50-WS in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ2-12GM50-WS and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ2-12GM50-WS, subject to availability and destination.
• 2 mm flush
• 2-wire AC
Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: AC, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: AC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PVC
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 025998 |
| Switching function | Normally open (NO) |
| Output type | Two-wire |
| Rated operating distance | 2 mm sn |
| Installation | flush |
| Output polarity | AC |
| Assured operating distance | 0 ... 1.62 mm sa |
| Reduction factor rAl | 0.1 |
| Reduction factor rCu | 0.1 |
| Reduction factor r304 | 0.6 |
| Output type | 2-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 20 ... 253 V UB |
| Switching frequency | 0 ... 20 Hz f |
| Reverse polarity protection | reverse polarity tolerant |
| Voltage drop | typ. 4 V at 15 ... 200 mA typ. 6.5 V at 5 mA Ud |
| Momentary current (20 ms, 0.1 Hz) | 0 ... 1200 mA |
| Operating current | 5 ... 200 mA IL |
| Off-state current | typ. 0.7 mA Ir |
| Time delay before availability | ≤ 30 ms tv |
| Switching state indicator | LED, yellow |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Enclosure Type Rating: Type 1 |
| CSA approval | cCSAus Listed, General Purpose |
| CCC approval | Certified by China Compulsory Certification (CCC) |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable: Wire end ferrules | yes |
| Cable: Cable diameter | 4.6 mm ± 0.2 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | grey |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.34 mm2 |
| Cable: Length | 2 m L |

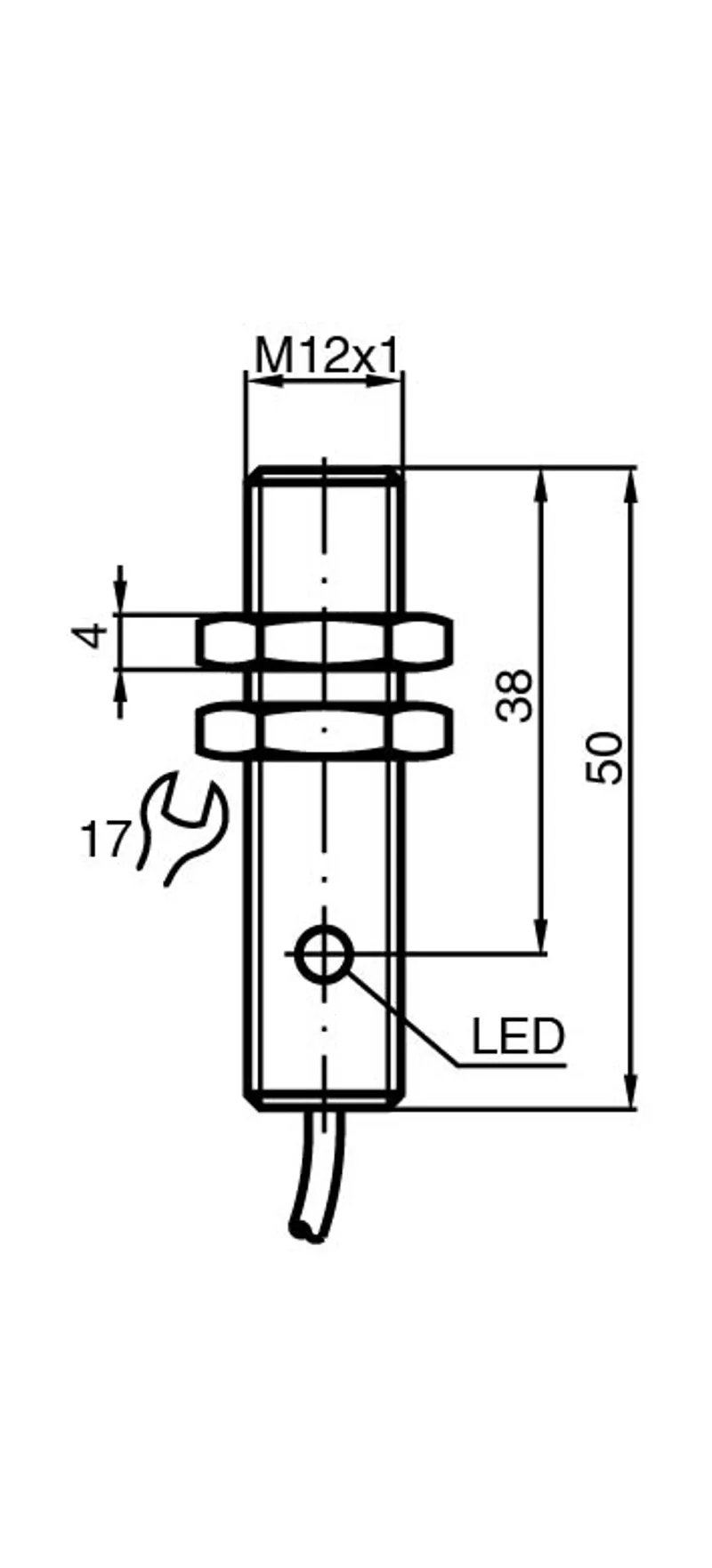

| Dimensions: Length | 50 mm |
| Dimensions: Diameter | 12 mm |
| Note | 1) In the temperature range below 0 °C, permissible operating voltage Ub 80...253 V Safety fuse ≤ 2 A (quick-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly. |
General information
| Scope of delivery | 2 self locking nuts in scope of delivery |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ2-12GM50-WS | |
| Installation conditions | PDF · 1.1 MB |
CAD & dimension drawings
| 3-D model (STEP) NJ2-12GM50-WO-6M | STP · 47 kB |
Certificates (5)
More Pepperl Fuchs parts
Available on requestInductive sensor NJ2-12GM40-E3-5M

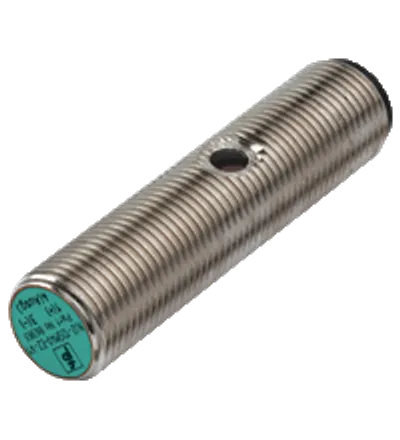

Available on requestInductive sensor NJ2-12GM40-E3-V1

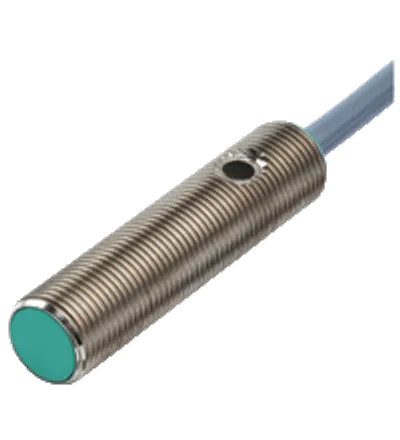

Available on requestInductive sensor NJ2-12GM50-WOAvailable on requestInductive sensor NJ2-12GM50-WO-6MAvailable on requestInductive sensor NJ2-12GM50-WS-5M
Available on requestInductive sensor NJ2-12GM50-WS-V12

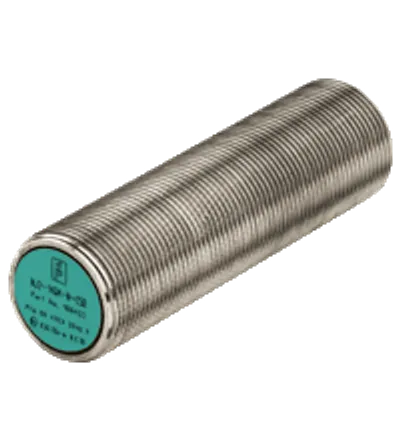

Available on requestInductive sensor NJ2-14GM-N-C50

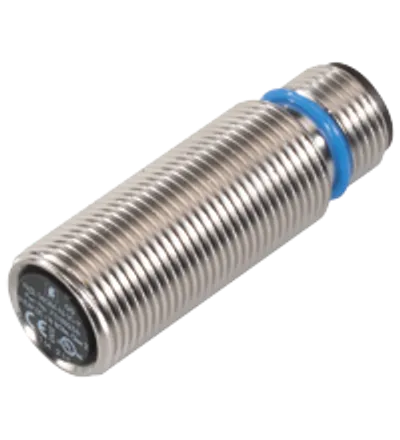

Available on requestInductive sensor NJ2-14GM-N-V1-Y19784
