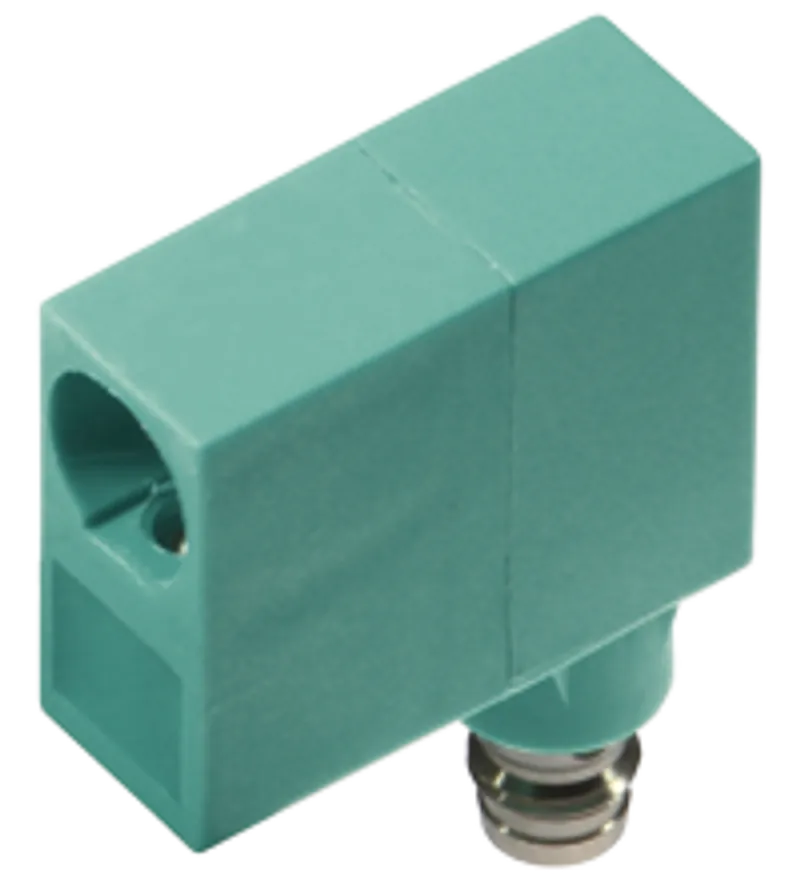

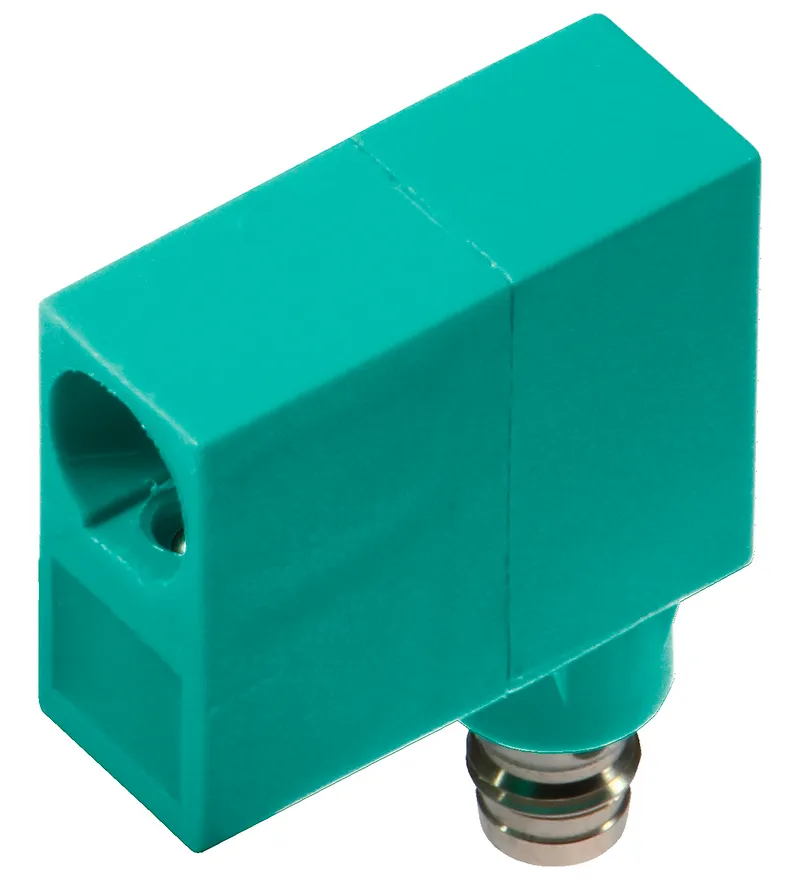

Pepperl Fuchs NJ1,5-F2-E2-V3 – Inductive sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NJ1,5-F2-E2-V3 be shipped?
NJ1,5-F2-E2-V3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NJ1,5-F2-E2-V3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NJ1,5-F2-E2-V3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ1,5-F2-E2-V3, subject to availability and destination.
• Comfort series
Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC, Connection type: Connector plug, Housing material: Polyamide (PA), Degree of protection: IP67, Threading: M8 x 1
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 086589 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 1.5 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 1.215 mm sa |
| Output type | 3-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 1000 Hz f |
| Hysteresis | typ. 5% H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 200 mA IL |
| No-load supply current | ≤ 15 mA I0 |
| Switching state indicator | LED, red |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | Connector plug |
| Housing material | Polyamide (PA) |
| Degree of protection | IP67 |
| Connector: Threading | M8 x 1 |
| Connector: Number of pins | 3 |

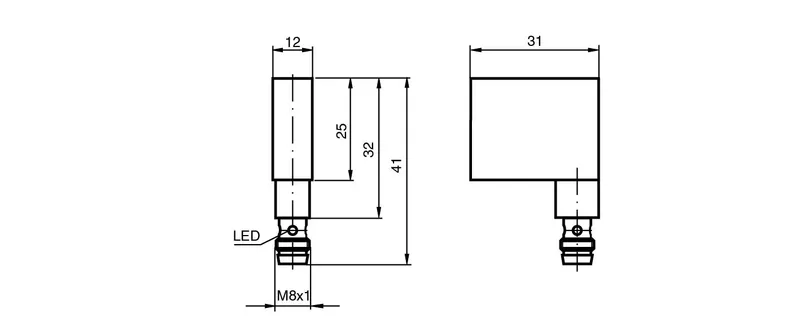

| Dimensions: Height | 25 mm |
| Dimensions: Width | 12 mm |
| Dimensions: Length | 31 mm |
| Note | Use a stop screw combined with a model -F2 sensor from Pepperl+Fuchs GmbH. The maximum actuation speed of the control slide is 0.1 m/s |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet NJ1,5-F2-E2-V3 |
CAD & dimension drawings
| 3-D model (STEP) NJ1,5-F2-E2-V3 | STP · 254 kB |
| EPLAN macro NJ1,5-F2-E2-V3 | EDZ · 64 kB |
Certificates (3)
More Pepperl Fuchs parts

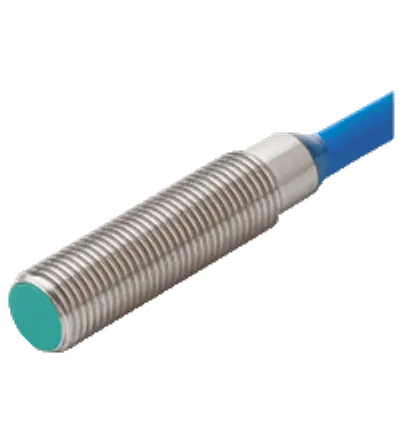

Available on requestInductive sensor NJ0,8-5GM-N-5MAvailable on requestInductive sensor NJ0,8-5GM-N-Y18620
Available on requestInductive sensor NJ1,5-8GM-N-0,5M-V1-Y247834

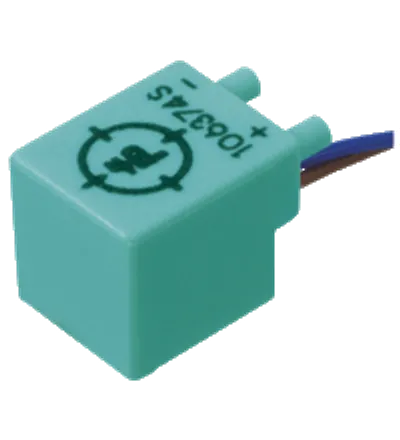

Available on requestInductive sensor NJ1,5-F-N

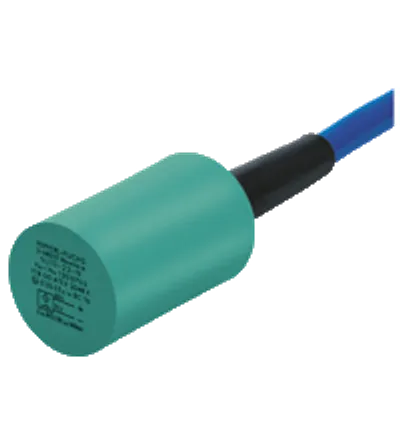

Available on requestInductive sensor NJ10-22-N

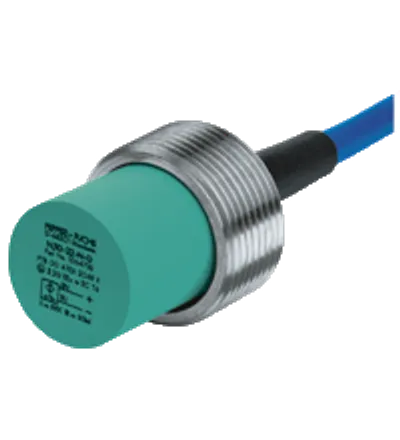

Available on requestInductive sensor NJ10-22-N-GAvailable on requestInductive sensor NJ10-22-N-G-5M

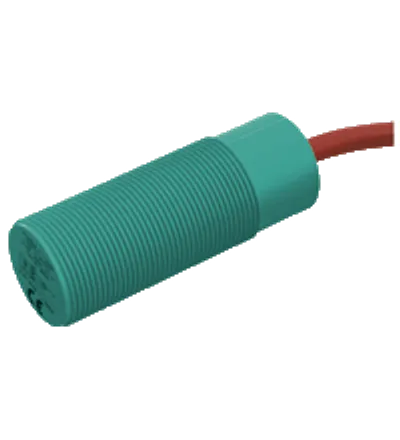

Available on requestInductive sensor NJ10-30GK-E-T
