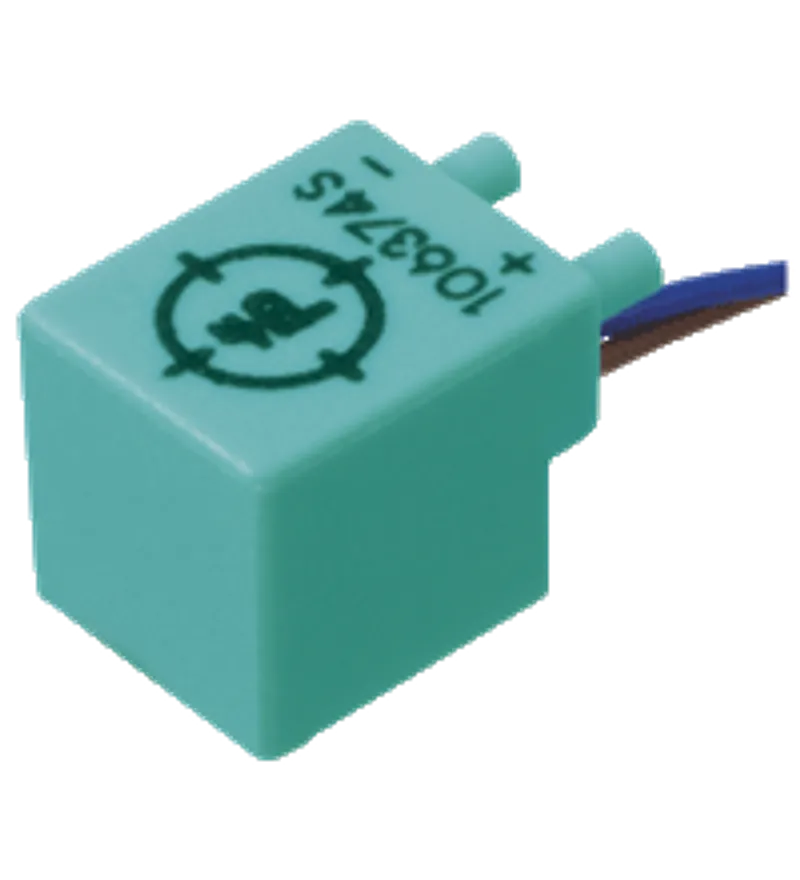

Inductive sensor NJ1,5-F-N — photo 1 of 4

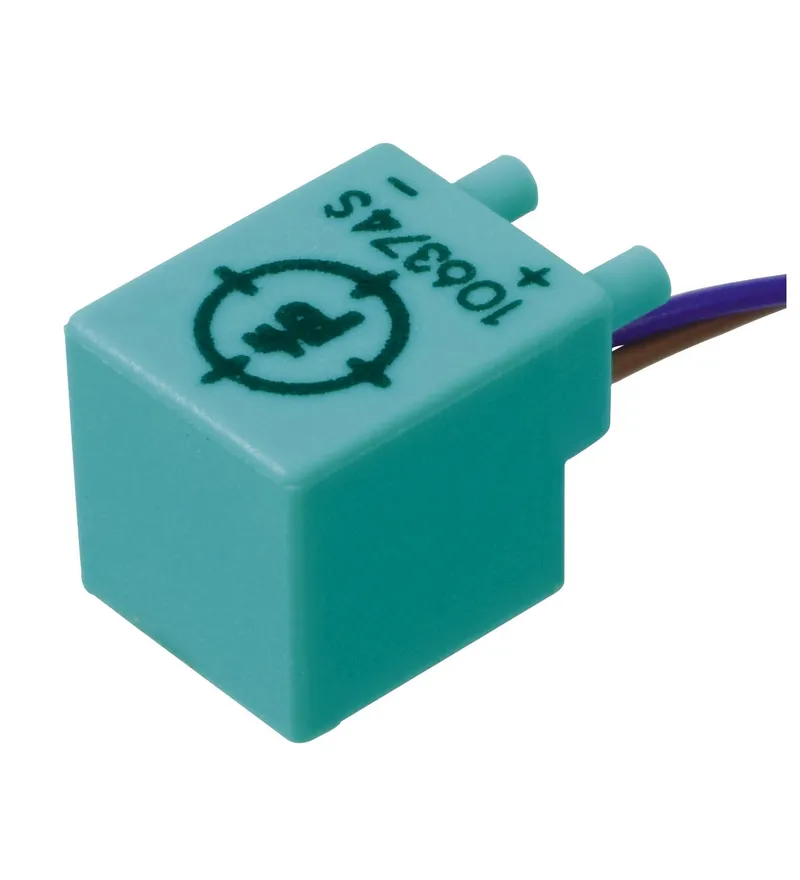

Inductive sensor NJ1,5-F-N — photo 2 of 4

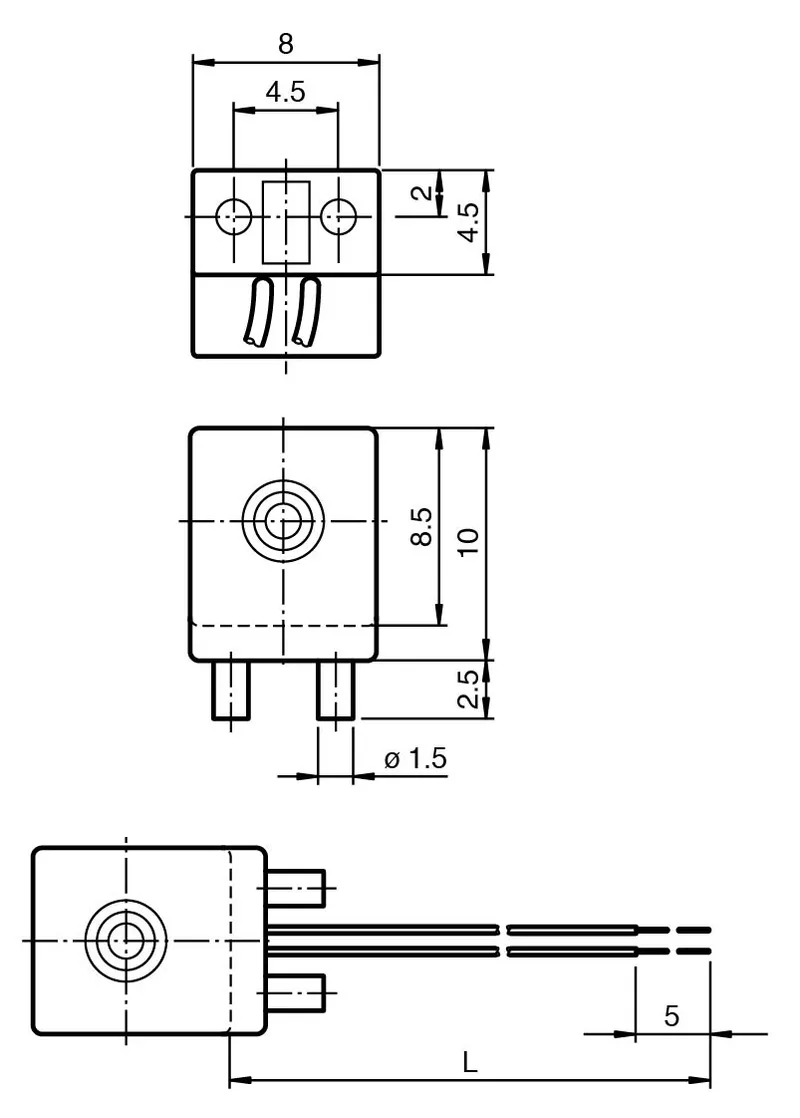

Inductive sensor NJ1,5-F-N — photo 3 of 4

Inductive sensor NJ1,5-F-N — photo 4 of 4

Available on request

Pepperl Fuchs NJ1,5-F-N – Inductive sensor

MPN: NJ1,5-F-N · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NJ1,5-F-N be shipped?

NJ1,5-F-N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NJ1,5-F-N in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NJ1,5-F-N and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NJ1,5-F-N, subject to availability and destination.

• 1.5 mm non-flush

• NAMUR output

Extended temperature range, Switching function: Normally closed (NC), Output type: NAMUR, Installation: non-flush, Output type: 2-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC, Equipment protection level Gb: IECEx PTB 11.0021X, Equipment protection level Da: IECEx PTB 11.0021X, Equipment protection level Mb: IECEx PTB 11.0021X, Equipment protection level Gb: PTB 00 ATEX 2032 X, Equipment protection level Da: PTB 00 ATEX 2032 X, Connection type: flexible leads

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70192548
Switching function	Normally closed (NC)
Output type	NAMUR
Rated operating distance	1.5 mm sn
Installation	non-flush
Assured operating distance	0 ... 1.22 mm sa
Reduction factor rAl	0.4
Reduction factor rCu	0.3
Reduction factor r304	0.85
Output type	2-wire
Lifecycle	Active (current Pepperl+Fuchs product)

Nominal ratings

Nominal voltage	8.2 V (Ri approx. 1 kΩ) Uo
Switching frequency	0 ... 5000 Hz f
Hysteresis	typ. % H
Current consumption: Measuring plate not detected	min. 3 mA
Current consumption: Measuring plate detected	≤ 1 mA

Safety-relevant product characteristics

MTTFd	8734 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Compliance with standards and directives

Standard conformity: NAMUR	EN 60947-5-6:2000 IEC 60947-5-6:1999
Standard conformity: Standards	EN IEC 60947-5-2

Approvals and certificates

IECEx approval: Equipment protection level Gb	IECEx PTB 11.0021X
IECEx approval: Equipment protection level Da	IECEx PTB 11.0021X
IECEx approval: Equipment protection level Mb	IECEx PTB 11.0021X
ATEX approval: Equipment protection level Gb	PTB 00 ATEX 2032 X
ATEX approval: Equipment protection level Da	PTB 00 ATEX 2032 X
UL approval	cURus Recognized Load Type: General Purpose Circuitry: Class 2 Power Source Supply/Switching Voltage: 8.2 V DC Further UL information see section "Additional Information"
CCC approval: Hazardous Location	2020322315002302
CML approval	on request
ANZEx	19.3001X

Ambient conditions

Ambient temperature

-25 ... 100 °C (-13 ... 212 °F)

Mechanical specifications

Connection type	flexible leads
Housing material	PBT
Sensing face	PBT
Degree of protection	IP68
Cable: Material	LIFYW
Cable: Core cross section	0.06 mm2
Cable: Length	500 mm L
Mass	2 g
Dimensions: Height	10 mm
Dimensions: Width	8 mm
Dimensions: Length	8 mm

General information

Use in the hazardous area

see instruction manuals
