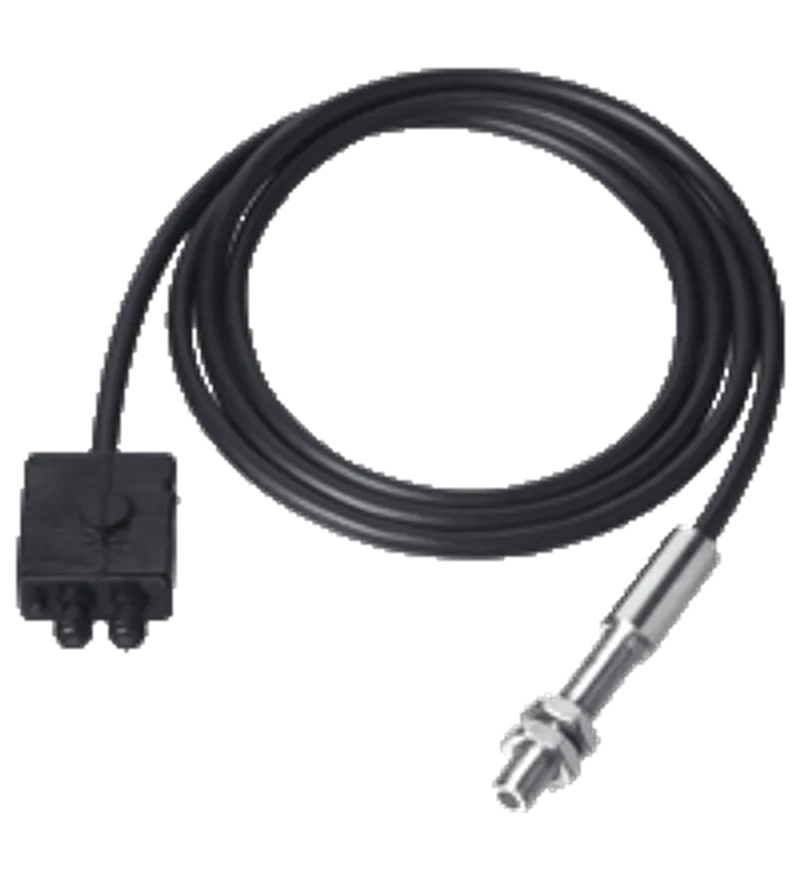

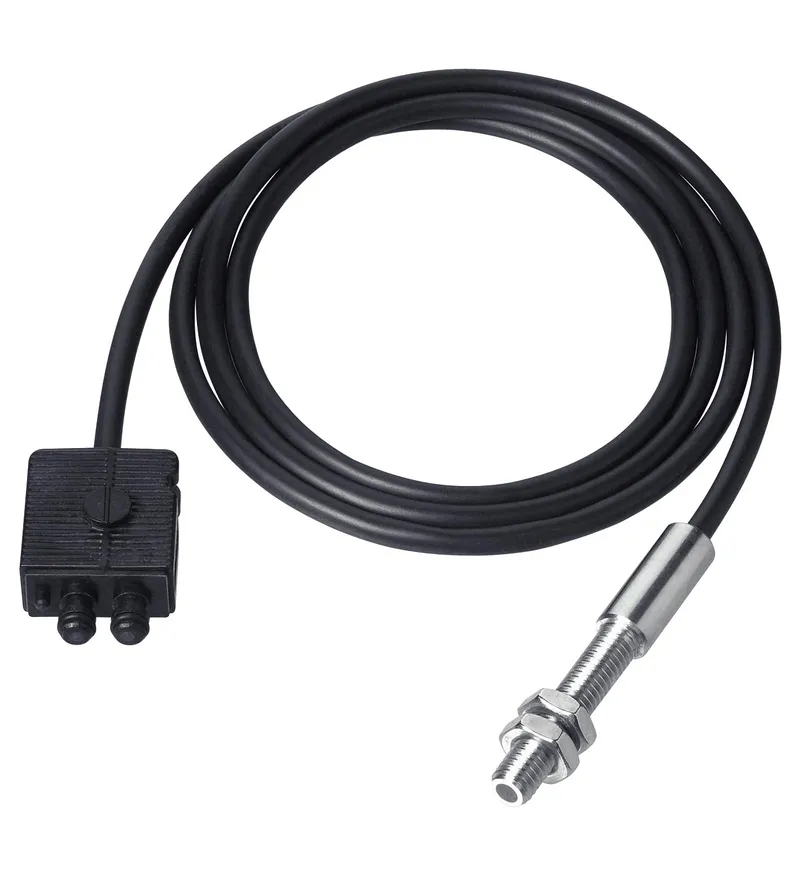

Pepperl Fuchs LCR 04-1,1-2,0-G – Glass fiber optic
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LCR 04-1,1-2,0-G be shipped?
LCR 04-1,1-2,0-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LCR 04-1,1-2,0-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LCR 04-1,1-2,0-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LCR 04-1,1-2,0-G, subject to availability and destination.
• M4 x 30 thread
Glass fiber optic - diffuse with PVC covering, End piece: thread, Series: Glass fiber optic - diffuse, Sheathing: PVC, Device series: MLV41-LL
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 111774 |
| Fiber optic length | 2000 mm l |
| Fiber optic diameter | 3.6 mm d |
| Adapter form | 04 |
| End piece | thread |
| Bending radius | min. 15 mm |
| Fiber bundle diameter | 1.8 mm optical face: 2.5 mm2 |
| Fiber configuration | optical seperated Fv |
| Opening angle | approx. 69 ° |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -20 ... 85 °C (-4 ... 185 °F) [Adapter] -20 ... 85 °C (-4 ... 185 °F) [End head and Covering] |
| Storage temperature | -20 ... 85 °C (-4 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP65 |
| Material: Optical face | glass |
| Material: Sheathing | PVC |
| Material: Core | Glass fiber |
| Material: End piece | Stainless steel 1.4305 / AISI 303 |
| Material: Adapter | PVC |
| Extraction force | at probe at 20°C: 120 N |
Fiber optic amplifiers
| Device series | MLV41-LL |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet LCR 04-1,1-2,0-G |
More Pepperl Fuchs parts
Available on requestGlass fiber optic LCE 18-2,3-5,0-K2
Available on requestCapacitive limit switch LCL1
Available on requestCapacitive limit switch LCL2

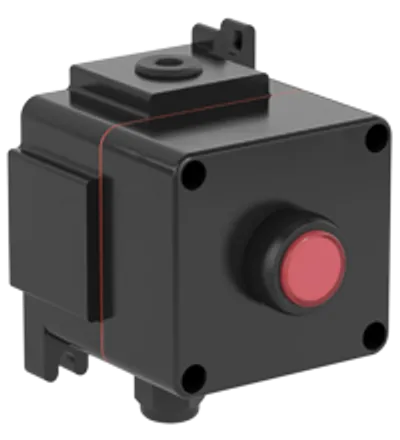

Available on requestControl Unit Ex e, GRP, LED Indicator LCP1.LRLX.B.1Available on requestGlass fiber optic LCR 01-2,3-0,15-Z1
Available on requestGlass fiber optic LCR 04-1,1-2,0-G
Available on requestGlass fiber optic LCR 04-1,6-0,5-WC 3

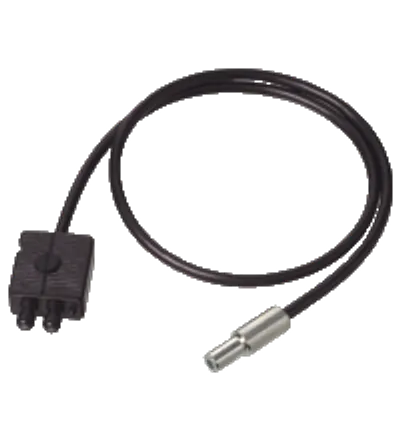

Available on requestGlass fiber optic LCR 04-1,6-0,5-Z1
