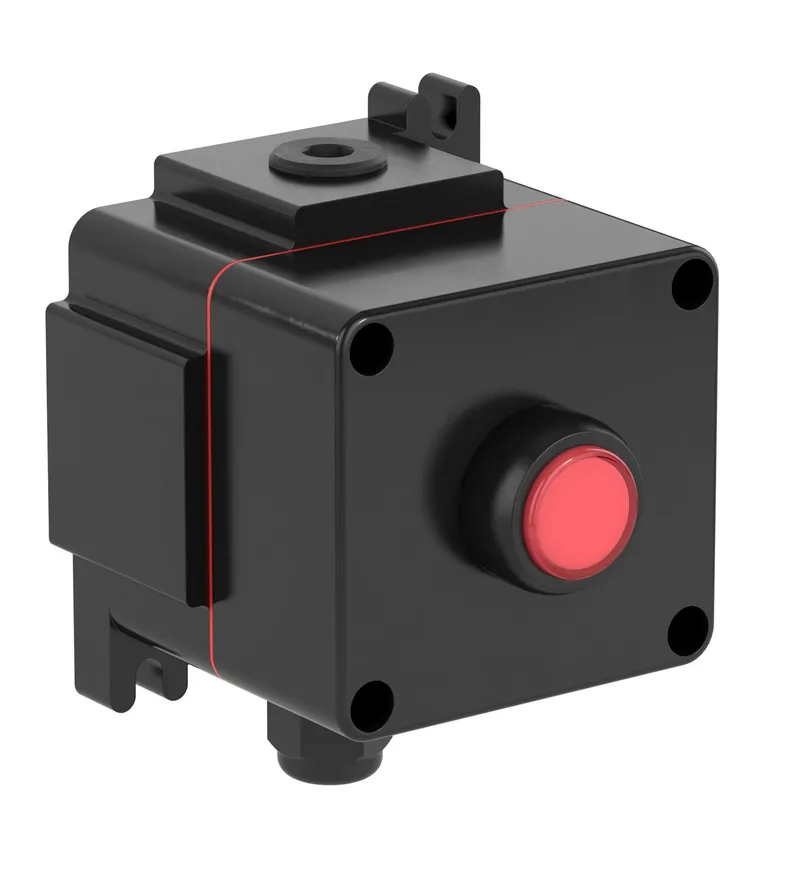

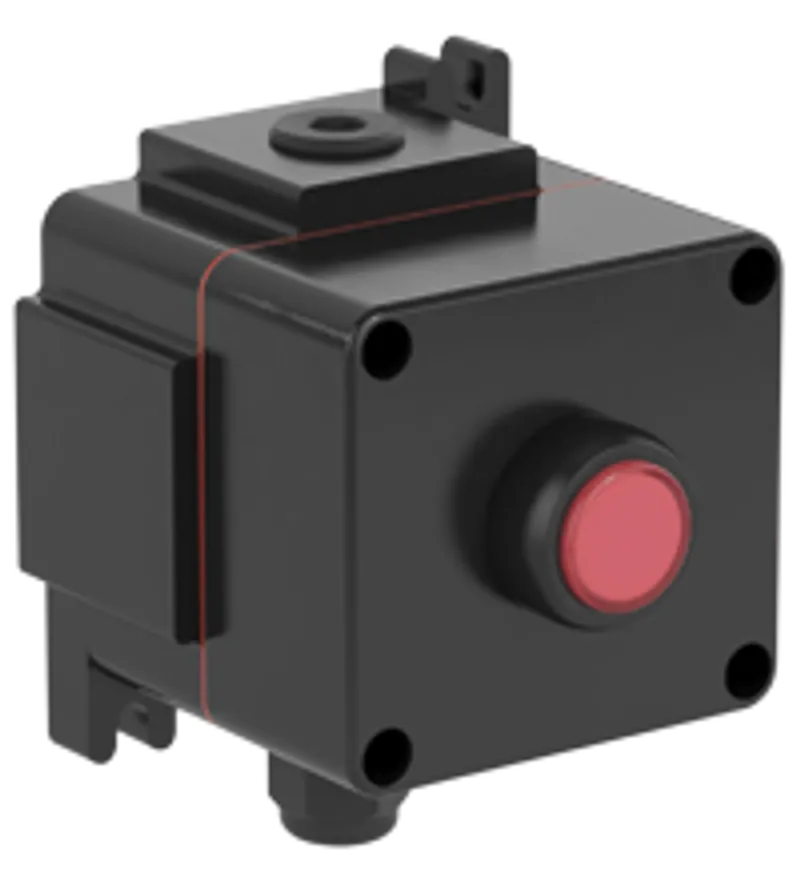

Pepperl Fuchs LCP1.LRLX.B.1 – Control Unit Ex e, GRP, LED Indicator
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LCP1.LRLX.B.1 be shipped?
LCP1.LRLX.B.1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LCP1.LRLX.B.1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LCP1.LRLX.B.1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LCP1.LRLX.B.1, subject to availability and destination.
• LED indicator, red
• Glass-fiber reinforced polyester (GRP) enclosure
• Ex de and Ex tb certified
• Installation in Zone 1, Zone 2, Zone 21 and Zone 22
• Top face stopping plug polyamide, 1x M20; bottom face cable gland polyamide, 1x M20
• Degree of protection IP66
LED indicator, red, Glass-fiber reinforced polyester (GRP) enclosure, Ex de and Ex tb certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Top face stopping plug polyamide, 1x M20; bottom face cable gland polyamide, 1x M20, Degree of protection IP66, Function: LED indicator, Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) @ T4 , -40 ... 40 °C (-40 ... 104 °F) @ T6 , , Enclosure: carbon loaded, antistatic glass-fiber reinforced polyester (GRP)
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 265379 |
| Operating voltage | 250 V max. |
| Operating current | 16 A max. |
| Terminal capacity | 2.5 mm2 |
| Function | LED indicator |
| Color | red |
| Rated operating voltage | 20 ... 250 V AC |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Enclosure range | LCP |
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel socket cap head screws |
| Screws | M6 |
| Number | 4 |
| Tightening torque | 2 Nm |
| Degree of protection | IP66 |
| Cable entry face A: M20 quantity | 1 |
| Cable entry face A: M20 series | Stopping Plugs, Plastic |
| Cable entry face A: M20 type | SP.PE.M20.* |
| Cable entry face B: M20 quantity | 1 |
| Cable entry face B: M20 series | Cable Glands, Plastic |
| Cable entry face B: M20 type | CG.PEDS1.M20.* |
| Cable entry face B: M20 clamping range | 6 ... 12 mm |
| Defined entry area | face A and face B |
| Material: Enclosure | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) |
| Material: Finish | inherent color black |
| Material: Seal | one piece closed cell silicone |
| Mass | 1.5 kg |
| Dimensions: Height (A) | 110 mm |
| Dimensions: Width (B) | 110 mm |
| Dimensions: Depth (C) | 101 mm |
| Dimensions: External dimension with operating element (C1) | 123 mm |
| Dimensions: Mounting holes distance (G) | 110 mm |
| Dimensions: Mounting holes distance (H) | 78 mm |
| Dimensions: Mounting holes diameter (J) | 7 mm |
| Dimensions: Maximum external dimension (K) | 125 mm |
| Tightening torque: Nut torque at enclosure (SW1) | see datasheets of cable glands |
| Grounding | 2.5 mm2 grounding terminal |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) @ T4 -40 ... 40 °C (-40 ... 104 °F) @ T6 |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking | II 2 GD Ex db eb mb IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T4/T130 °C @ Ta +55 °C |
International approvals
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| Further approvals | on request: CCC, ECAS, IA |
Conformity
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Accessories
| Optional accessories | engraved traffolyte tag label engraved AISI 316L stainless steel tag label color in-fill stainless steel tag label |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet LCP1.LRLX.B.1 | |
| Brief Instructions - Control Units Series LCP* / LCS* (notified body: CML) | PDF · 134 kB |
Certificates (3)
| UK-Type Examination Certificate (CML 22UKEX2550X) | PDF · 270 kB |
| Europe CML ATEX (CML 16ATEX3009X) | PDF · 305 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 339 kB |
More Pepperl Fuchs parts
Available on requestGlass fiber optic LCE 18-2,3-2,0-K5Available on requestGlass fiber optic LCE 18-2,3-5,0-K2

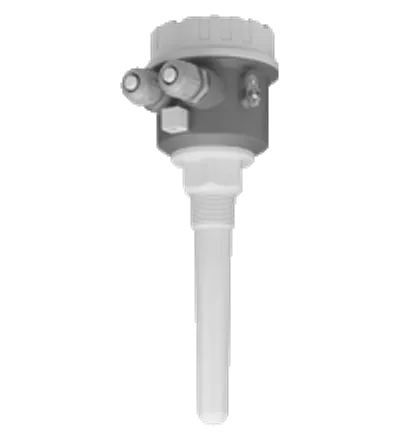

Available on requestCapacitive limit switch LCL1

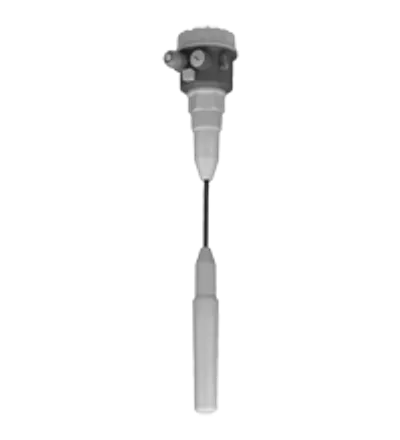

Available on requestCapacitive limit switch LCL2
Available on requestGlass fiber optic LCR 04-1,1-2,0-GAvailable on requestGlass fiber optic LCR 01-2,3-0,15-Z1Available on requestGlass fiber optic LCR 04-1,1-2,0-G

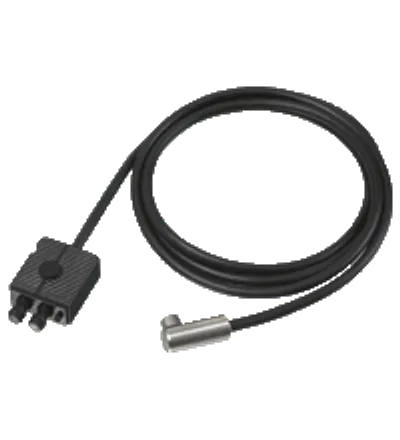

Available on requestGlass fiber optic LCR 04-1,6-0,5-WC 3
