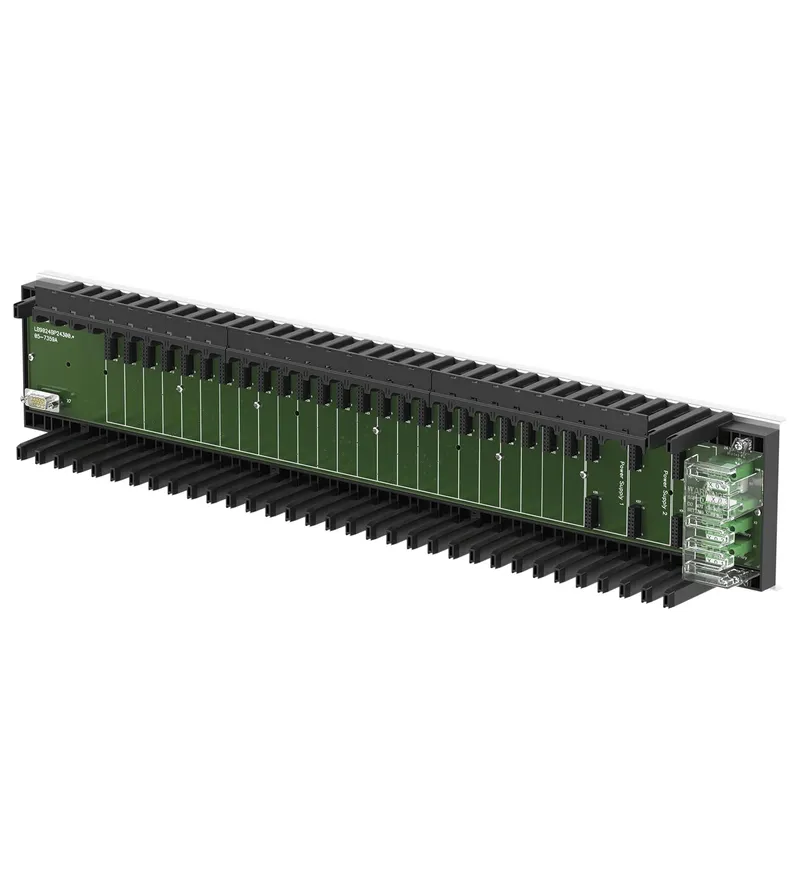

Pepperl Fuchs LB9024BP24300.2 – Extension Backplane
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LB9024BP24300.2 be shipped?
LB9024BP24300.2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB9024BP24300.2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB9024BP24300.2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9024BP24300.2, subject to availability and destination.
• Backplane for LB-System
• Fieldbus type determined by base backplane
• Max. 24 slots for I/O modules
• 5 SIL 2 output shutdown segments
• Redundancy (power supply)
• Mounting in Zone 2, Class I/Div.2 or in the safe area
Backplane for LB-System, Fieldbus type determined by base backplane, Max. 24 slots for I/O modules, 5 SIL 2 output shutdown segments, Number of modules: 24, Redundancy, Fieldbus type: PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU/TCP , depending on the base backplane, Redundancy
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70175195 |
| Suitable components | Backplane LB9022BP22320.2.E , LB9022BP22320.2 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Slots
| Supply | 3 |
| Output shut-down | 5 SIL2 output shutdown segments slots 25 ... 29, 30 ... 34, 35 ... 39, 40 ... 44, 45 ... 48 |
| I/O modules (single width) | max. 24 |
| I/O modules (dual width) | max. 12 |
Supply
| Maximum safe voltage Um | 60 V DC (SELV/PELV) |
| Input voltage range | 18 ... 32 V DC (SELV/PELV) U |
| Redundancy | yes |
Fieldbus connection
| Fieldbus type | PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU/TCP , depending on the base backplane |
| Redundancy | yes |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
Conformity
| Electromagnetic compatibility | NE 21 |
| Degree of protection | EN 60529 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) , 70 °C (non-Ex) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Altitude | max. 2000 m |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles frequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
Mechanical specifications
| Degree of protection | IP20 |
| Mass | approx. 1800 g |
| Dimensions | (W x H x D) 605 x 127 x 80 mm (23.8 x 5 x 3.15 inch) , without modules |
| Height | 127 mm |
| Width | 605 mm |
| Depth | 80 mm |
Data for application in connection with hazardous areas
| Certificate | BVS 16 ATEX E 089 X |
| Marking | II 3G Ex ec IIC T4 Gc |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-7:2015+A1:2018 |
International approvals
| IECEx approval | IECEx BVS 16.0047X |
| Approved for | Ex ec IIC T4 Gc |
General information
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
