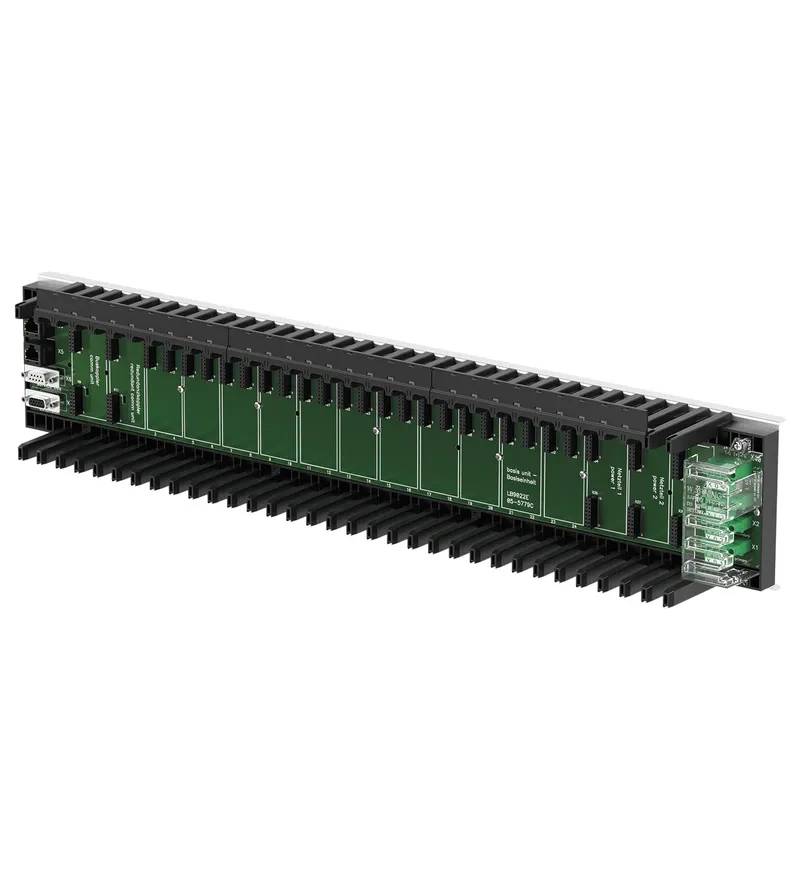

Pepperl Fuchs LB9022BP22320.2.E – Redundancy Base Backplane
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | LB (Zone 2, Class I/Div. 2) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can LB9022BP22320.2.E be shipped?
LB9022BP22320.2.E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LB9022BP22320.2.E in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LB9022BP22320.2.E and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LB9022BP22320.2.E, subject to availability and destination.
• Backplane for LB-System
• For MODBUS TCP/IP
• Max. 22 slots for I/O modules
• Redundancy (field bus and power supply)
• Mounting in Zone 2, Class I/Div.2 or in the safe area
Backplane for LB-System, For MODBUS TCP/IP, Max. 22 slots for I/O modules, Redundancy (field bus and power supply), Number of modules: 22, Redundancy, Fieldbus type: MODBUS TCP, Redundancy
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70175189 |
| Suitable components | Extension Backplane LB9024BP24300.2 Bus Coupler LB8111A* |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Slots
| Bus coupler | 2 |
| Supply | 3 |
| Output shut-down | SIL2 output shutdown Slots 3 ... 24 |
| I/O modules (single width) | max. 22 |
| I/O modules (dual width) | max. 11 |
Supply
| Maximum safe voltage Um | 60 V DC (SELV/PELV) |
| Input voltage range | 18 ... 32 V DC (SELV/PELV) U |
| Redundancy | yes |
Fieldbus connection
| Fieldbus type | MODBUS TCP |
| Redundancy | yes |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
Conformity
| Electromagnetic compatibility | NE 21 |
| Degree of protection | EN 60529 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) , 70 °C (non-Ex) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Altitude | max. 2000 m |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles frequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
Mechanical specifications
| Degree of protection | IP20 |
| Mass | approx. 2170 g |
| Dimensions | (W x H x D) 605 x 127 x 80 mm (23.8 x 5 x 3.15 inch) , without modules |
| Height | 127 mm |
| Width | 605 mm |
| Depth | 80 mm |
Data for application in connection with hazardous areas
| Certificate | BVS 16 ATEX E 089 X |
| Marking | II 3G Ex ec IIC T4 Gc |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-7:2015+A1:2018 |
International approvals
| IECEx approval | IECEx BVS 16.0047X |
| Approved for | Ex ec IIC T4 Gc |
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet LB9022BP22320.2.E | |
| Hardware Manual LB-Remote-I/O-System | PDF · 7.2 MB |
| Instruction Manual | PDF · 170 kB |
Certificates (5)
| DNV Marine (TAA0000034) | PDF · 97 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 335 kB |
| Europe DEKRA EXAM ATEX Category 3 G (BVS 16 ATEX E 089 X) | PDF · 1.4 MB |
| Brasil TUV Rheinland Brazil (TÜV 18.0040 X) | PDF · 1.2 MB |
| DEKRA EXAM ATEX Category 3 G (BVS 16 ATEX E 089 X) | PDF · 3.5 MB |
More Pepperl Fuchs parts

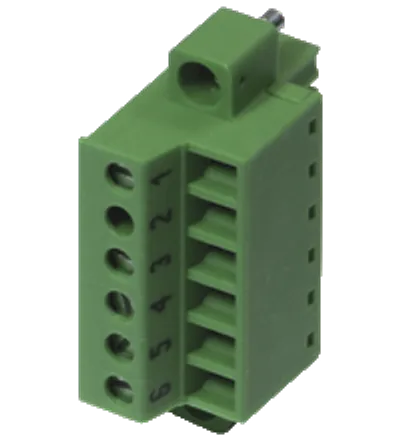

Available on requestTerminal Block LB9017A
Available on requestTerminal Block LB9018A

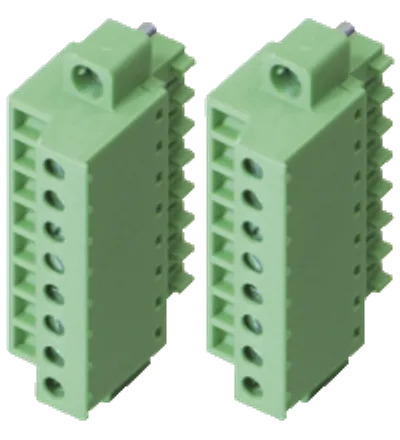

Available on requestTerminal Block LB9019A

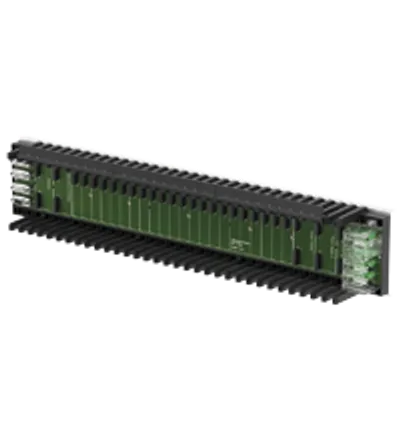

Available on requestRedundancy Base Backplane LB9022BP22320.2

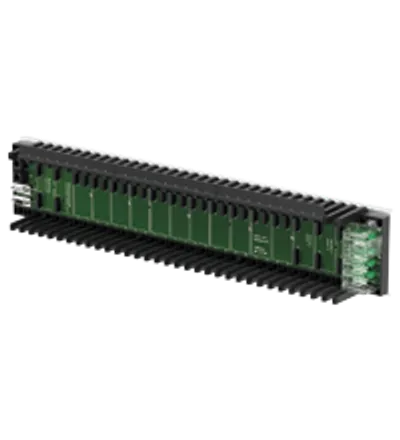

Available on requestRedundancy Base Backplane LB9022BP22320.0.EAvailable on requestRedundancy Base Backplane LB9022BP22320.1

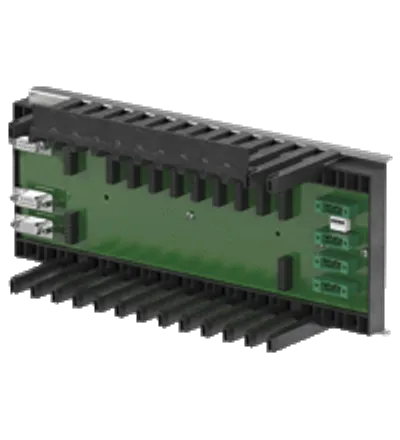

Available on requestBase Backplane LB9023BP08110.2

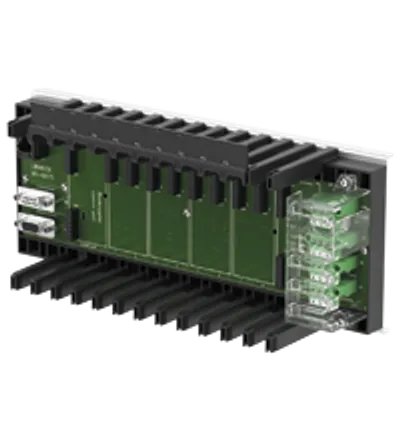

Available on requestBase Backplane LB9023BP08110.2.E
