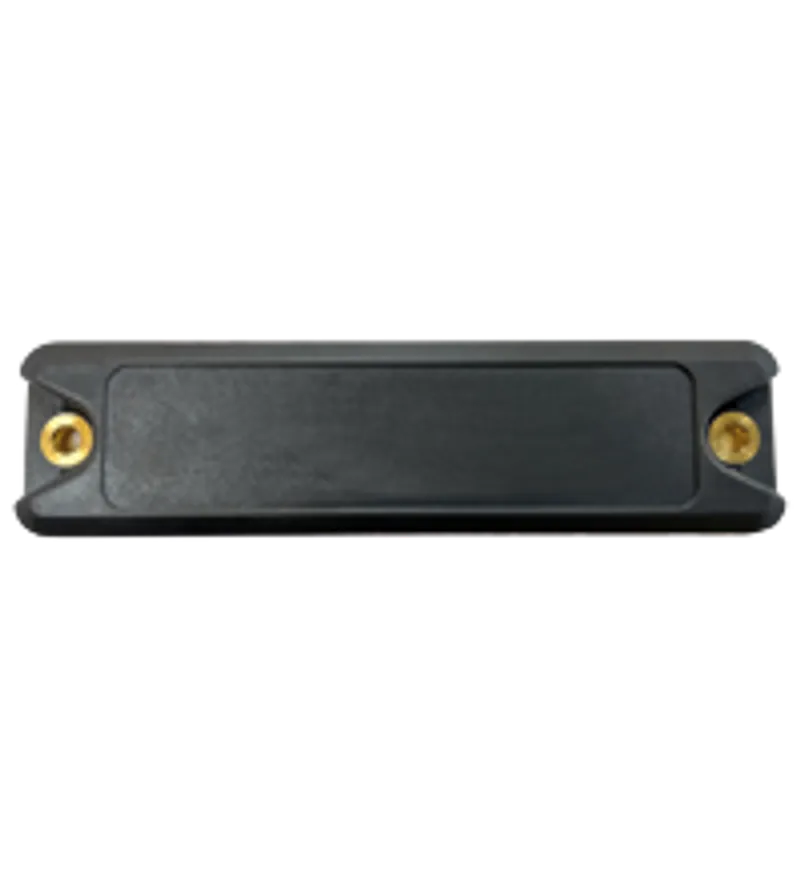

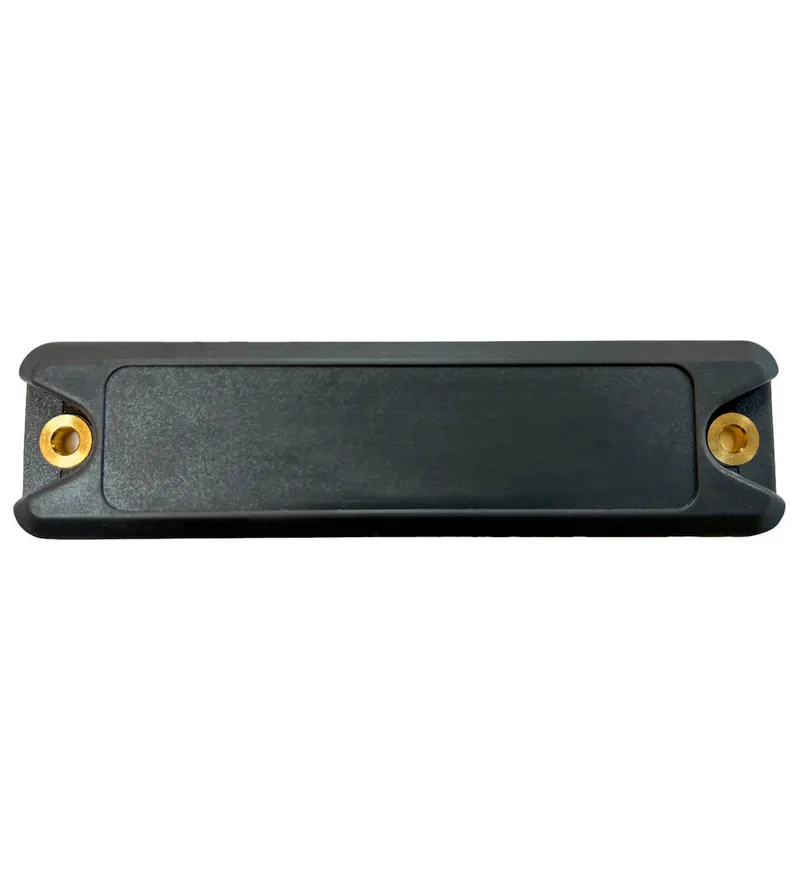

Pepperl Fuchs IUC86-F251-M-FR2 10pcs

RFID Transponder

MPN
IUC86-F251-M-FR2 10pcs
Category
RFID Tags
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs IUC86-F251-M-FR2 10pcs?

Operating frequency 902 ... 928 MHz

Complies with EPC Gen2 (ISO/IEC 18000-63)

For general purpose applications

Data carrier for standard applications

Specifications

General specifications

Order code (Pepperl+Fuchs part number)70188752
Operating frequency902 ... 928 MHz
Polarizationlinear
LifecycleActive (current Pepperl+Fuchs product)

Memory

Chip TypeM750 (Impinj)
Memory Bank 00 (Reserved)64 Bit
Memory Bank 01 (EPC/UII)96 Bit
Memory Bank 10 (TID)96 Bit
Memory Bank 11 (User memory)32 Bit
Read cyclesunlimited
Write cycles100000
Data retention period10 years

Directive conformity

Radio equipment: Directive 2014/53/EUEN 302208
RoHS: Directive 2011/65/EU (RoHS)IEC/EN 63000

Standard conformity

Degree of protectionEN 60529
RFIDISO/IEC 18000-63

Ambient conditions

Ambient temperature-40 ... 85 °C (-40 ... 185 °F)
Storage temperature-40 ... 85 °C (-40 ... 185 °F)
Shock and impact resistance3 ft (1m) to concrete up to 200 cycles

Mechanical specifications

Degree of protectionIP68
Material: HousingPolymer
Installation: On metalyes
Installation: In airyes
Mass17.8 g

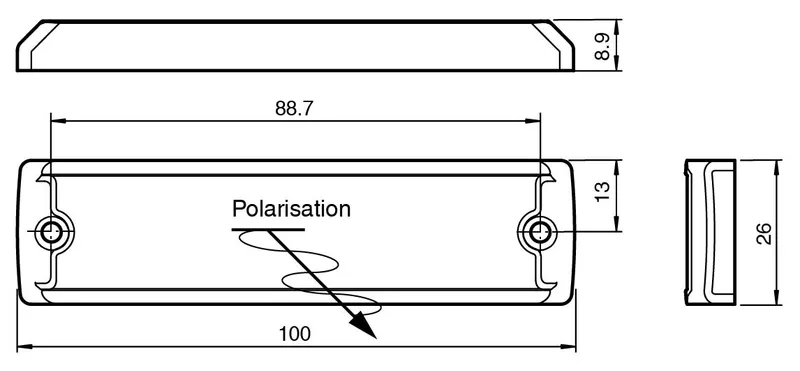

Dimensions: Height8.9 mm
Dimensions: Width26 mm
Dimensions: Length100 mm
Construction typeRectangular type
NotePackaging unit, 10-piece

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Certificates (1)
