Pepperl Fuchs IUC86-F251-M-FR1 10pcs – RFID Transponder
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | RFID Tags |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can IUC86-F251-M-FR1 10pcs be shipped?
IUC86-F251-M-FR1 10pcs is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IUC86-F251-M-FR1 10pcs in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IUC86-F251-M-FR1 10pcs and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IUC86-F251-M-FR1 10pcs, subject to availability and destination.
• Operating frequency 865 … 868 MHz
• Complies with EPC Gen2 (ISO/IEC 18000-63)
• For general purpose applications
Data carrier for standard applications
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70188751 |
| Operating frequency | 865 ... 868 MHz |
| Polarization | linear |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Memory
| Chip Type | M750 (Impinj) |
| Memory Bank 00 (Reserved) | 64 Bit |
| Memory Bank 01 (EPC/UII) | 96 Bit |
| Memory Bank 10 (TID) | 96 Bit |
| Memory Bank 11 (User memory) | 32 Bit |
| Read cycles | unlimited |
| Write cycles | 100000 |
| Data retention period | 10 years |
Directive conformity
| Radio equipment: Directive 2014/53/EU | EN 302208 |
| RoHS: Directive 2011/65/EU (RoHS) | IEC/EN 63000 |
Standard conformity
| Degree of protection | EN 60529 |
| RFID | ISO/IEC 18000-63 |
Ambient conditions
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Shock and impact resistance | 3 ft (1m) to concrete up to 200 cycles |
Mechanical specifications
| Degree of protection | IP68 |
| Material: Housing | Polymer |
| Installation: On metal | yes |
| Installation: In air | yes |
| Mass | 17.8 g |
| Dimensions: Height | 8.9 mm |
| Dimensions: Width | 26 mm |
| Dimensions: Length | 100 mm |
| Construction type | Rectangular type |
| Note | Packaging unit, 10-piece |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet IUC86-F251-M-FR1 10pcs |
Certificates (1)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 229 kB |
More Pepperl Fuchs parts

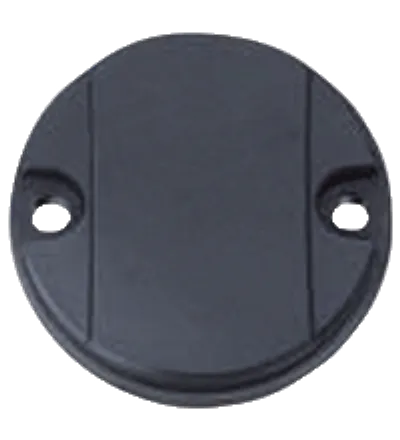

Available on requestRFID Transponder IUC77-50-FR2 10pcs
