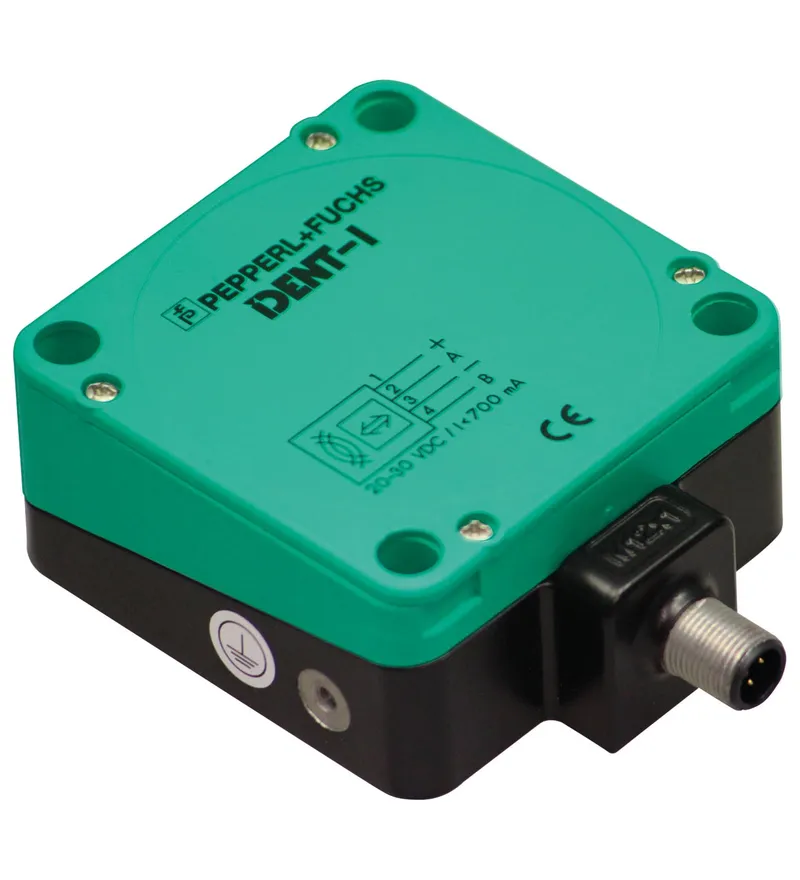

Pepperl Fuchs IPT-FP-R4-V1 – RFID read/write device
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | RFID Read/Write Devices |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can IPT-FP-R4-V1 be shipped?
IPT-FP-R4-V1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IPT-FP-R4-V1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IPT-FP-R4-V1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IPT-FP-R4-V1, subject to availability and destination.
• Connection via V1 (M12 x 1) plug connection
• Dual-LED for function display
• Degree of protection IP67
LF RFID read/write device
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70200748 |
| Operating frequency | 125 kHz |
| Transfer rate | 2 kBit/s |
| Sensing range: Read distance | 0 ... 100 mm |
| Sensing range: Write distance | 0 ... 80 mm |
| Sensing range: Width | max. 80 mm |
| Operating distance | maximum: 100 mm |
| MTBF | 350 a (Operation at +40 °C) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED green/yellow | green: power ongreen flashing: read/write attempt performedyellow: data carrier detected |
Electrical specifications
| Rated operating voltage | 18 ... 30 V DC , limited power source (EN 60950) Ue |
| Power consumption | ≤ 1.2 W P0 |
Interface
| Physical | RS-485 point-to-point connection |
| Protocol | ASCII |
| Transfer rate | 1200, 2400, 4800, 9600, 19200, 38400 (default) Bit/s |
| Cable length | ≤ 3 m |
Directive conformity
| Radio equipment: Directive 2014/53/EU | EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364 |
| RoHS: Directive 2011/65/EU (RoHS) | IEC/EN 63000 |
Standard conformity
| Degree of protection | EN 60529 |
| RFID | ISO/IEC 18000-2 |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | connector M12 x 1 |
| Material: Housing | PBT |
| Material: Base | diecast aluminum |
| Material: Encapsulation compound | Fermadur |
| Installation: Distance between two heads | ≥ 550 mm |
| Mass | approx. 380 g |

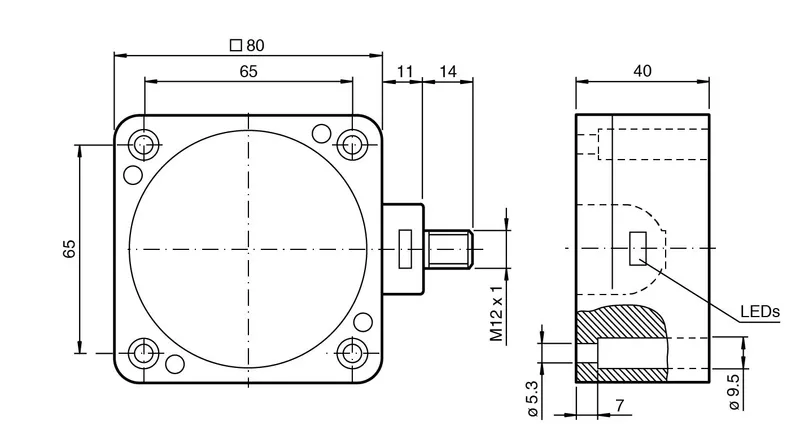

| Dimensions: Height | 40 mm |
| Dimensions: Width | 80 mm |
| Dimensions: Length | 113 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet IPT-FP-R4-V1 | |
| Manual | PDF · 1.0 MB |
CAD & dimension drawings
| 3-D model (STEP) IQT1-FP-R4-V1 | STP · 103 kB |
Certificates (2)
| Simplified EU Declaration of Conformity | PDF · 62 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 225 kB |
More Pepperl Fuchs parts

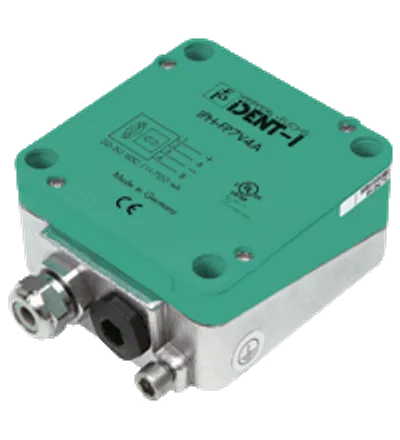

Available on requestRFID read/write device IPH-FP7V4A
Available on requestRFID read/write device IPH-HH50

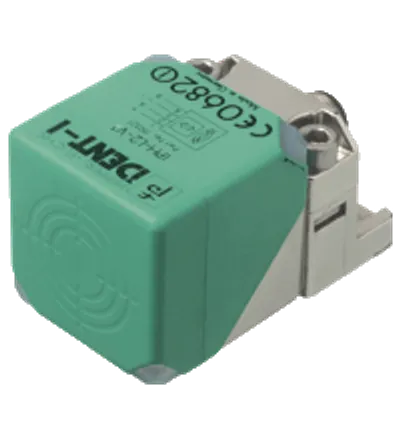

Available on requestRFID read/write device IPH-L2-V1

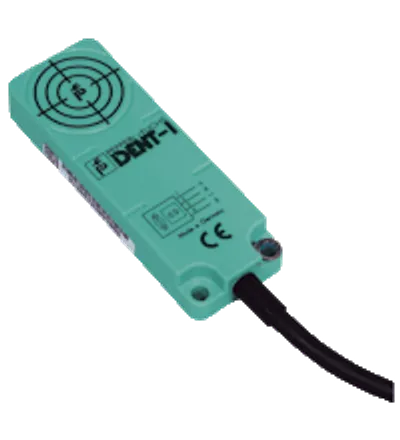

Available on requestRFID read/write device IPT-F61-R4-V1

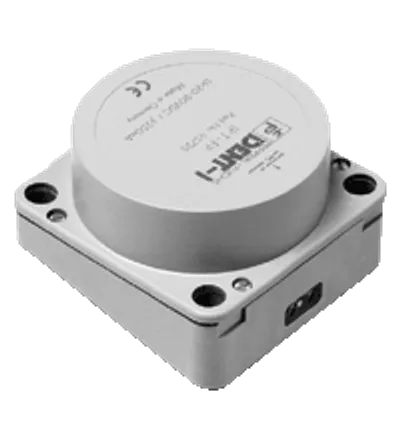

Available on requestRead/write station IPT1-FP

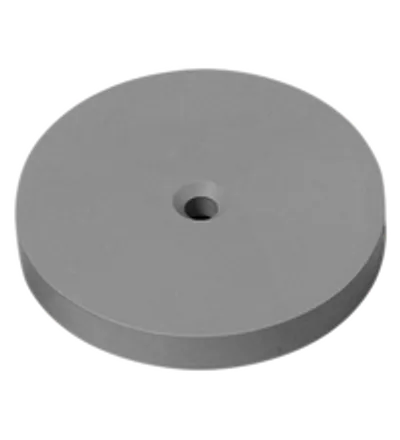

Available on requestFlat housing IPZ-MH50Available on requestFlat housing IPZ-MH50 100pcs

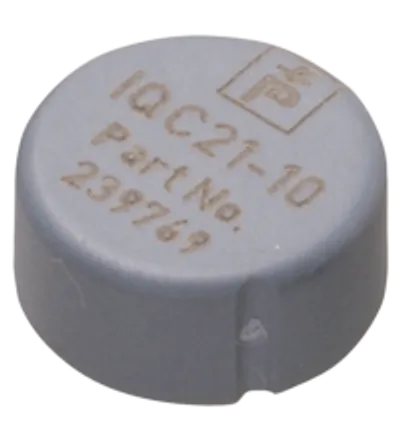

Available on requestRFID Transponder IQC21-10 10pcs
