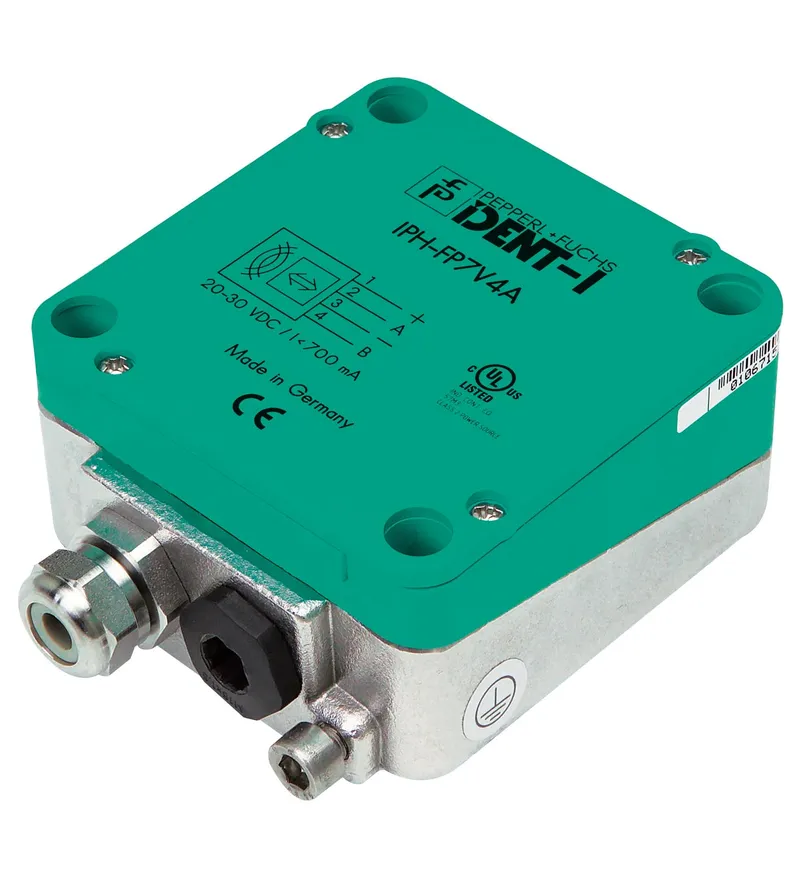

Pepperl Fuchs IPH-FP7V4A – RFID read/write device
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | RFID Read/Write Devices |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can IPH-FP7V4A be shipped?
IPH-FP7V4A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IPH-FP7V4A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IPH-FP7V4A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IPH-FP7V4A, subject to availability and destination.
• Dual-LED for function display
• Stainless steel housing
• Resistant against cleaning material
• Connection via terminal compartment
• Degree of protection IP67 / IP68 / IP69K
LF RFID read/write device for IDENTControl
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 196214 |
| Operating frequency | 125 kHz |
| Transfer rate | 2 kBit/s |
| Sensing range: Read distance | 0 ... 100 mm |
| Sensing range: Write distance | 0 ... 80 mm |
| Sensing range: Width | max. 80 mm |
| UL File Number | E87056 |
| MTBF | 350 a (Operation at +40 °C) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED green/yellow | green: power ongreen flashing: read/write attempt performedyellow: data carrier detected |
Electrical specifications
| Power consumption | ≤ 1.2 W P0 |
| Supply | from the IDENTControl |
Directive conformity
| Radio equipment: Directive 2014/53/EU | EN 301489-1 EN 301489-3 EN 300330 EN 62368-1 EN 50364 |
| RoHS: Directive 2011/65/EU (RoHS) | IEC/EN 63000 |
Standard conformity
| Degree of protection | EN 60529 |
| RFID | ISO/IEC 18000-2 |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP69K |
| Connection | terminal compartment, ≤ 2.5 mm2 conductor csa |
| Material: Housing | PBT |
| Material: Base | stainless steel V4A |
| Material: Encapsulation compound | Fermadur |
| Installation: Distance between two heads | Multiplex on: ≥ 100 mm Multiplex off: ≥ 550 mm |
| Mass | approx. 700 g |

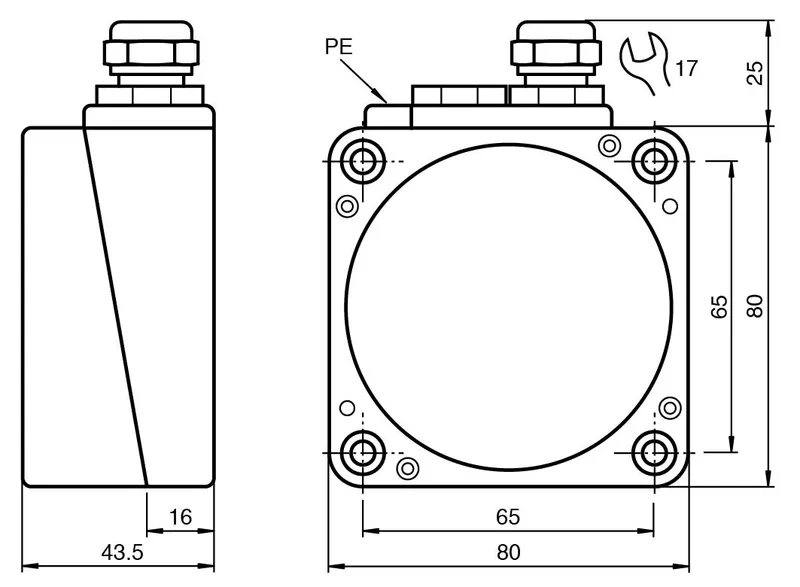

| Dimensions: Height | 43.5 mm |
| Dimensions: Width | 80 mm |
| Dimensions: Length | 105 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet IPH-FP7V4A | |
| Manual Read / Write Ranges and Passing Speeds RFID | PDF · 3.7 MB |
CAD & dimension drawings
| 3-D model (STEP) IQH1-FP7V4A | STP · 1.9 MB |
Certificates (4)
More Pepperl Fuchs parts
Available on requestRFID read/write device IPH-F61-V1

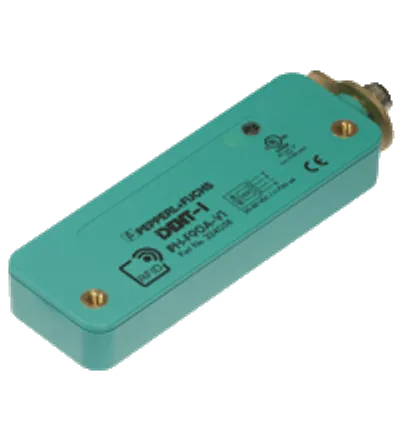

Available on requestRFID read/write device IPH-F90A-V1

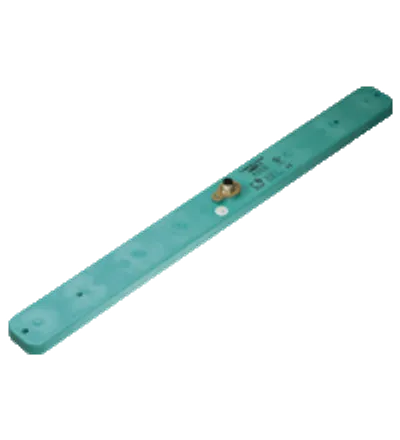

Available on requestRFID read/write device IPH-F97-V1
