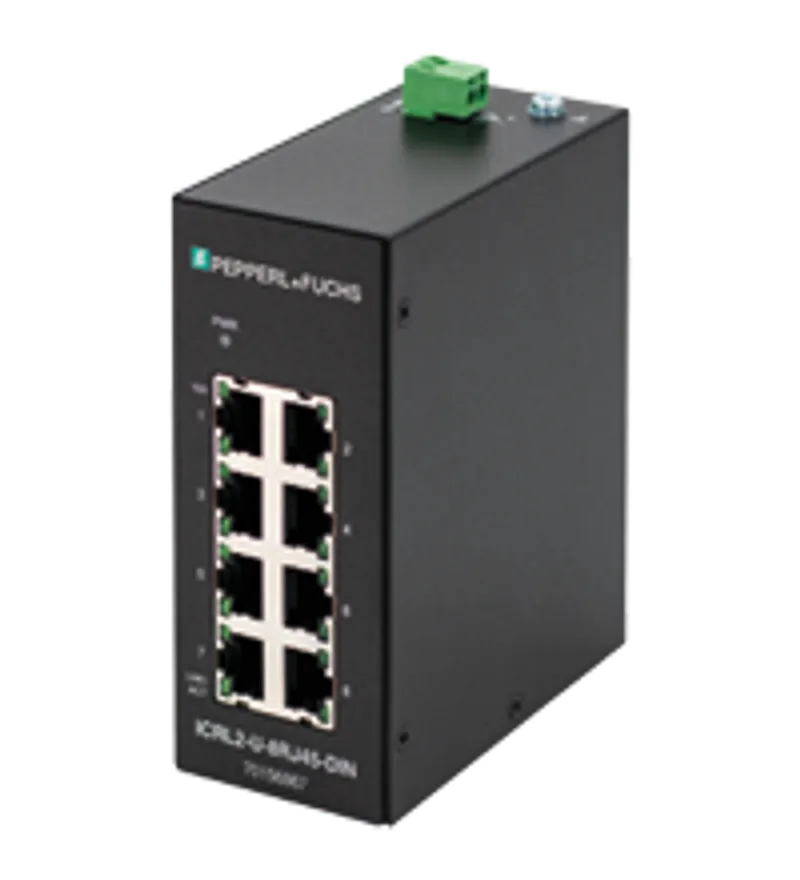

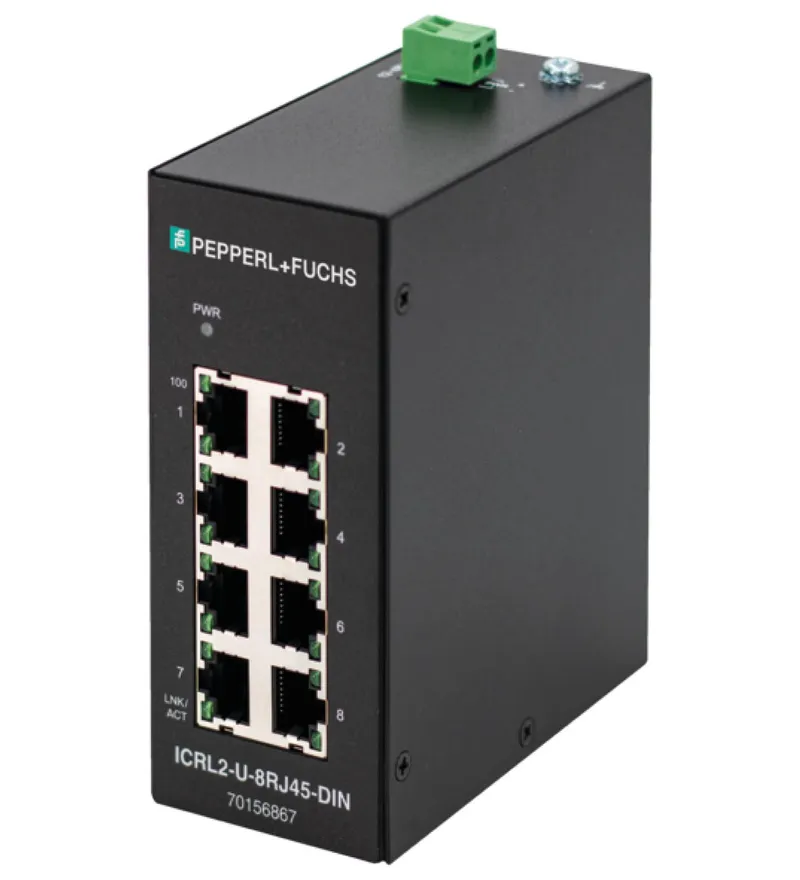

Pepperl Fuchs ICRL2-U-8RJ45-G-DIN – Ethernet switch unmanaged
MPN: ICRL2-U-8RJ45-G-DIN · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Serial Gateways |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ICRL2-U-8RJ45-G-DIN be shipped?
ICRL2-U-8RJ45-G-DIN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ICRL2-U-8RJ45-G-DIN in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ICRL2-U-8RJ45-G-DIN and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ICRL2-U-8RJ45-G-DIN, subject to availability and destination.
• Rugged housing for use in harsh environments
• Suitable for PROFINET IO and EtherNet/IP
• Extended temperature range
• Eight - Gigabit RJ45 ports
Ethernet unmanaged switch with 8 RJ45 ports and extended temperature range
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70203090 |
| UL File Number | E223772 |
| MTBF | 70.6 a |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ethernet Interface
| Number of ports | 8 |
| Auto-MDI(-X) | yes |
| Autonegotiation | yes |
| Ethernet Interface | Industrial Ethernet |
| Transfer rate | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network performance | Jumbo frame size: 1552 bytes Broadcast storm protection for broadcast packet |
| Cable type | Category 5e or better |
| Switch properties: MAC address table size | 4K |
| Standards: IEEE 802.3 10BASE-T | yes |
| Standards: IEEE 802.3u 100BASE-TX | yes |
| Standards: IEEE 802.3x Flow Control and Back-pressure | yes |
| Standards: IEEE 802.3ab 1000BASE-T | yes |
Indicators/operating means
| LED indication | see manual |
Electrical specifications
| Rated operating voltage | 9 ... 57 V DC Ue |
| Power consumption | 5 W |
| General information | Current overload protection, Power input polarity protection Redundant power |
| Nominal voltage | 24 V DC UN |
| Current consumption | typ. 7 mA |
Interface 1
| Physical | RJ45 |
| Transfer rate | 10/100/1000 Mbps |
Inputs/Outputs
| Number/Type | 8 x RJ45 |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 55011:2016-04 EN 55011/A1:2017-04 EN 55011/A11:2020-03 EN 55032:2015-07 EN 55032/A11:2020-03 EN 55035:2017-07 EN 55035/A11:2020-05 |
Standard conformity
| Electrical safety | CSA C22.2 No. 61010-1-12 UL 61010-1, IEC 61010-2-201 |
| Emitted interference | EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32 |
| Noise immunity | EN 55035:2017/A11:2020 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | IEC 60068-2-6 |
Ambient conditions
| Ambient temperature | -40 ... 75 °C (-40 ... 167 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | max. 95 % |
| Altitude | 0 ... 3048 m |
Mechanical specifications
| Degree of protection | IP30 |
| Connection | Power Supply Terminal Block Ethernet 8 x RJ45 |
| Material: Housing | Aluminum |
| Mass | 480 g |

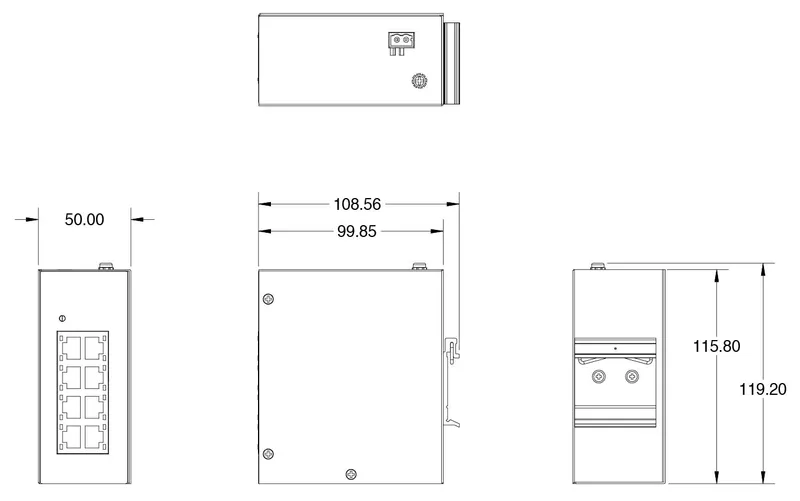

| Dimensions: Height | 115.8 mm |
| Dimensions: Width | 50 mm |
| Dimensions: Length | 99.6 mm |
| Construction type | Cabinet module |
| Mounting | DIN rail or direct panel mounting |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet ICRL2-U-8RJ45-G-DIN | |
| Installation Instructions | PDF · 2.4 MB |
CAD & dimension drawings
| 3-D model (STEP) ICRL2-U-8RJ45-G-DIN | STP · 7.1 MB |
Certificates (2)
| Canada, USA UL (CoC E223772) | PDF · 230 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 574 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts
Available on requestEthernet switch unmanaged gigabit ICRL2-U-16RJ45-G-DINMPN: ICRL2-U-16RJ45-G-DIN · Pepperl Fuchs
Price on request
Request a quote

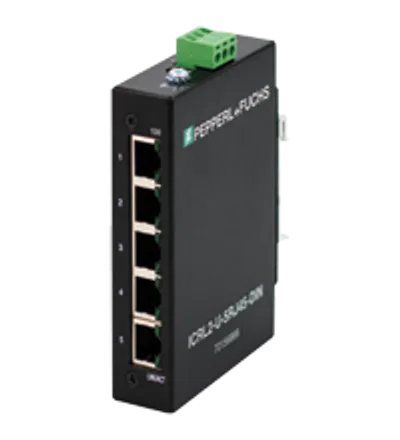

Available on requestEthernet switch unmanaged ICRL2-U-5RJ45-DINMPN: ICRL2-U-5RJ45-DIN · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestEthernet switch unmanaged ICRL2-U-5RJ45-G-DINMPN: ICRL2-U-5RJ45-G-DIN · Pepperl Fuchs
Price on request
Request a quote
Available on requestEthernet switch unmanaged ICRL2-U-8RJ45-DINMPN: ICRL2-U-8RJ45-DIN · Pepperl Fuchs
Price on request
Request a quote
Available on requestBreakout Box ICRPB-16DB25F-PMMPN: ICRPB-16DB25F-PM · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestBreakout Box ICRPB-16DB25M-S-PMMPN: ICRPB-16DB25M-S-PM · Pepperl Fuchs
Price on request
Request a quote

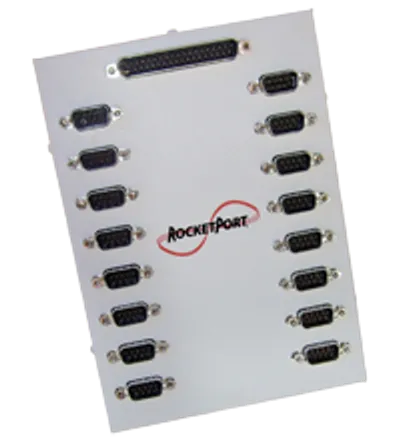

Available on requestBreakout Box ICRPB-16DB9M-PMMPN: ICRPB-16DB9M-PM · Pepperl Fuchs
