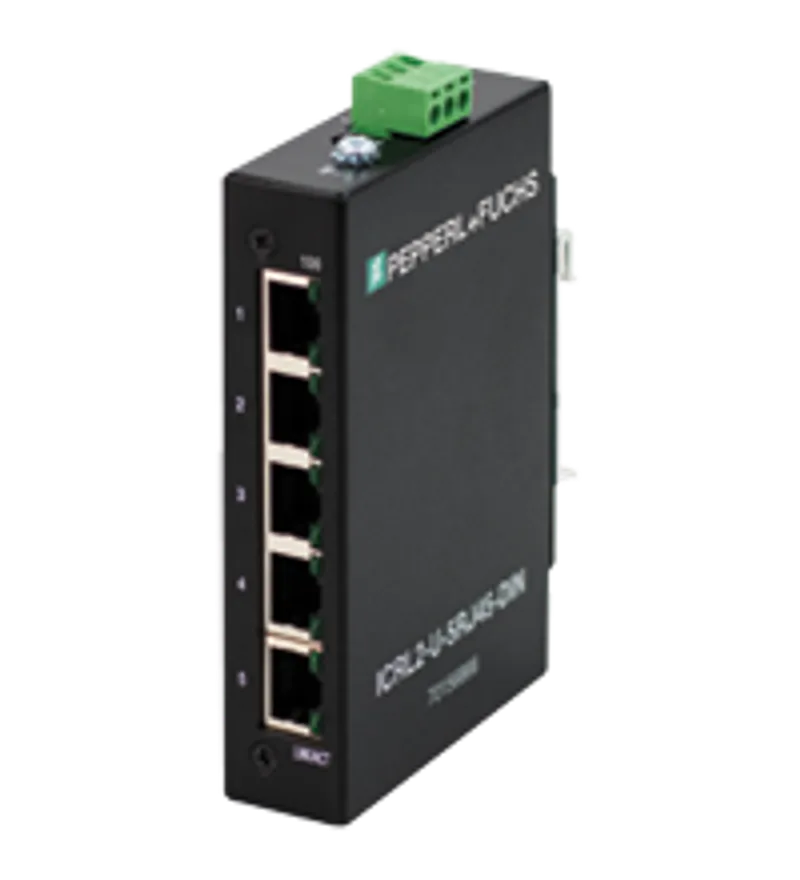

Ethernet switch unmanaged ICRL2-U-5RJ45-G-DIN — photo 1 of 4

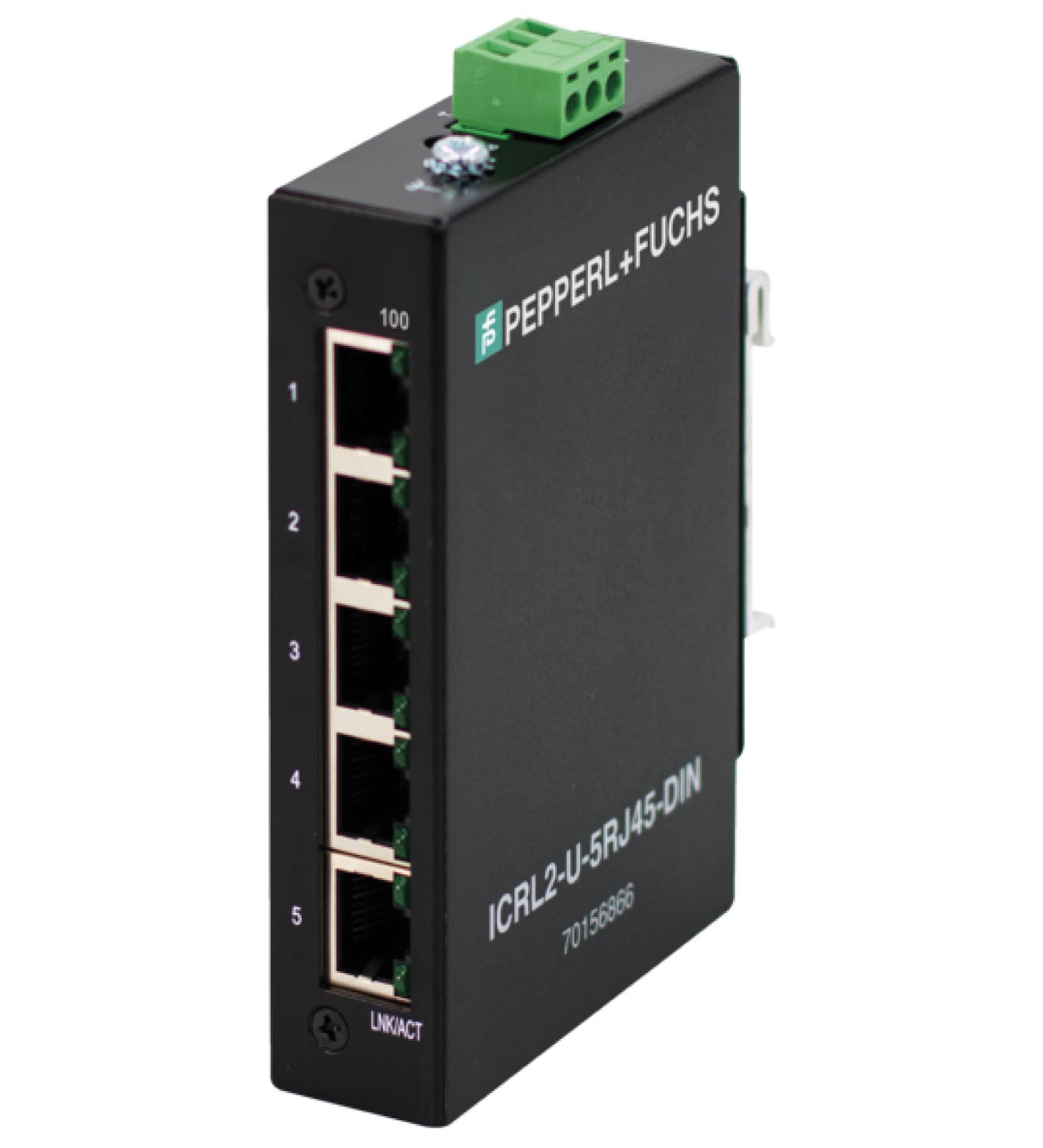

Ethernet switch unmanaged ICRL2-U-5RJ45-G-DIN — photo 2 of 4

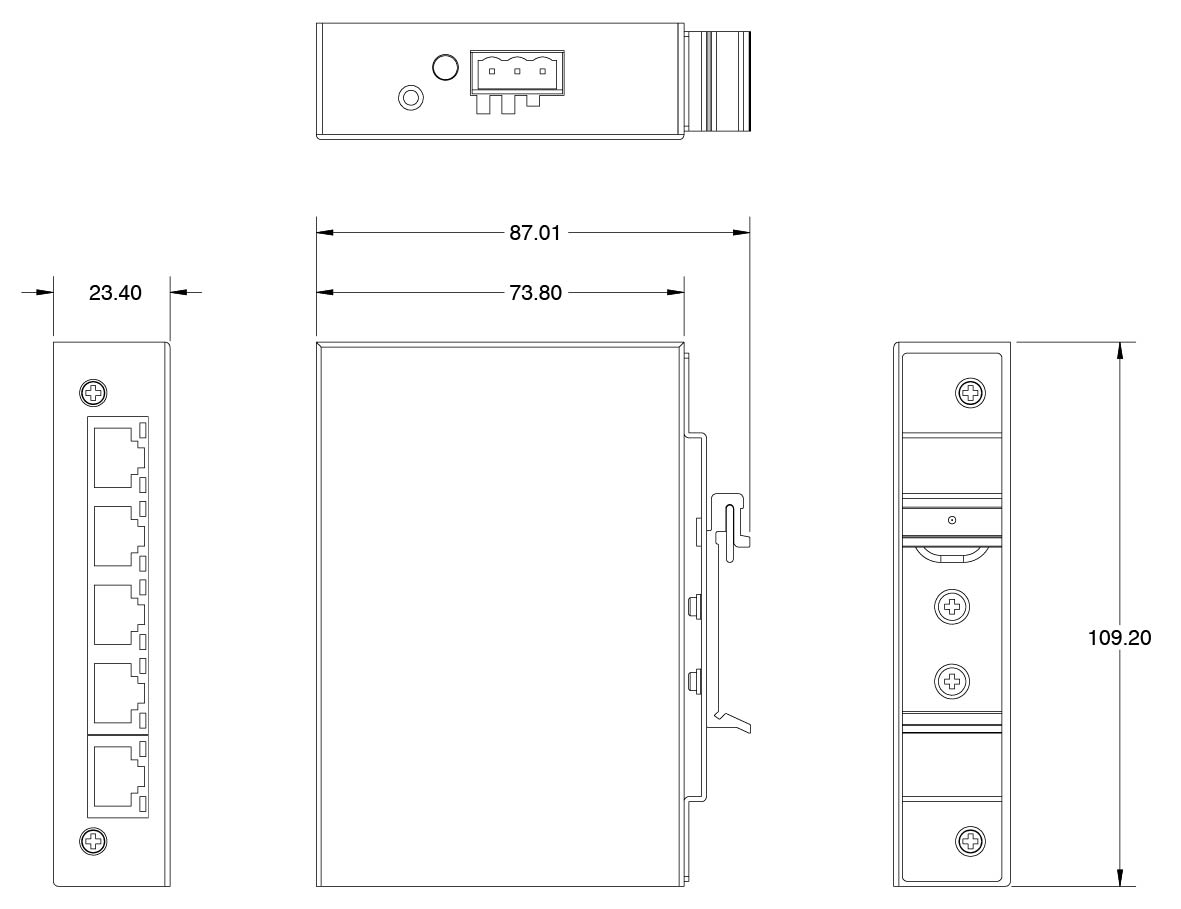

Ethernet switch unmanaged ICRL2-U-5RJ45-G-DIN — photo 3 of 4

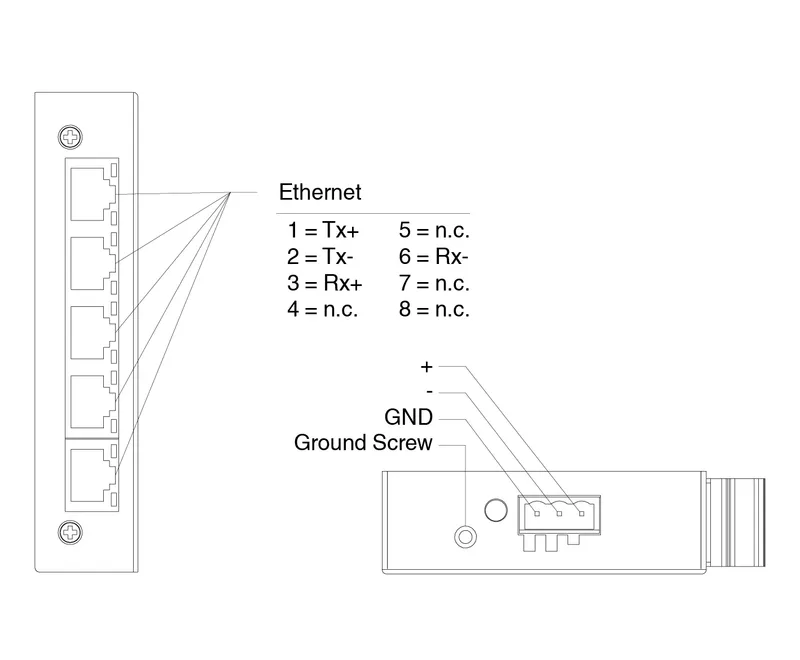

Ethernet switch unmanaged ICRL2-U-5RJ45-G-DIN — photo 4 of 4

Available on request

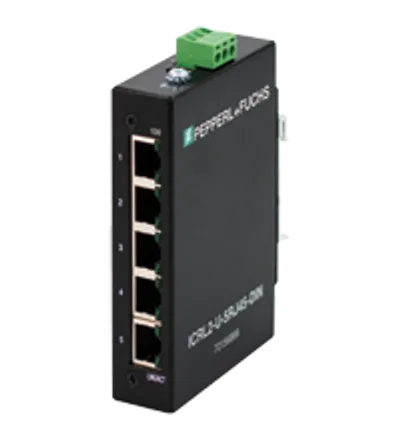

Pepperl Fuchs ICRL2-U-5RJ45-G-DIN – Ethernet switch unmanaged

MPN: ICRL2-U-5RJ45-G-DIN · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ICRL2-U-5RJ45-G-DIN be shipped?

ICRL2-U-5RJ45-G-DIN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ICRL2-U-5RJ45-G-DIN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ICRL2-U-5RJ45-G-DIN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ICRL2-U-5RJ45-G-DIN, subject to availability and destination.

• Rugged housing for use in harsh environments

• Suitable for PROFINET IO and EtherNet/IP

• Extended temperature range

• Five - Gigabit RJ45 ports

Ethernet unmanaged switch with 5 RJ45 ports and extended temperature range

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70203089
UL File Number	E223772
MTBF	67.9 a
Lifecycle	Active (current Pepperl+Fuchs product)

Ethernet Interface

Number of ports	5
Auto-MDI(-X)	yes
Autonegotiation	yes
Ethernet Interface	Industrial Ethernet
Transfer rate	10BASE-T, 100BASE-TX, 1000BASE-T
Network performance	Jumbo frame size: 1552 bytes Broadcast storm protection for broadcast packet
Cable type	Category 5e or better
Switch properties: MAC address table size	2K
Standards: IEEE 802.3 10BASE-T	yes
Standards: IEEE 802.3u 100BASE-TX	yes
Standards: IEEE 802.3x Flow Control and Back-pressure	yes
Standards: IEEE 802.3ab 1000BASE-T	yes

Indicators/operating means

LED indication

see manual

Electrical specifications

Rated operating voltage	12 ... 48 V DC Ue
Power consumption	3 W
General information	Current overload protection, Power input polarity protection
Nominal voltage	24 V DC UN
Current consumption	typ. 6 mA

Interface 1

Physical	RJ45
Transfer rate	10/100/1000 Mbps

Inputs/Outputs

Number/Type

5 x RJ45

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

EN 55011:2016-04 EN 55011/A1:2017-04 EN 55011/A11:2020-03 EN 55032:2015-07 EN 55032/A11:2020-03 EN 55035:2017-07 EN 55035/A11:2020-05

Standard conformity

Electrical safety	CSA C22.2 No. 61010-1-12 UL 61010-1, IEC 61010-2-201
Emitted interference	EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32
Noise immunity	EN 55035:2017/A11:2020
Shock resistance	EN 60068-2-27
Vibration resistance	IEC 60068-2-6

Ambient conditions

Ambient temperature	-40 ... 75 °C (-40 ... 167 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	max. 95 %
Altitude	0 ... 3048 m

Mechanical specifications

Degree of protection	IP30
Connection	Power Supply Terminal Block Ethernet 5 x RJ45
Material: Housing	Aluminum
Mass	183 g
Dimensions: Height	109.2 mm
Dimensions: Width	23.4 mm
Dimensions: Length	73.8 mm
Construction type	Cabinet module
Mounting	DIN rail or direct panel mounting
