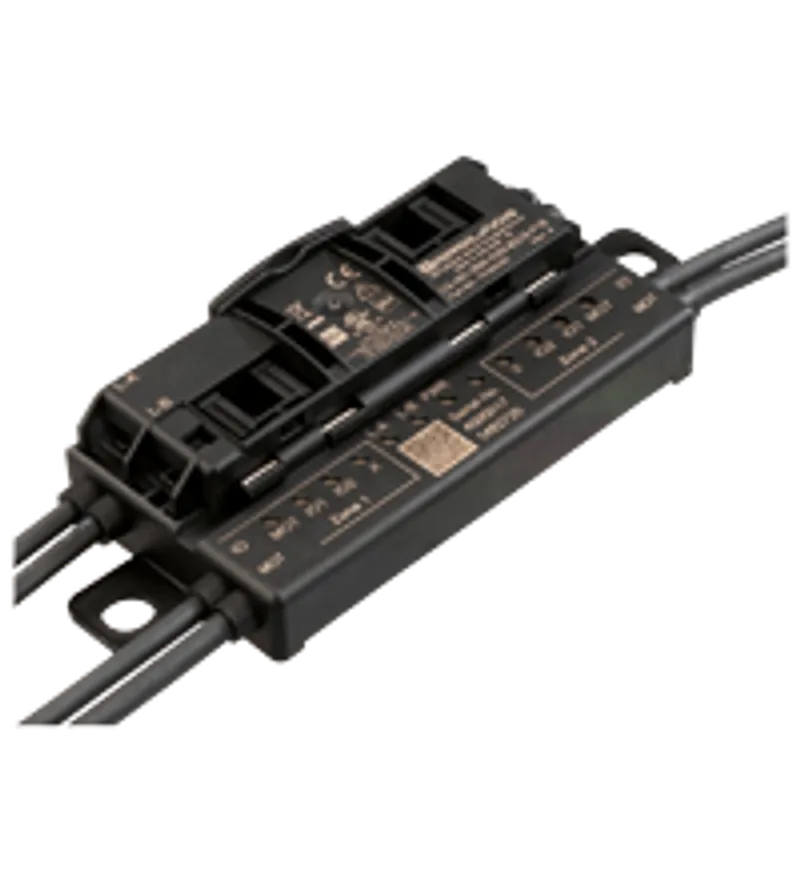

Motor Roller System Module ICA-4IO-2M4-G20-B22A-P18 — photo 1 of 3

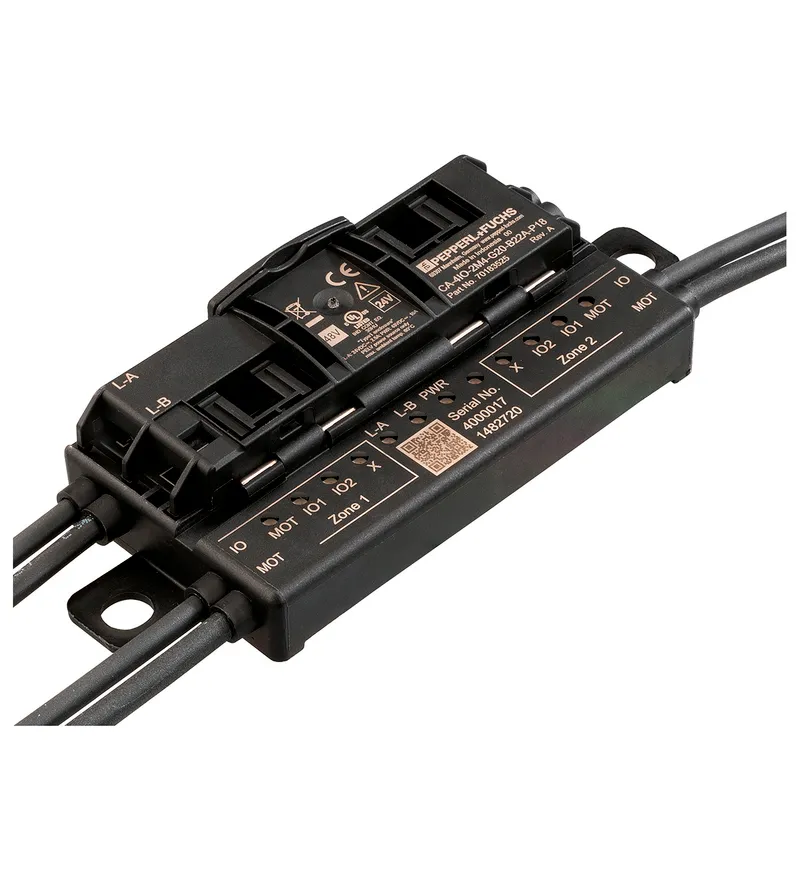

Motor Roller System Module ICA-4IO-2M4-G20-B22A-P18 — photo 2 of 3

Motor Roller System Module ICA-4IO-2M4-G20-B22A-P18 — photo 3 of 3

Available on request

Pepperl Fuchs ICA-4IO-2M4-G20-B22A-P18 – Motor Roller System Module

MPN: ICA-4IO-2M4-G20-B22A-P18 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Serial Gateways
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ICA-4IO-2M4-G20-B22A-P18 be shipped?

ICA-4IO-2M4-G20-B22A-P18 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ICA-4IO-2M4-G20-B22A-P18 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ICA-4IO-2M4-G20-B22A-P18 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ICA-4IO-2M4-G20-B22A-P18, subject to availability and destination.

• Connections for 24 V or 48 V DC roller motors

• Inputs for 2- and 3-wire sensors

• Electronic PNP outputs

• Function indicator for motors, inputs and outputs

• Mounting directly in the support profile

G20 MDR system module with 4 digital inputs/outputs and 2 connections for MDRs

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70183525
Compatible roller motors	Interroll EC310 Interroll EC5000 24 V AI (20 W / 35 W / 50 W) Interroll EC5000 48 V AI (20 W / 35 W / 50 W) Rulmeca BL3 Itoh Denki PM500XK Itoh Denki PM500XC PULSEROLLER Senergy-IDC MTA MRD50 (A interface, 24 V to 40 W) MTA MRD50 (A interface, 48 V to 44 W) WWL R-*-H + CE23XX Conveline RM50 Mambaroll Built-In Drive Roller 50 UniDrive ONE
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

LED indication

Zone 1: MOT, IO1, IO2, XZone 2: MOT, IO1, IO2, XL-A, L-B, PWR

Electrical specifications

Auxiliary voltage	18 ... 56 V DC PELV Max. 10 A Current limitation of the supply max. 30 A For UL: Z-type miniature circuit breaker in accordance with UL 1077, max. 20 A, required UPWR
Operating voltage	15 ... 30 V DC, PELV Powered from ICE-EP2-G20-4B22A-P17 UB
No-load supply current	≤ 40 mA I0
Operating current	max. 3 A IB

Interface

Interface type

proprietary system interface

Input

Number/Type	4 Inputs for 3-wire sensors (PNP), DC (Zone 1: IO1, IO2; Zone 2: IO1, IO2)
Supply	from G20 Motor Roller System Module via L-A
Current loading capacity	200 mA per connection in Zone 1 (IO1, IO2) and Zone 2 (IO1, IO2) , overload and short-circuit protected
Input current	≤ 5 mA (limited internally)
Switching point	Type 3 according to IEC 61131-2

Output 1

Number/Type	4 electronic outputs, PNP (Zone 1:IO1, IO2; Zone 2: IO1, IO2), overload proof and short-circuit proof
Supply	from G20 Motor Roller System Module via L-A
Current	200 mA per output

Output 2

Number/Type	2 outputs for DC roller motors (Zone 1: MOT, Zone 2: MOT)
Supply	via UPWR
Current loading capacity	3.5 A (continuous), 5 A (Total current (continuous) max. 7 A per device
Overload protection	Fuse 4 A, I2t = 122.5 A2s per motor
Signal level	Speed: US = 0.3 … 10 V in no-load operation Ri = 5.6 kΩ, RLOAD ≥ 35 kΩ Direction of rotation: Digital output PNP UD low = high resistance UD high ≥ 12 V Ri = 5.6 kΩ, RLOAD ≥ 15 kΩ
Fault level	Motor fault: Digital input NPN 0 (no error) ≥ 125 µA 1 (error) ≤ 25 µA

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

EN 61326-1:2013 EN 55011:2016

Standard conformity

Degree of protection	EN 60529:2000
Input	EN 61131-2:2007
Emitted interference	EN 61000-6-4:2007
Noise immunity	EN 61000-6-2:2005

Approvals and certificates

UL approval: Application	for use in NFPA 79 applications
UL File Number	E223772

Ambient conditions

Ambient temperature	-25 ... 60 °C (-13 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	85 % non-condensing
Climatic conditions	For indoor use only
Altitude	≤ 5000 m above MSL
Shock and impact resistance	30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions,1000 shocks
Vibration resistance	0.75 mm / 5 g 5 ... 500 Hz
Pollution degree	3

Mechanical specifications

Degree of protection	IP67 according to EN 60529
Connection	24 V/48 V power (PWR): Piercing technology, black or gray flat cableL-A; L-B: M12 round plug connector in accordance with EN 61076-2-101, LF type (4-pin, socket contacts, screw-locking, A-coded)Mating connector: LM type or similarInputs/outputs (IO), motors (MOT): M8 round plug connector in accordance with EN 61076-2-104IO: LF type (4-pin, bushing contacts, screw-locking, A-coded)Female connector: LM type or similarMOT: NF type (5-pin, bushing contacts, snap-locking, B-coded) Female connector: NM type or similar
Mass	310 g
Dimensions: Height	27.5 mm
Dimensions: Width	131.5 mm
Dimensions: Length	54 mm
Mounting	2 clips with ∅ 8 mm drill hole The module must be secured to a solid, continuous surface using the two lugs
Cable length	1.5 m (L-A, L-B) 0.8 m (Zone 1, Zone 2: IO) 0.4 m (Zone 1, Zone 2: MOT)
Note	The flat cable routing is designed for 100 actuation cycles
