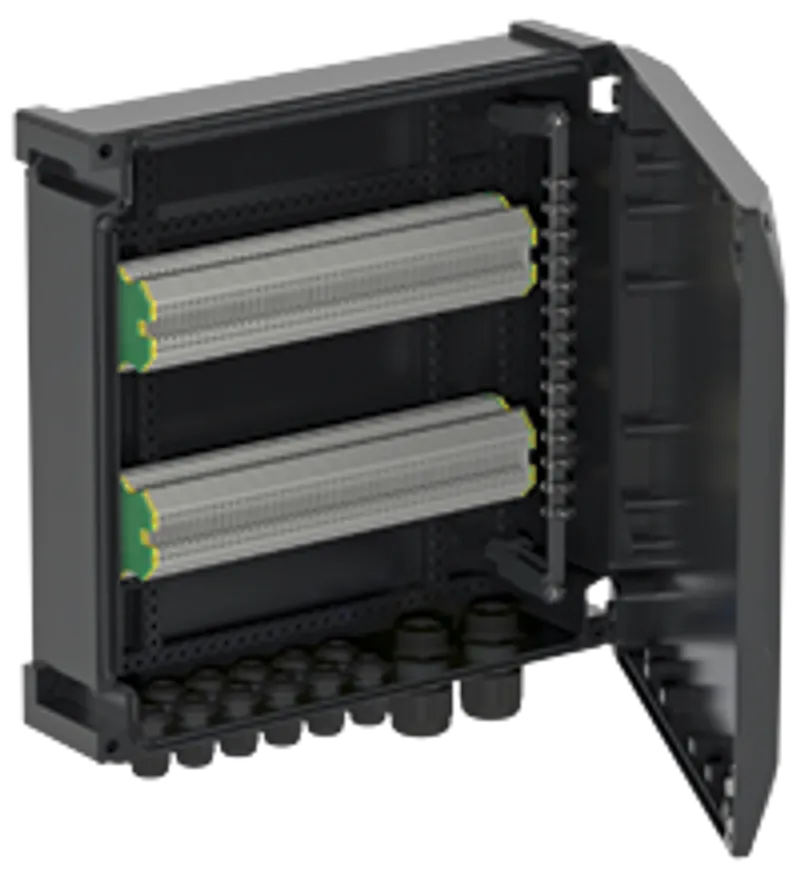

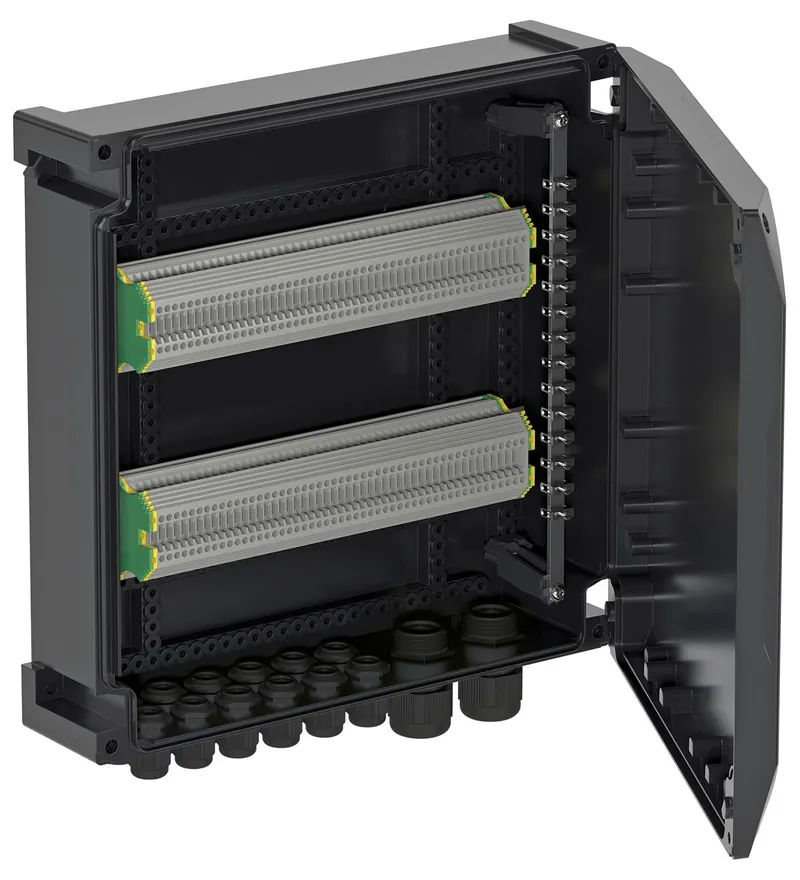

Pepperl Fuchs GR.T*

Terminal and Junction Boxes Ex e / Ex i, Glass-Fiber Reinforced Polyester (GRP)

MPN: GR.T*
Category: Terminal and Junction Boxes (Ex e, Ex i, Ex op)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pepperl Fuchs parts? We buy surplus →

What is the Pepperl Fuchs GR.T*?

Glass-fiber reinforced polyester (GRP) enclosure

Installation in Zone 1, Zone 2, Zone 21 and Zone 22

Installation in Class I, II, Division 2

Ex eb, Ex ia and Ex tb certified

Modern design with high impact resistance

Easy installation due to easily accessible mounting points

Prefabricated mounting grid for flexible arrangement of internal components

Durable IP degree of protection due to foamed gasket and protected sealing area

Easy cover opening without damage due to multiple pry points

Withstands temperatures down to -60 °C

Customizable configuration of terminals, cable entries and cable gland types as per specification

Sturdy hinges as an option

Glass-fiber reinforced polyester (GRP) enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Installation in Class I, II, Division 2, Ex eb, Ex ia and Ex tb certified, Modern design with high impact resistance, Easy installation due to easily accessible mounting points, Prefabricated mounting grid for flexible arrangement of internal components, Durable IP degree of protection due to foamed gasket and protected sealing area, Easy cover opening without damage due to multiple pry points

Specifications

Electrical specifications

Order code (Pepperl+Fuchs part number)	T189234
Operating voltage	690 V AC / DC max. , depending on size for ATEX / IECEx 600 V AC / DC max. for North American approvals
Operating current	350 A max. , depending on size and certification
Lifecycle	Active (current Pepperl+Fuchs product)

Mechanical specifications

Enclosure cover	fully detachable , optional hinges
Cover fixing	Stainless steel A4 (V4A) combination pozi driv and slotted screw
Cover seal	foamed silicone
Degree of protection	IP66 , Type 4X
Cable entry	see data table
Number of cable entries	see data table
Terminal assembly: Number of rails	see data table
Terminal assembly: Terminal type	Standard see PDF datasheet, other terminal types optional
Terminal assembly: Number of terminals per rail	see data table
Material: Enclosure	carbon loaded, antistatic glass-fiber reinforced polyester (GRP)
Material: Finish	inherent color black
Material: Grounding plate	2 mm brass optional
Mass	see data table valid for empty enclosure, will increase according to integrated components
Shock resistance	IK09 (from GR.18.18.10 and larger, IK09, IK10 apply)

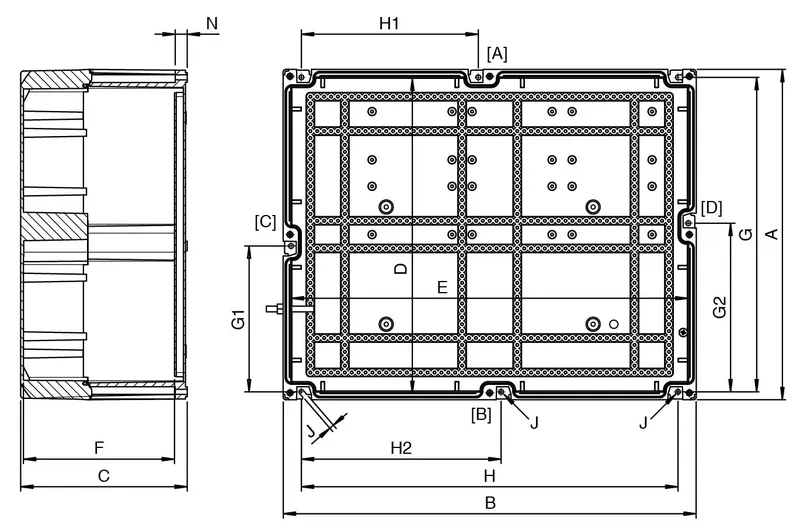

Dimensions	see data table
Mounting	see data table
Grounding	none as standard optional M6 or M8 internal/external brass nickel-plated grounding bolt optional M6 or M8 internal/external stainless steel grounding bolt

Ambient conditions

Ambient temperature

-60 ... 65 °C (-76 ... 149 °F)

Data for application in connection with hazardous areas

EU-type examination certificate	CML 17 ATEX 3255X
Marking	II 2 GD Ex eb IIC T* Gb Ex ia IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +55 °C T4/T130 °C @ Ta +65 °C

International approvals

IECEx approval	IECEx CML 17.0144X
UKCA approval	CML 21 UKEX 3896X
ETL approval: ETL certificate	Intertek 5003368 , Intertek 5022079
ETL approval: Approved for	Class I, Division 2, Groups A, B, C, D Class II, Division 2, Groups F, G Class III
ETL approval: cETLus	according to UL 1773 , UL 121201 , CSA C22.2, No. 40, 213
ETL approval: Ambient temperature	-40 ... 65 °C (-40 ... 149 °F)
IA approval	MASC S/18-1639X
CCC approval	2020322303002568

Conformity

Degree of protection	EN60529 and UL 50 / UL 50E
CE marking	0102

General information

Order information	This terminal box will be delivered completely configured and assembled ready for use. For configuration details please contact customer service.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Accessories

Optional accessories

M6 or M8 internal/external brass nickel-plated grounding bolts M6 or M8 internal/external stainless steel grounding bolts grounding plate, brass mounting plate, stainless steel hinges, polyamide mounting block for DIN mounting rail, polyamide engraved traffolyte tag label engraved AISI 316L stainless steel tag label color in-fill stainless steel tag label
