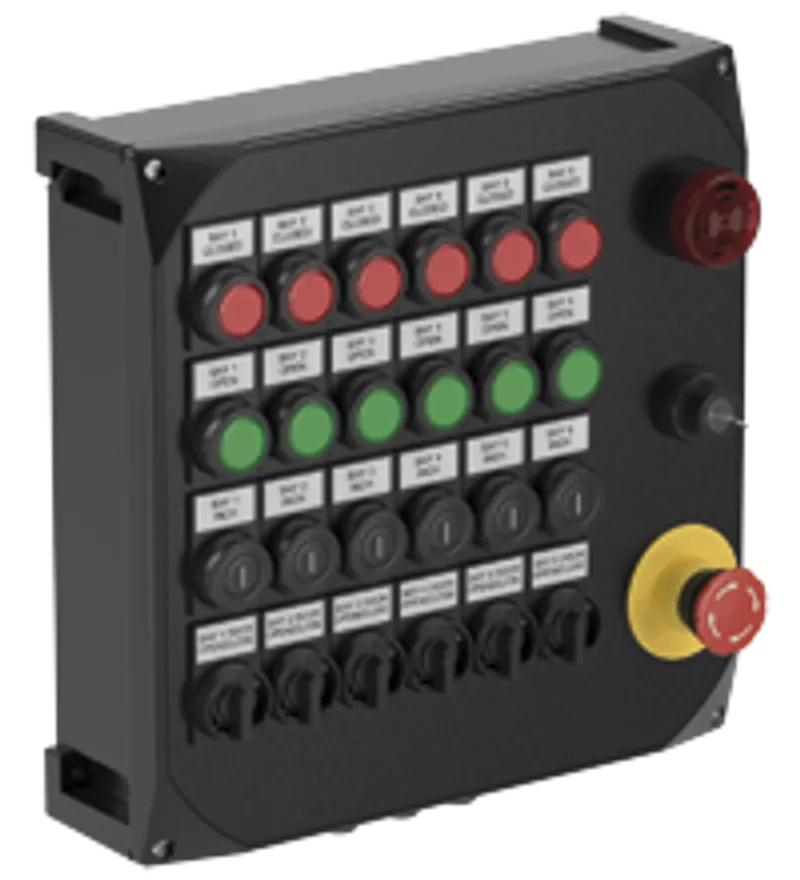

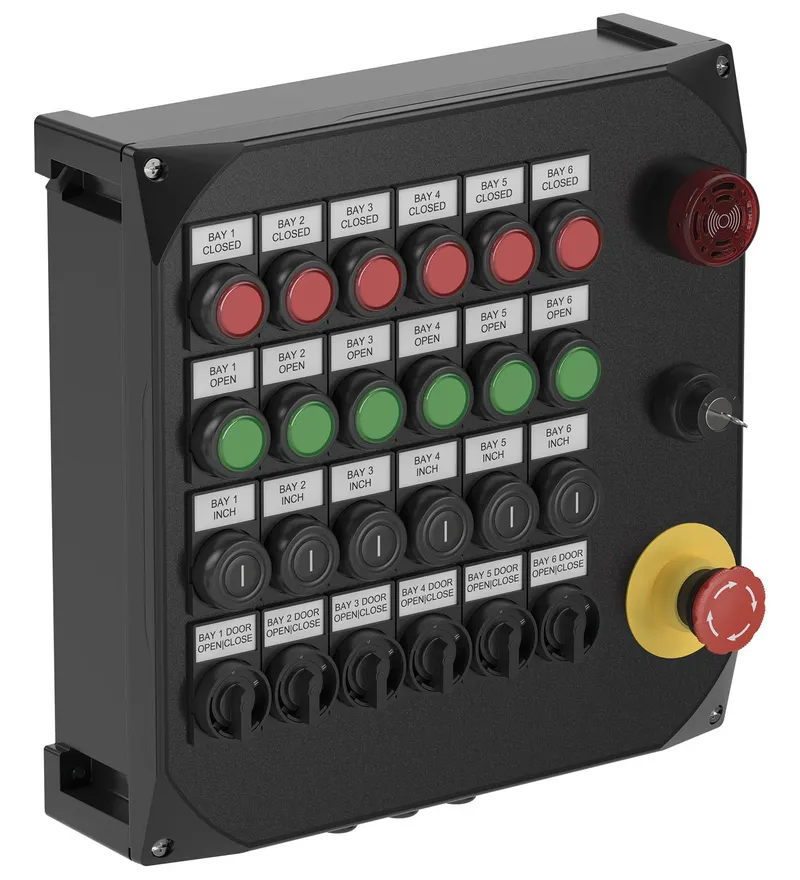

Pepperl Fuchs GR.CS*
Control Stations Ex e, Glass-Fiber Reinforced Polyester (GRP)
- MPN
- GR.CS*
- Category
- Control Stations (Ex e)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs GR.CS*?
Carbon loaded, antistatic glass-fiber reinforced polyester
Installation in Zone 1, Zone 2, Zone 21 and Zone 22
Ex db eb, Ex ib and Ex tb certified
Up to 68 operators per control station
7 enclosure size options
Customizable configuration of operators, cable entry quantities and cable gland types as per specification
Wide range of labels and accessories available
Modern design with high impact resistance
Easy installation due to easily accessible mounting points
Wide ambient temperature range
Carbon loaded, antistatic glass-fiber reinforced polyester, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex db eb, Ex ib and Ex tb certified, Up to 68 operators per control station, 7 enclosure size options, Customizable configuration of operators, cable entry quantities and cable gland types as per specification, Wide range of labels and accessories available, Modern design with high impact resistance, Easy installation due to easily accessible mounting points, Wide ambient temperature range
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T189602 |
| Operating voltage | 400 V AC max. |
| Operating current | 16 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque | 0.8 Nm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Enclosure cover | fully detachable |
| Cover fixing | Stainless steel A4 (V4A) combination pozi driv and slotted screw |
| Screws | stainless steel combination Phillips and slotted screw |
| Cover seal | foamed silicone |
| Degree of protection | IP66 |
| Cable entry | cable glands as per specification |
| Material: Enclosure | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) |
| Material: Finish | inherent color black |
| Material: Grounding plate | 2 mm brass optional |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |
| Dimensions | see data table |
| Mounting | see data table |
| Grounding | none as standard optional M6 or M8 internal/external brass nickel-plated grounding bolt optional M6 or M8 internal/external stainless steel grounding bolt |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) optional -50 ... 55 °C (-58 ... 131 °F) depending on integrated components |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking | II 2 GD Ex db eb mb IIC T* Gb Ex ib IIC T* Gb Ex db eb ib mb op pr IIC T* Gb Ex eb op pr IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +55 °C T4/T130 °C @ Ta +55 °C |
International approvals
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| ECAS approval | 24-11-132356/E24-11-137186/NB0002 |
| IA approval | MASC S/22-8362X |
| CCC approval | 2020322304002545 |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 2829 |
General information
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Accessories
| Optional accessories | M6 or M8 internal/external brass nickel-plated grounding bolts M6 or M8 internal/external stainless steel grounding bolts grounding plate, brass Grounding Rail hinges, polyamide mounting block for DIN mounting rail, polyamide engraved traffolyte tag label engraved AISI 316L stainless steel tag label color in-fill stainless steel tag label |
Indicators/operating means
| Control elements | small footprint max. 68 see data table all NC contacts have a direct opening action for emergency stop functions |
