Pepperl Fuchs F.FS*.T50.B24.E.*.***.***.****
Ethernet-APL Rail Field Switch
- MPN
- F.FS*.T50.B24.E.*.***.***.****
- Category
- Enclosure Solutions
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs F.FS*.T50.B24.E.*.***.***.****?

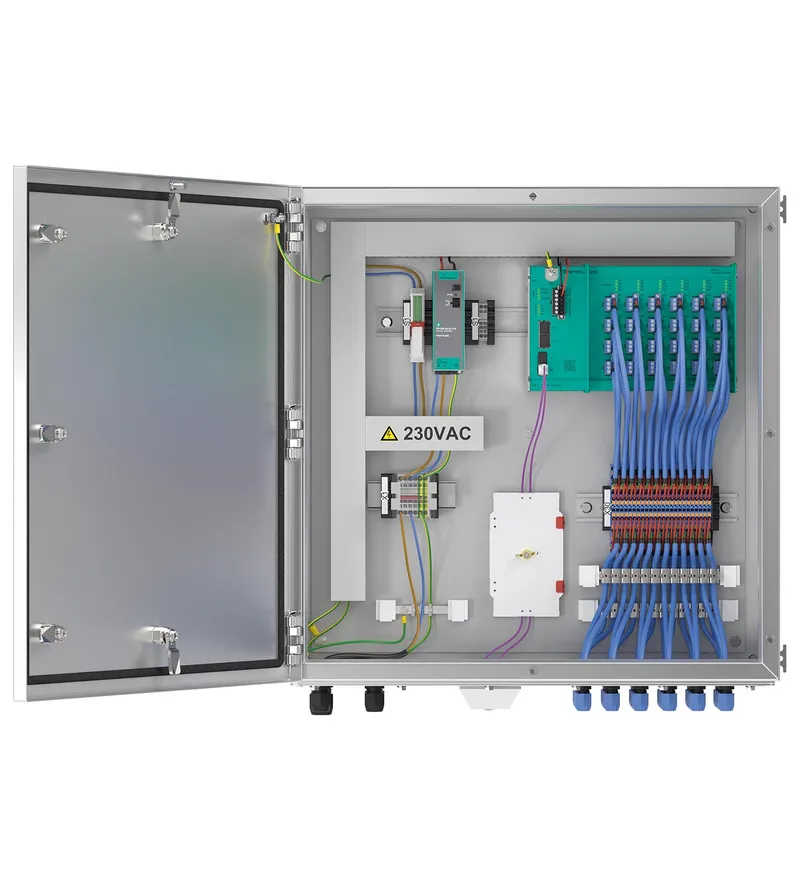

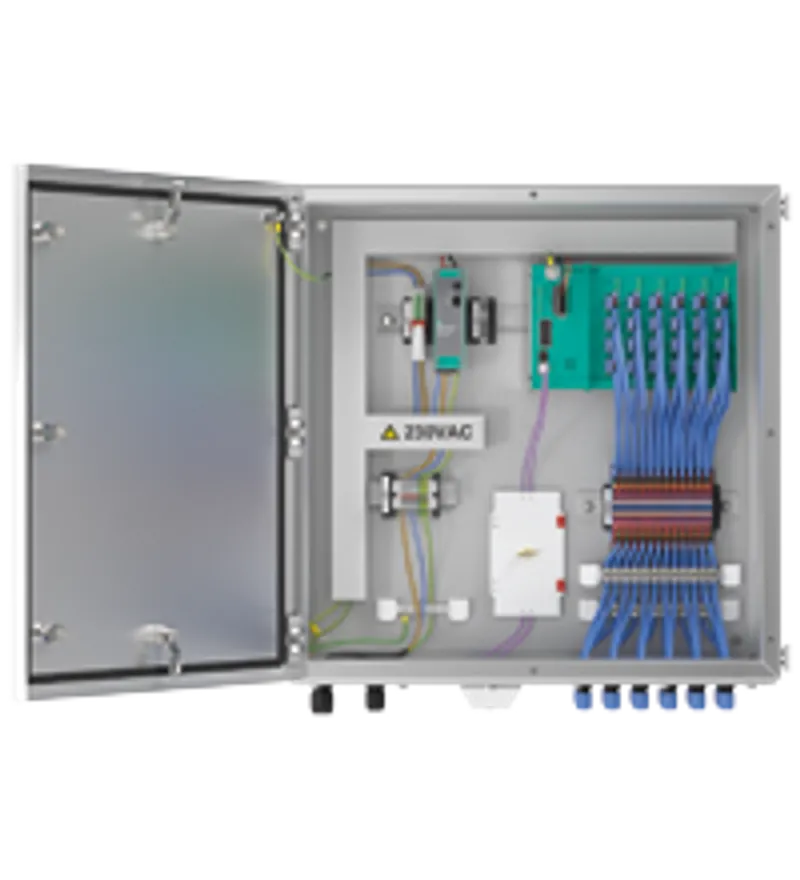

Stainless steel enclosure with Ethernet-APL rail field switch
Spur outputs intrinsically safe for Zone 0, 1, or 2
Number of spur outputs selectable
Packaged certified solution
Installation in Zone 2 and Zone 22
Customizable configuration of splice trays, cable entries, and further components
Ethernet-APL field junction box enclosure solution, brushed stainless steel with intrinsically safe spur ports, Stainless steel enclosure with Ethernet-APL rail field switch, Spur outputs intrinsically safe for Zone 0, 1, or 2, Number of spur outputs selectable, Packaged certified solution, Installation in Zone 2 and Zone 22, Device coupler location: non-explosion hazardous area, Zone 2, Device coupler location [2]: Zone 2
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T207405 |
| Design / Mounting | Outside installation |
| Installed components | Ethernet-APL rail field switch ARS1*-B2-I**-** , For technical data on installed electronic component see datasheets. |
| Fieldbus support | PROFIBUS PA (optional) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Conformity
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
Ambient conditions
| Ambient temperature | -40 ... 50 °C (-40 ... 122 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | < 75 % (annual mean) < 95 % (30 d/year), no moisture condensation |
| Impact resistance | 7J |
Mechanical specifications
| Enclosure cover | Hinged door with captive retaining screws |
| Degree of protection | IP66 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material: Housing | Stainless steel 1.4404 / AISI 316L |
| Material: Surface | brushed |
| Material: Seal | Silicone, fire-resistant, one piece, foamed |
| Material: Material thickness | enclosure body, enclosure cover, mounting plate: 1.5 mm |
| Dimensions | (W x H x D) 600 x 600 x 260 mm |
| Mounting | thru-holes Ø 7 mm |
| Grounding | grounding bolt M6 , brass, nickel-plated |
Data for application in connection with hazardous areas
| Certificate | PTB 17 ATEX 1011 X |
| Marking | II 3(1) G Ex ic [ia Ga] IIC T4 Gc [exsign] II 3(1)G Ex ec [ia Ga] IIC T4 Gc [exsign] II 3(1)D Ex tc [ia Da] IIIC T135°C Dc |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014 |
International approvals
| IECEx approval | IECEx PTB 07.0036 X , Zone 1 , suitable Junction Box on request IECEx PTB 09.0016 X , Zone 2 , suitable Junction Box on request |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
