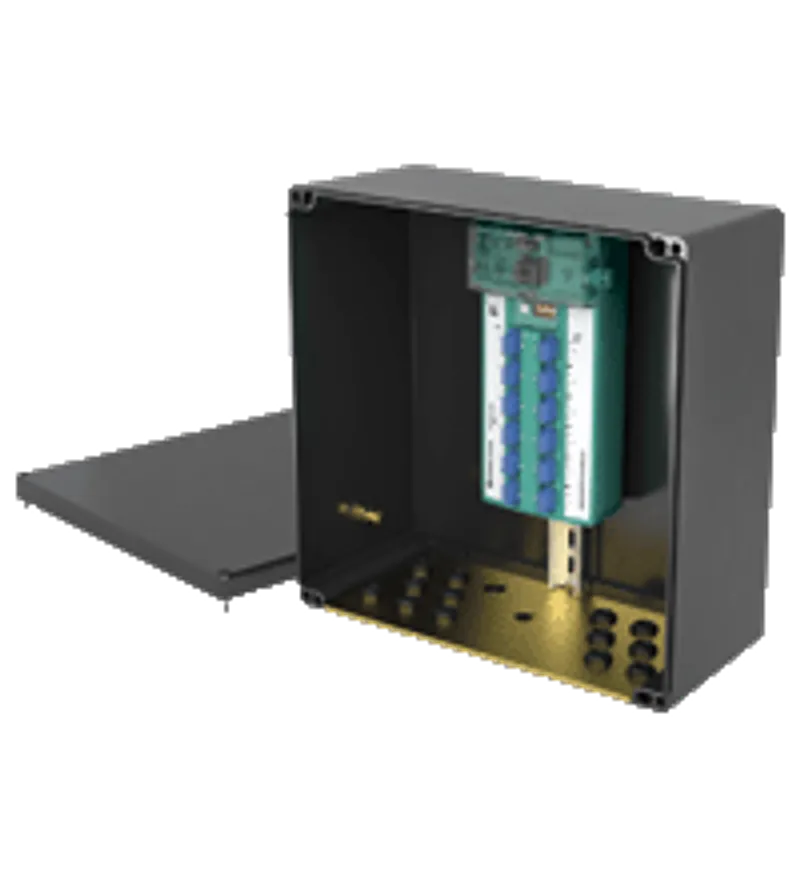

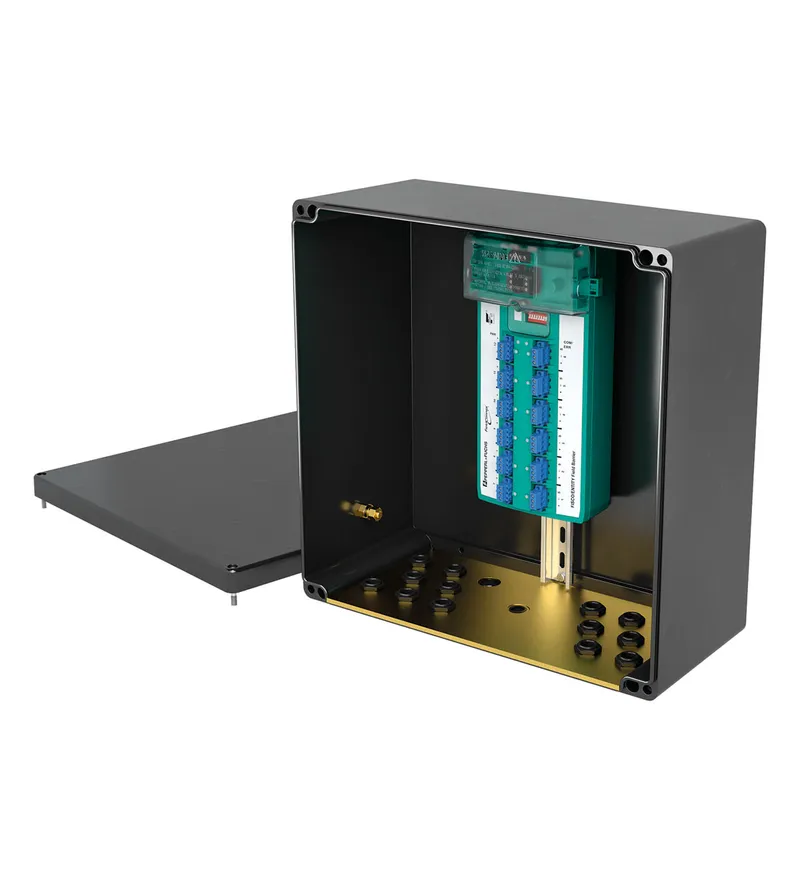

Pepperl Fuchs F.FB1.P14.A**.1.*.***.***.****
FieldBarrier Junction Box, Polyester (GRP)
- MPN
- F.FB1.P14.A**.1.*.***.***.****
- Category
- FieldBarriers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs F.FB1.P14.A**.1.*.***.***.****?
8, 10, 12 outputs Ex ia
Impact resistance enclosure, IP66
Configurable cable entries for trunk and spurs
Packaged certified solution
For FOUNDATION Fieldbus H1 and PROFIBUS PA
Installation in Zone 1
8, 10, 12 outputs Ex ia, Impact resistance enclosure, IP66, Configurable cable entries for trunk and spurs, Packaged certified solution, For FOUNDATION Fieldbus H1 and PROFIBUS PA, Device coupler location: Zone 2 - high-power trunk, Zone 1 - high-power trunk, Device coupler location [2]: Zone 1 - high-power trunk, Instrument location / spur protection: Zone 0 ... 1 - intrinsic safety, Function: Device coupler, Design / Mounting: Outside installation
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T167042 |
| Design / Mounting | Outside installation |
| Installed components | FieldBarrier R4D0-FB-IA* For technical data on installed electronic component see data sheet. |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Conformity
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
Ambient conditions
| Ambient temperature | -30 ... 55 °C (-22 ... 131 °F) , (extended temperature range available on request) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | < 75 % (annual mean) < 95 % (30 d/year), no moisture condensation |
| Impact resistance | 7J |
Mechanical specifications
| Enclosure cover | detachable cover with retaining screws |
| Degree of protection | IP66 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material: Housing | polyester , impact resistant, glass fiber reinforced |
| Material: Grounding plate | brass |
| Material: Surface | black (RAL 9011) |
| Material: Surface resistance | 9 Ω |
| Material: Water absorption | < 6 % |
| Material: Seal | silicone , one-piece |
| Material: Material thickness | grounding plate: 3 mm |
| Dimensions | (W x H x D) 405 x 400 x 200 mm |
| Mounting | thru-holes Ø6.5 mm |
| Grounding | grounding bolt M6 , brass |
Data for application in connection with hazardous areas
| EU-type examination certificate | PTB 07 ATEX 1061 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com |
| Marking | II 2(1)G Ex db eb ib mb [ia Ga] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly. |
| Directive conformity: Directive 2014/34/EU | EN 60079-0:2012 , EN 60079-1:2014 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-18:2009 , EN 60079-31:2014 |
International approvals
| IECEx approval | IECEx PTB 07.0036 X , suitable Junction Box on request |
| INMETRO approval | TÜV 13.1143 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
