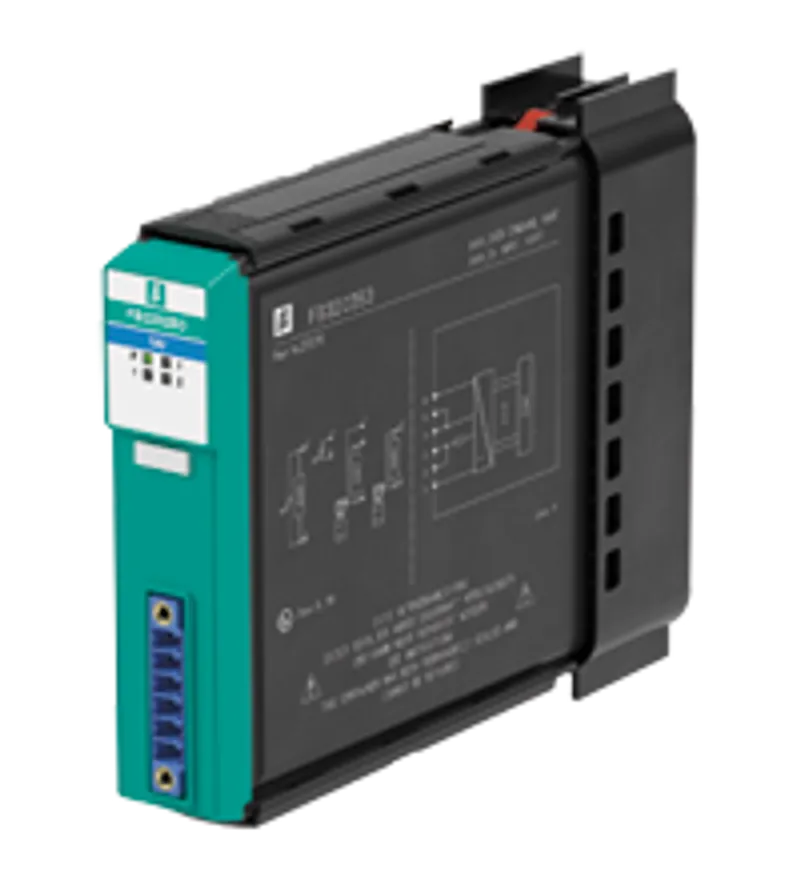

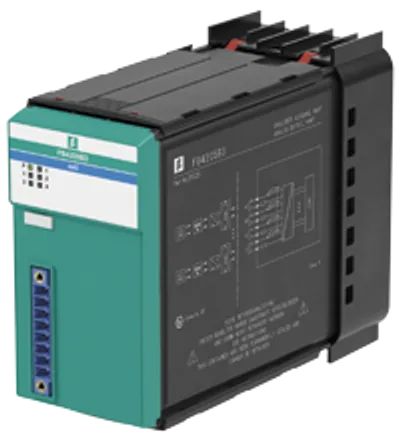

HART Transmitter Power Supply, Input Isolator FB3202B3 — photo 1 of 2

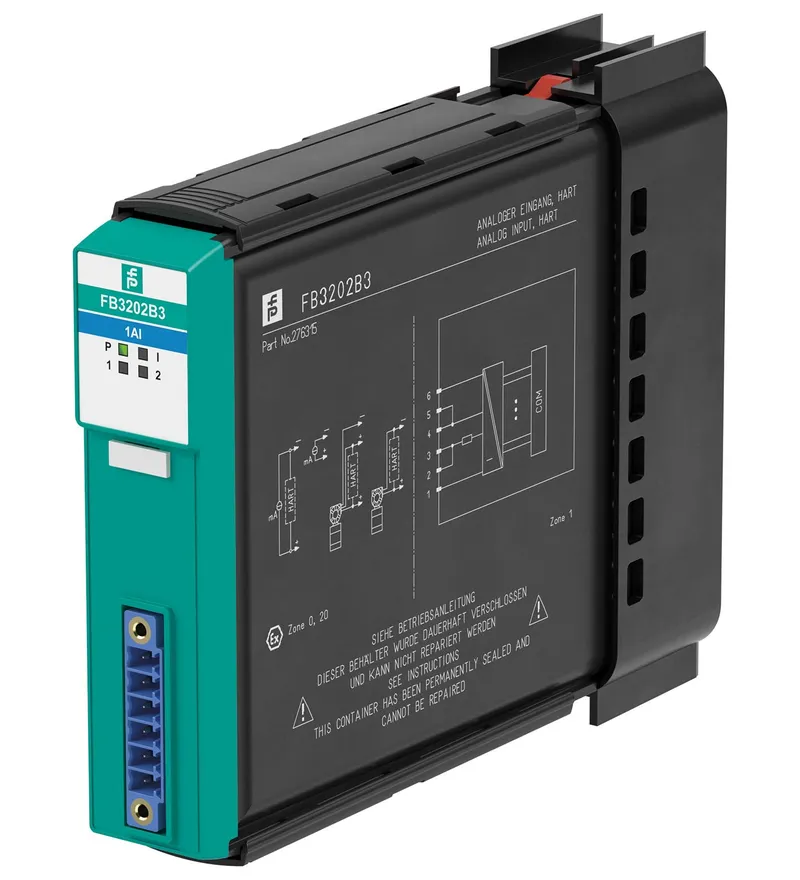

HART Transmitter Power Supply, Input Isolator FB3202B3 — photo 2 of 2

Available on request

Pepperl Fuchs FB3202B3 – HART Transmitter Power Supply, Input Isolator

MPN: FB3202B3 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FB3202B3 be shipped?

FB3202B3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FB3202B3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FB3202B3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FB3202B3, subject to availability and destination.

• 1-channel

• Input Ex ia

• Installation in suitable enclosures in Zone 1

• Module can be exchanged under voltage (hot swap)

• Power supply for 2- or 3-wire transmitters with 4 mA ... 20 mA

• Supply circuit 15 V (20 mA)

• Input from active signals of 4-wire transmitters

• HART communication via field bus or service bus

• HART communication also for separately powered devices

• Simulation mode for service operations (forcing)

• Line fault detection (LFD) and Live Zero monitoring

• Permanently self-monitoring

1-channel, Input Ex ia, Installation in suitable enclosures in Zone 1, Module can be exchanged under voltage (hot swap), Explosion protection: Ex ia, Field device: pressure converter, Field device [2]: flow converter, Field device [3]: level converter, Field device [4]: Temperature Converter, Connection: 2-wire transmitter, Connection [2]: 3-wire transmitter, Connection [3]: 4-wire transmitter, HART communication

Specifications

Slots

Order code (Pepperl+Fuchs part number)	276315
Occupied slots	1
Lifecycle	Active (current Pepperl+Fuchs product)

Supply

Connection	backplane bus
Rated voltage	12 V DC , only in connection with the power supplies FB92** Ur
Power dissipation	0.75 W
Power consumption	1.1 W

Internal bus

Connection	backplane bus
Interface	manufacturer-specific bus to standard com unit

Analog input

Number of channels	1
Suitable field devices: Field device	pressure converter
Suitable field devices: Field device [2]	flow converter
Suitable field devices: Field device [3]	level converter
Suitable field devices: Field device [4]	Temperature Converter
Field device interface: Connection	2-wire transmitter
Field device interface: Connection [2]	3-wire transmitter
Field device interface: Connection [3]	4-wire transmitter
Connection	2-wire transmitter (HART): supply circuit: 2/3+, 4/5- 3-wire transmitter (HART): supply circuit: 2/3+, 6- measuring circuit: 4/5+, 6- 4-wire transmitter (separately powered): measuring circuit: 4/5+, 6- HART measuring circuit: 1+, 6-
Transmitter supply voltage	min. 15 V at 20 mA ; 21.5 V at 4 mA
Input resistance	15 Ω (terminals 5, 6) 236 Ω (terminals 1, 6) HART
Line fault detection	can be switched on/off for each channel via configuration tool , configurable via configuration tool
Short-circuit	factory setting: > 22 mA configurable between 0 ... 26 mA
Open-circuit	factory setting: < 1 mA configurable between 0 ... 26 mA
HART communication	yes
HART secondary variable	yes

Transfer characteristics

Deviation: After calibration	0.1 % of the signal range at 20 °C (68 °F)
Deviation: Influence of ambient temperature	0.1 %/10 K of the signal range
Resolution	12 Bit (0 ... 26 mA)
Refresh time	100 ms

Indicators/settings

LED indication	Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1) red: line fault (lead breakage or short circuit) Status LED (2) yellow: Live Zero monitoring
Coding	optional mechanical coding via front socket

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU

EN 61326-1:2006

Conformity

Electromagnetic compatibility	NE 21:2007
Degree of protection	IEC 60529:2000
Environmental test	EN 60068-2-14:2009
Shock resistance	EN 60068-2-27:2009
Vibration resistance	EN 60068-2-6:2008
Damaging gas	EN 60068-2-42:2003
Relative humidity	EN 60068-2-78:2001

Ambient conditions

Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-25 ... 85 °C (-13 ... 185 °F)
Relative humidity	95 % non-condensing
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles frequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3

Mechanical specifications

Degree of protection	IP20 (module) , a separate housing is required acc. to the system description
Connection	removable front connector with screw flange (accessory) wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2)
Mass	approx. 350 g
Dimensions	28 x 107 x 132 mm (1.1 x 4.2 x 5.2 inch)

Data for application in connection with hazardous areas

EU-type examination certificate	FIDI 24 ATEX 0082U
Marking	II 2(1)G Ex db q [ia Ga] IIC Gb [exsign] II (1)D [Ex ia Da] IIIC
Supply: Voltage	27 V Uo
Supply: Current	92 mA Io
Supply: Power	619 mW (linear characteristic) Po
Connection 1 to 6: Voltage	8.9 V
Connection 1 to 6: Current	4 mA
Connection 1 to 6: Power	24 mW (trapezoid characteristic curve)
Input: Voltage	0.7 V Uo
Input: Current	7 mA Io
Input: Power	5 mW (trapezoid characteristic curve) Po
Input: Internal capacitance	242 nF Ci
Input: Internal inductance	0 mH Li
Galvanic isolation: Input/power supply, internal bus	safe electrical isolation acc. to EN IEC 60079-11:2024 , voltage peak value 375 V
Directive conformity: Directive 2014/34/EU	EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015/A1:2024 EN 60079-11:2012 EN IEC 60079-11:2024

International approvals

ATEX approval	FIDI 24 ATEX 0082U
IECEx approval: IECEx certificate	IECEx FIDI 24.0018U
IECEx approval: IECEx marking	Ex db q [ia Ga] IIC Gb [Ex ia Da] IIIC

General information

System information	The module has to be mounted in appropriate backplanes and housings (FB92**) in Zone 1, 2, 21, 22 or outside hazardous areas (gas or dust). Here, observe the corresponding EC-type examination certificate.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
