Pepperl Fuchs ECI30PL-01A1A-UD1BY:YY – Cable pull rotary encoder
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cable-Pull Rotary Encoders |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ECI30PL-01A1A-UD1BY:YY be shipped?
ECI30PL-01A1A-UD1BY:YY is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECI30PL-01A1A-UD1BY:YY in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECI30PL-01A1A-UD1BY:YY and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECI30PL-01A1A-UD1BY:YY, subject to availability and destination.
• Robust aluminum drum housing
• Rust and acid-resistant measuring cable
• Bellows with steel tip
• Universal output driver
• 50 ppr

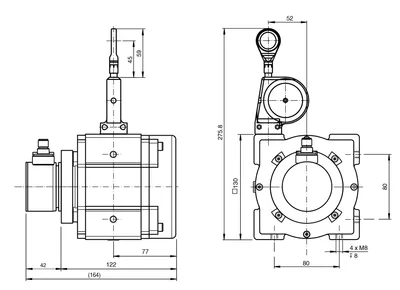

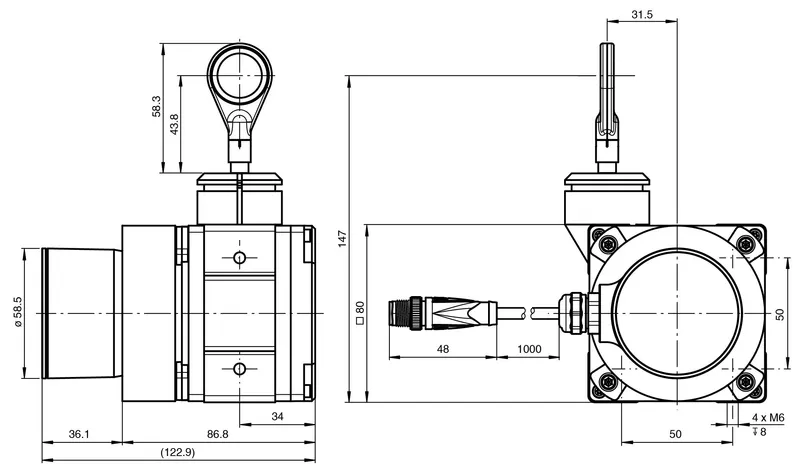

Cable pull rotary encoder with incremental output signals (50 pulses), Robust aluminum drum housing, Rust and acid-resistant measuring cable, Bellows with steel tip, Universal output driver, 50 ppr, Interface: push-pull, incremental, Detection type: photoelectric sampling, Construction type: 80 mm
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70202687 |
| Detection type | photoelectric sampling |
| Device type | Premium Line |
| Measuring length | 1000 mm |
| Construction type | 80 mm |
| Resolution | Cable pull:Design 80 mm: 4 mm Encoder: 50 pulses per revolution |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | 4.75 ... 30 V DC , Reverse polarity protection UB |
| No-load supply current | max. 50 mA I0 |
Output
| Output type | push-pull or RS422 (universal output driver, output level depending on input voltage) |
| Output frequency | max. 400 kHz |
| Rise time | 300 ns |
| Phase position A to B | 90 ° ± 9 ° electrical |
| Duty cycle | 1/2 ± 10 % |
Connection
| Fixed cable with plug | Cable with M12 x 1 connector , 5-pin , L = 1 m |
Standard conformity
| Degree of protection | according DIN EN 60529 |
| Connection side | Encoder: IP65 Cable pull: IP64 |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation |
| Emitted interference | EN IEC 61000-6-4:2019 |
| Noise immunity | EN IEC 61000-6-2:2019 |
Ambient conditions
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Relative humidity | 98 % , no moisture condensation |
Mechanical specifications
| Rope diameter | 1.35 mm |
| Drum perimeter | 200.1 mm |
| Retraction speed | 4 m/s |
| Spring retraction force | 5 ... 15 N |
| Material: Cable pull | anodized aluminum |
| Material: Rotary encoder | powder coated aluminum |
| Material: Flange | aluminum, blank |
| Material: Rope | Stainless steel 1.4401/316 |
| Mass | 1900 g |
| Life span | up to 106 Cycles |
