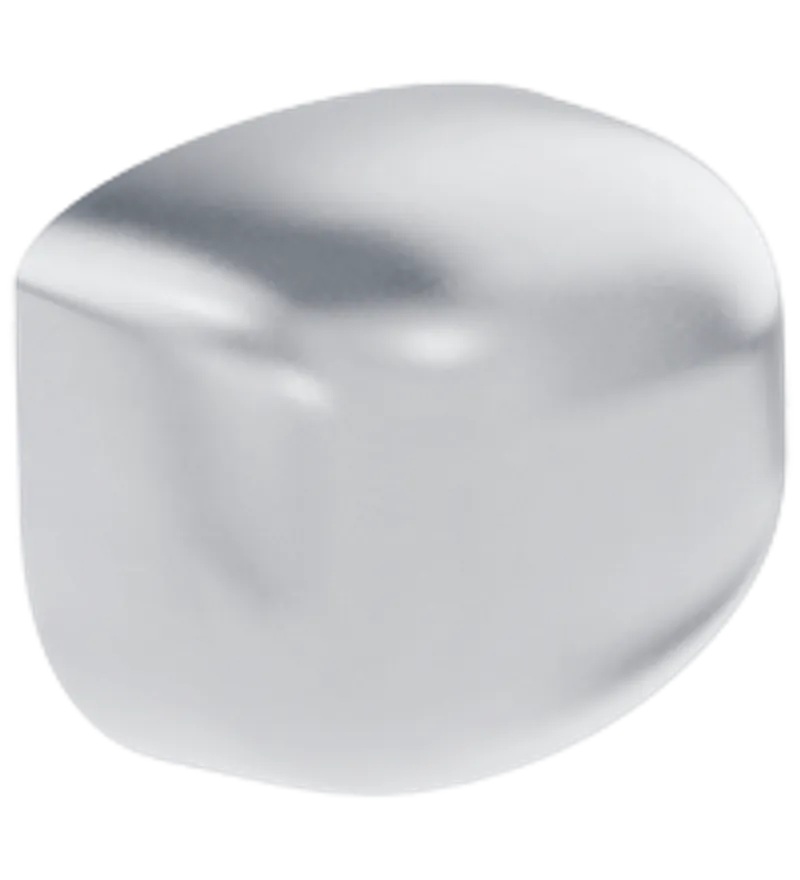

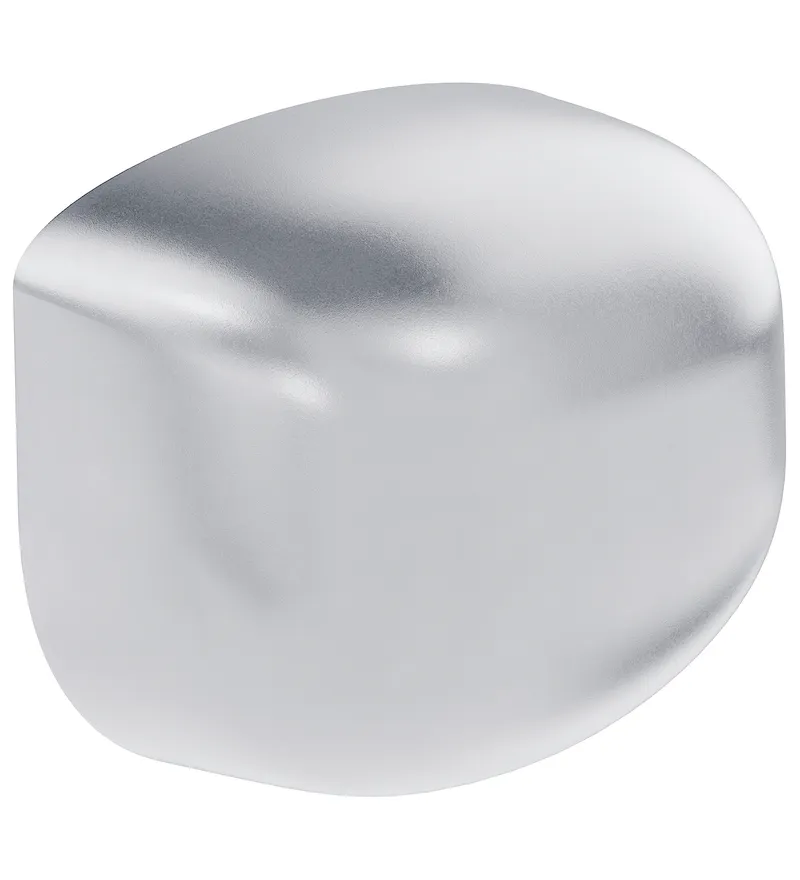

Pepperl Fuchs ECHO-M silver
Radar motion sensor
- MPN
- ECHO-M silver
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs ECHO-M silver?
Basic radar motion sensor
Detection of people and objects for automatic doors
Simplest adjustment of the sensing range
Wall and ceiling mountable
Basic radar motion sensor, Detection of people and objects for automatic doors, Simplest adjustment of the sensing range, Wall and ceiling mountable, Function: Open, Sensor principle: Radar sensor, Operating voltage: 12 ... 24 V DC ± 10 %, Signal output: solid-state relay, Connection: cable Adapter 35 mm included with delivery ; for conductor cross section 0.2 ... 0.5 mm2
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70131935 |
| Sensing range | 2000 x 4000 mm (DxW) at 2200 mm mounting height and 30° inclination angle |
| Function principle | Microwave module |
| Detection speed | min. 0.1 m/s |
| Setting angle: Rotation angle | -40 ... 40 ° in 5 ° increments |
| Setting angle: Inclination angle | 0 ... 90 ° in 5 ° increments |
| Operating frequency | 24.15 ... 24.25 GHz K-Band |
| Operating mode | Radar motion sensor |
| Transmitter radiated power (EIRP) | < 13 dBm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 766 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Function indicator | detection : LED green push button indication : LED yellow |
| Control elements | sensitivity adjustment with push button |
Electrical specifications
| Operating voltage | 12 ... 24 V DC ± 10 % UB |
| No-load supply current | ≤ 50 mA at 24 V DC I0 |
| Power consumption | ≤ 1.2 W P0 |
Output
| Switching type | Normally open (NO) |
| Signal output | solid-state relay |
| Switching voltage | max. 28 V AC / 36 V DC |
| Switching current | max. 0.1 A AC / 0.1 A DC |
| Hold time | 1.5 s |
Approvals and certificates
| CE conformity | 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed. |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Operating temperature | -20 ... 55 °C (-4 ... 131 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Relative humidity | max. 90 % non-condensing |
Mechanical specifications
| Mounting height | max. 3 m |
| Degree of protection | IP54 |
| Connection | cable Adapter 35 mm included with delivery ; for conductor cross section 0.2 ... 0.5 mm2 |
| Material: Housing | PC (Polycarbonate) |
| Mass | approx. 70 g |
| Dimensions | 75 mm x 64 mm x 44 mm |
