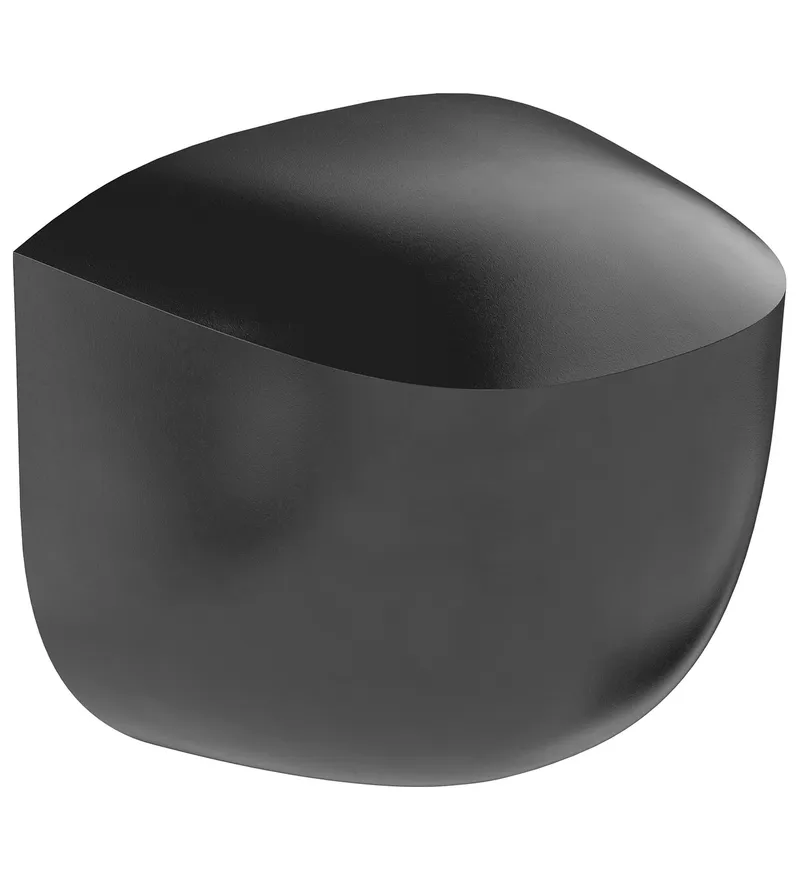

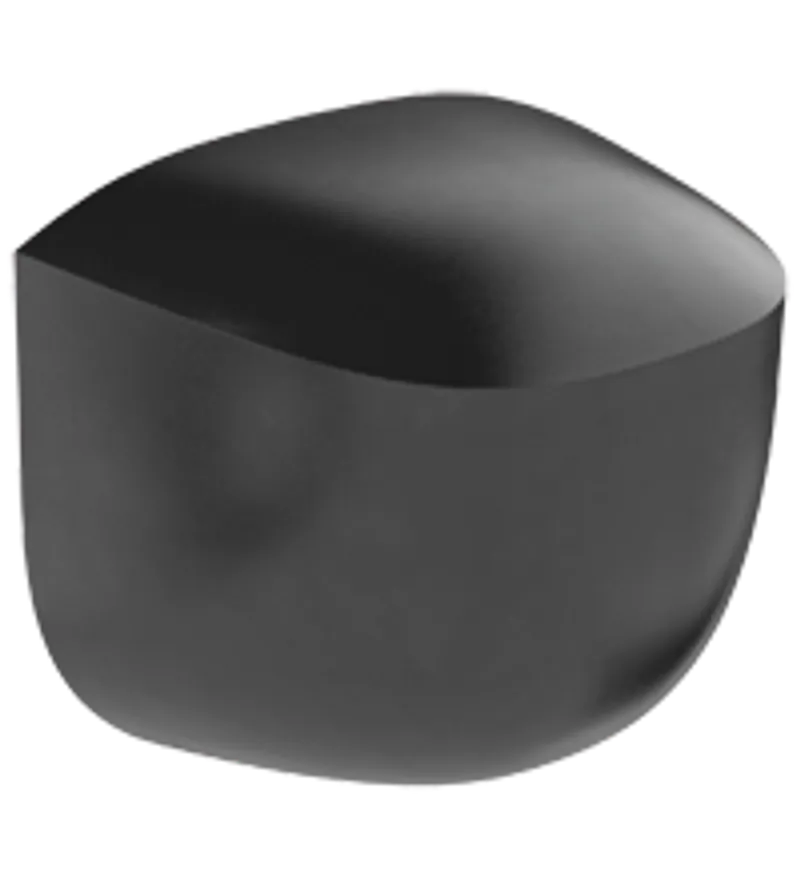

Pepperl Fuchs ECHO-D-NA black – Radar motion sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Radar Sensors for Entrance Automation |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ECHO-D-NA black be shipped?
ECHO-D-NA black is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECHO-D-NA black in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECHO-D-NA black and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECHO-D-NA black, subject to availability and destination.
• Standard radar motion sensor
• Detection of people and objects for automatic doors
• Bidirectional sensing and adjustment of detection field
• Remote control or push button for functionality setting
• Wall and ceiling mountable
Standard radar motion sensor, Detection of people and objects for automatic doors, Bidirectional sensing and adjustment of detection field, Remote control or push button for functionality setting, Wall and ceiling mountable, Function: Open, Sensor principle: Radar sensor, Operating voltage: 12 ... 24 V DC ± 10 %, Signal output: solid-state relay, Connection: Connecting cable 2.5 m included with delivery
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70144548 |
| Sensing range | 2000 x 4500 mm (DxW) at 2200 mm mounting height and 30° inclination angle |
| Function principle | Microwave module |
| Detection speed | min. 0.05 m/s |
| Setting angle: Rotation angle | -40 ... 40 ° in 5 ° increments |
| Setting angle: Inclination angle | 0 ... 90 ° in 5 ° increments |
| Operating frequency | 24.075 ... 24.175 GHz K-Band |
| Operating mode | Radar motion sensor |
| Transmitter radiated power (EIRP) | < 13 dBm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 696 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Function indicator | detection : LED green push button indication : LED yellow / green |
| Control elements | Push button for selection of operating modes : sensitivity , direction detection , cross-traffic suppression , slow-motion mode , relay switching type , hold time , immunity |
Electrical specifications
| Operating voltage | 12 ... 24 V DC ± 10 % UB |
| No-load supply current | ≤ 55 mA at 24 V DC I0 |
| Power consumption | ≤ 1.32 W P0 |
Output
| Switching type | Normally open/closed (NO/NC) |
| Signal output | solid-state relay |
| Switching voltage | max. 28 V AC / 36 V DC |
| Switching current | max. 0.1 A AC / 0.1 A DC |
| Hold time | 1.5 s / 3 s |
Approvals and certificates
| FCC approval | FCC ID: VECAP97 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. |
| IC approval | IC ID: 10506A-AP97 This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. |
Ambient conditions
| Operating temperature | -20 ... 55 °C (-4 ... 131 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Relative humidity | max. 90 % non-condensing |
Mechanical specifications
| Mounting height | max. 4 m |
| Degree of protection | IP54 |

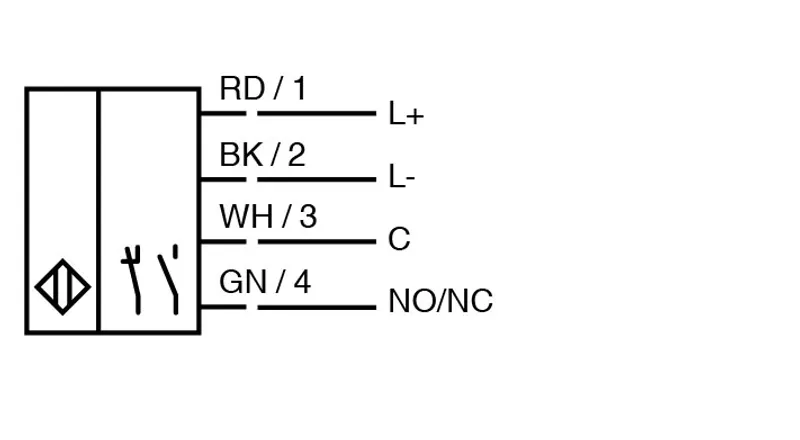

| Connection | Connecting cable 2.5 m included with delivery |
| Material: Housing | PC (Polycarbonate) |
| Mass | approx. 70 g |

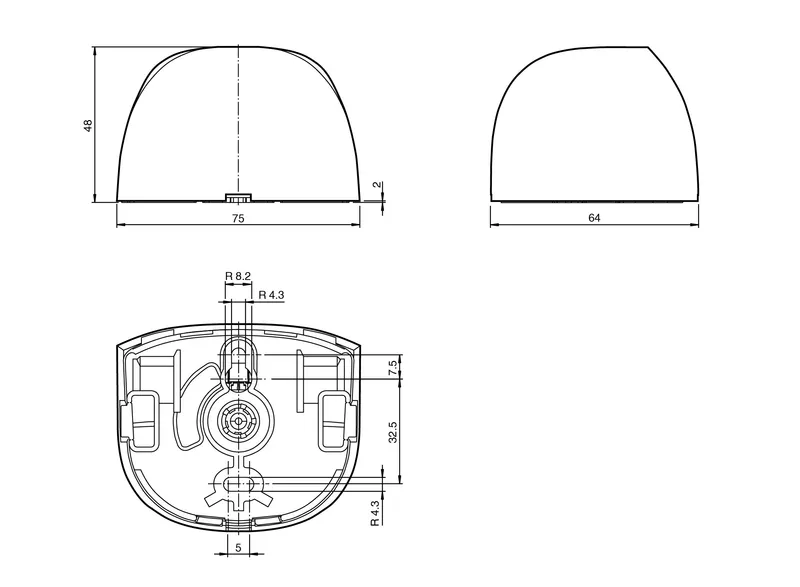

| Dimensions | 75 mm x 64 mm x 50 mm |
| Height | 64 mm |
| Width | 75 mm |
| Depth | 50 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet ECHO-D-NA black | |
| Brief Instructions | PDF · 1.4 MB |
| Instruction Manual | PDF · 150 kB |
| Brief Instructions | PDF · 1.4 MB |
CAD & dimension drawings
| 3-D model (STEP) ECHO-D white | STP · 7.4 MB |
More Pepperl Fuchs parts

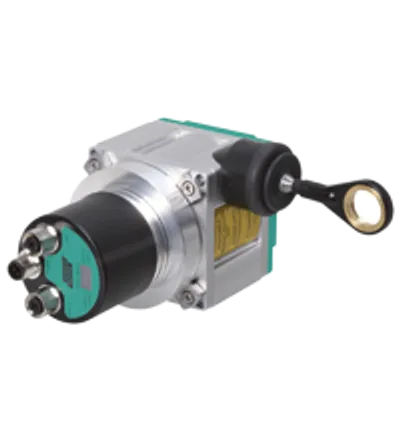

Available on requestCable pull rotary encoder ECA30PL - PROFINET

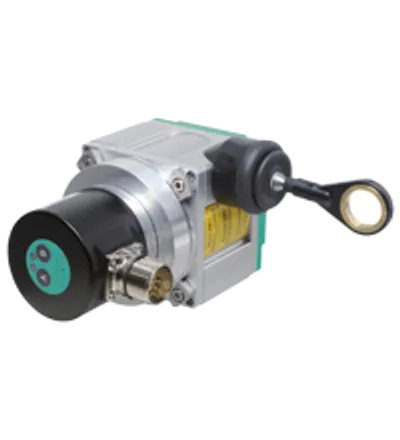

Available on requestCable pull rotary encoder ECA30PL - SSI

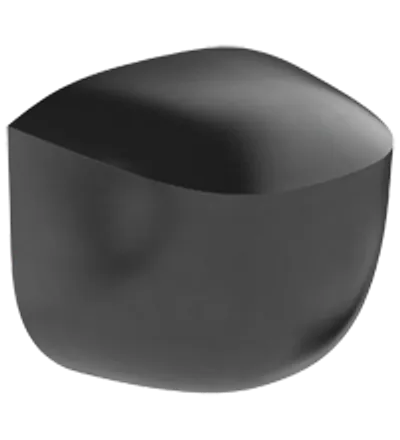

Available on requestRadar motion sensor ECHO-D blackAvailable on requestRadar motion sensor ECHO-D black narrowAvailable on requestRadar motion sensor ECHO-D-NA black narrow

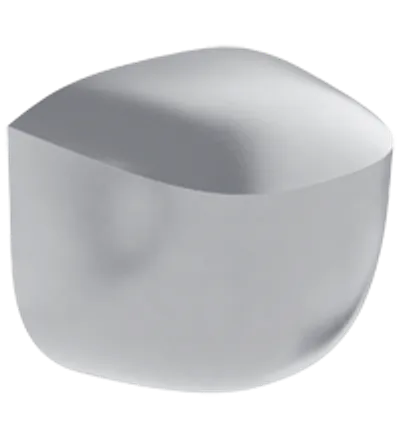

Available on requestRadar motion sensor ECHO-D silverAvailable on requestRadar motion sensor ECHO-D silver narrow

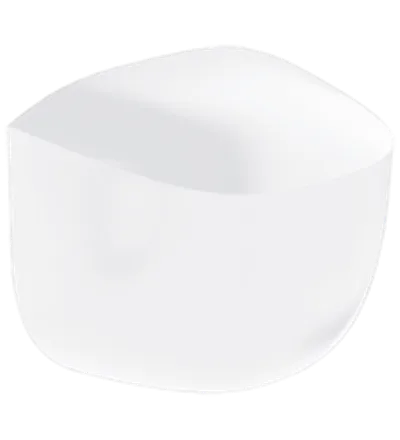

Available on requestRadar motion sensor ECHO-D white
