Pepperl Fuchs ECA30PL - SSI

Name: Pepperl Fuchs ECA30PL - SSI
Brand: Pepperl Fuchs
SKU: ECA30PL - SSI

MPN: ECA30PL - SSI · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cable-Pull Rotary Encoders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ECA30PL - SSI be shipped?

ECA30PL - SSI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECA30PL - SSI in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECA30PL - SSI and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECA30PL - SSI, subject to availability and destination.

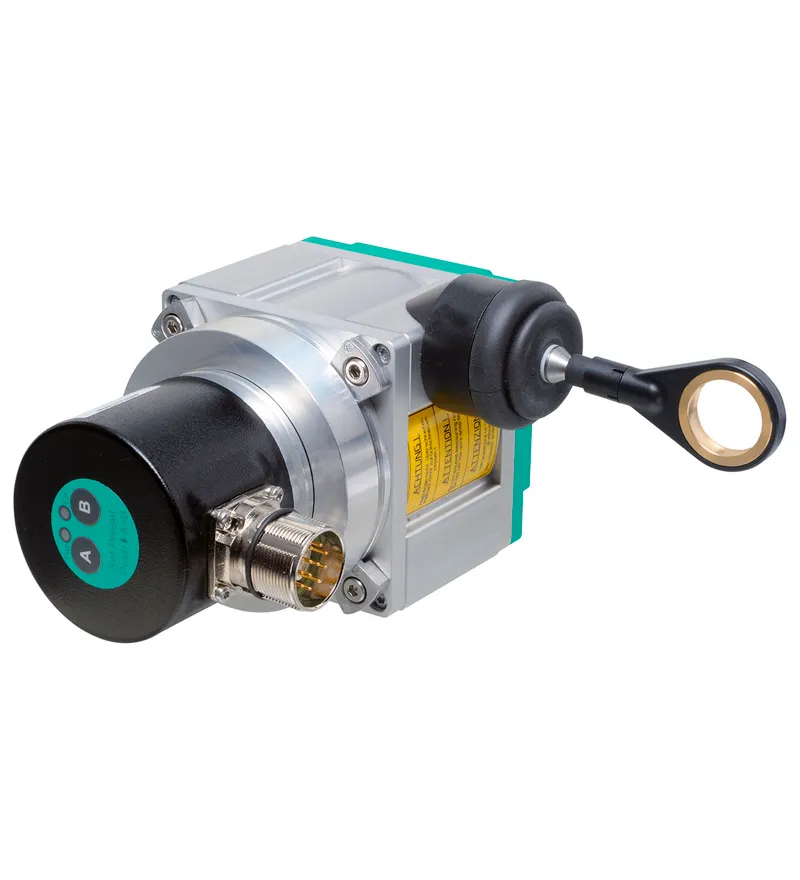

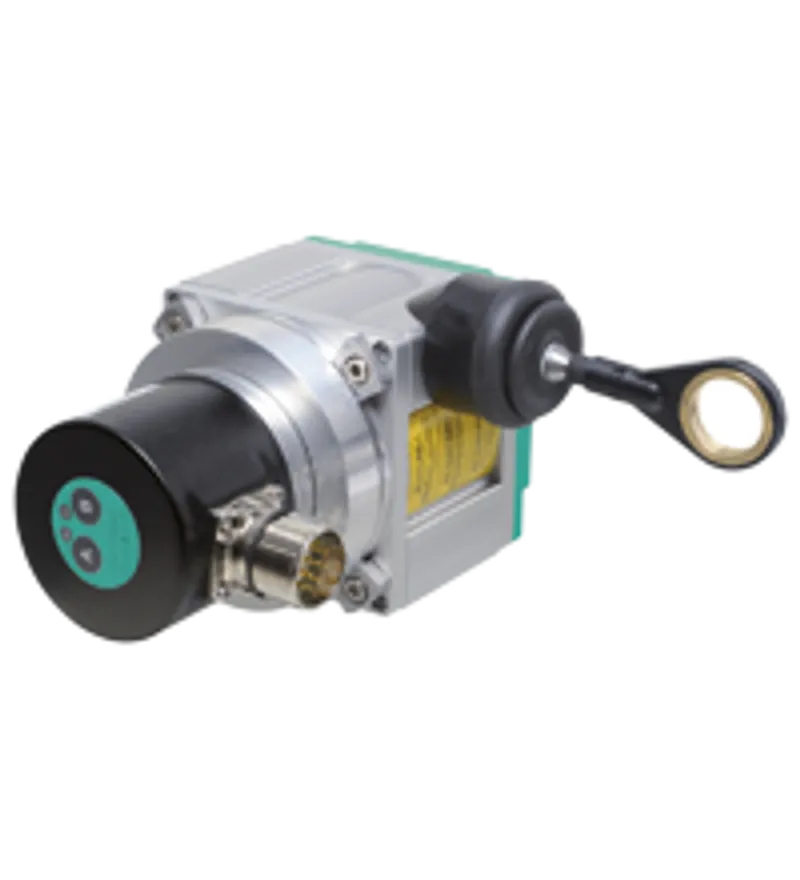

Cable pull rotary encoder. Cable pull rotary encoder with SSI interface, Robust aluminum drum housing, Drum travel when cable retracted using threaded spindle, Bellows with steel tip, Comprehensive accessories, Housing can be coated as an option (Hart Coat), Interface: SSI, Detection type: magnetic sampling, Construction type: 80 mm, 130 mm, 190 mm, Interface type: SSI, Input type: Selection of counting direction (cw/ccw). Detection type: magnetic sampling. Device type: Premium Line with SSI interface. Measuring length: 1000 ... 60000 mm. Construction type: 80 mm, 130 mm, 190 mm. Resolution: Cable pull:Design 80 mm: 0,024 mmDesign 130 mm: 0,041 mmDesign 190 mm: 0,059 mm Encoder: 25 Bit (13 Bit/revolution). B10d: 300000. Operating voltage: 4.75 ... 30 V DC. No-load supply current: typ. 50 mA. Power consumption: approx. 1.5 W. Time delay before availability: < 450 ms. Output code: Gray code, binary code. Code course (counting direction): adjustable. Interface type: SSI. Cycle time: < 100 µs. Standard conformity: RS 422. Input type: Selection of counting direction (cw/ccw). Signal voltage: . High4.75 V ... UB (cw descending)Low0 ... 2 V or unconnected (cw ascending): . High: 4.75 V ... UB (cw descending). Low: 0 ... 2 V or unconnected (cw ascending). Input current: < 6 mA. Input type: zero-set (PRESET 1) with falling edge. Signal voltage: . High4.75 V ... UBLow0 ... 2 V: . High: 4.75 V ... UB. Low: 0 ... 2 V. Input current: < 6 mA. Signal duration: min. 1.1 s. Connector: M12 connector, 8-pin or M23 connector, 12-pin. Cable: ∅7 mm, 6 x 2 x 0.14 mm2, 1 m (cable length, see order code). Degree of protection: DIN EN 60529, IP65. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Operating temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 1.35 mm. Bending radius: min. 17 mm. Breaking force: min. 1227 N. Material: . Cable pullanodized aluminum or Aluminum with Hart Coat coatingRotary encoderhousing: nickel-plated steel Flange: aluminumFlangeAluminumRopeStainless steel 1.4401/316: . Cable pull: anodized aluminum or Aluminum with Hart Coat coating. Rotary encoder: housing: nickel-plated steel Flange: aluminum. Flange: Aluminum. Rope: Stainless steel 1.4401/316. Life span: up to 106 Cycles

Specifications

General specifications

Detection type	magnetic sampling
Device type	Premium Line with SSI interface
Measuring length	1000 ... 60000 mm

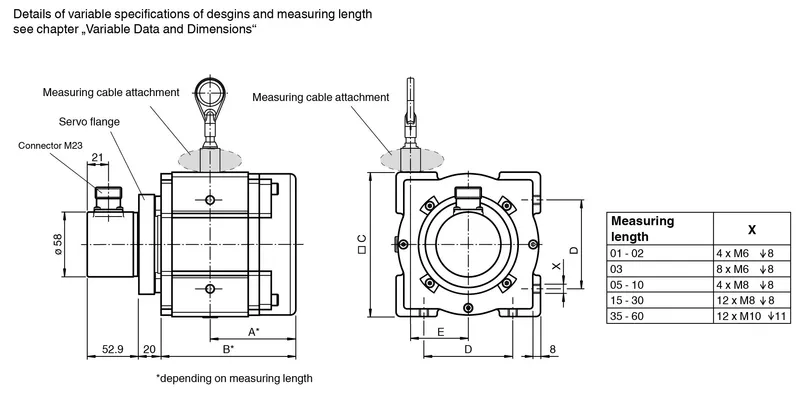

Construction type	80 mm, 130 mm, 190 mm
Resolution	Cable pull:Design 80 mm: 0,024 mmDesign 130 mm: 0,041 mmDesign 190 mm: 0,059 mm Encoder: 25 Bit (13 Bit/revolution)

Functional safety related parameters

B10d

300000

Electrical specifications

Operating voltage	4.75 ... 30 V DC UB
No-load supply current	typ. 50 mA I0
Power consumption	approx. 1.5 W P0
Time delay before availability	< 450 ms tv
Output code	Gray code, binary code
Code course (counting direction)	adjustable

Interface

Interface type	SSI
Cycle time	< 100 µs
Standard conformity	RS 422

Input 1

Input type	Selection of counting direction (cw/ccw)
Signal voltage
High4.75 V ... UB (cw descending)Low0 ... 2 V or unconnected (cw ascending)	High
High	4.75 V ... UB (cw descending)
Low	0 ... 2 V or unconnected (cw ascending)
Input current	< 6 mA

Input 2

Input type	zero-set (PRESET 1) with falling edge
Signal voltage
High4.75 V ... UBLow0 ... 2 V	High
High	4.75 V ... UB
Low	0 ... 2 V
Input current	< 6 mA
Signal duration	min. 1.1 s

Connection

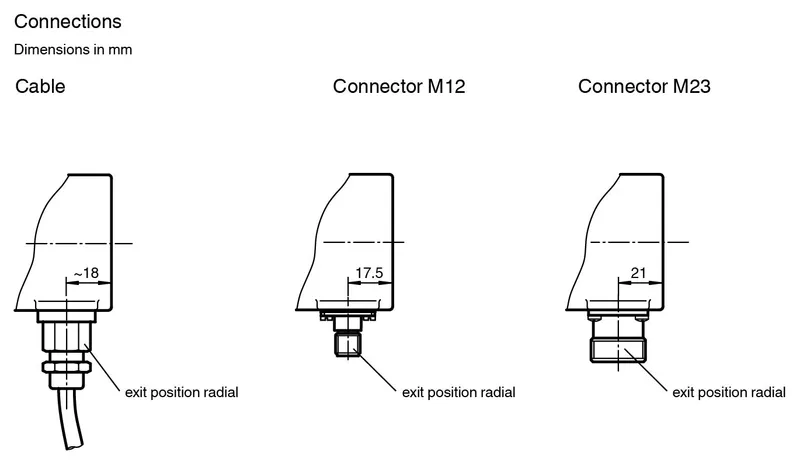

Connector	M12 connector, 8-pin or M23 connector, 12-pin
Cable	∅7 mm, 6 x 2 x 0.14 mm2, 1 m (cable length, see order code)

Standard conformity

Degree of protection	DIN EN 60529, IP65
Climatic testing	DIN EN 60068-2-3, no moisture condensation
Emitted interference	EN 61000-6-4:2007
Noise immunity	EN 61000-6-2:2005

Ambient conditions

Ambient temperature	-30 ... 70 °C (-22 ... 158 °F)
Operating temperature	-30 ... 70 °C (-22 ... 158 °F)
Storage temperature	-30 ... 70 °C (-22 ... 158 °F)
Relative humidity	98 % , no moisture condensation

Mechanical specifications

Rope diameter	1.35 mm
Bending radius	min. 17 mm
Breaking force	min. 1227 N
Material
Cable pullanodized aluminum or Aluminum with Hart Coat coatingRotary encoderhousing: nickel-plated steel Flange: aluminumFlangeAluminumRopeStainless steel 1.4401/316	Cable pull
Cable pull	anodized aluminum or Aluminum with Hart Coat coating
Rotary encoder	housing: nickel-plated steel Flange: aluminum
Flange	Aluminum
Rope	Stainless steel 1.4401/316
Life span	up to 106 Cycles
