Pepperl Fuchs DVS78E
Singleturn absolute rotary encoder
- MPN
- DVS78E
- Category
- Absolute Rotary Encoders
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs DVS78E?
Up to 16 Bit singleturn
ATEX approval
IECEx approval
Flameproof enclosure
Removable connection cap
Up to 16 Bit singleturn, ATEX approval, IECEx approval, Flameproof enclosure, Removable connection cap, Enclosure type: 78 mm, Type of shaft: Solid shaft, Interface: DeviceNet, Application: Ex protection, Detection type: photoelectric sampling, Interface type: DeviceNet
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T160346 |
| Detection type | photoelectric sampling |
| Device type | Singleturn absolute rotary encoder |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 25 a |
| L10 | 7.7 E+9 at 3000 rpm |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| No-load supply current | max. 230 mA at 10 V DC max. 100 mA at 24 V DC I0 |
| Linearity | ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit |
| Output code | binary code |
| Code course (counting direction) | cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending) |
Interface
| Interface type | DeviceNet |
| Resolution: Single turn | up to 16 Bit |
| Resolution: Overall resolution | up to 16 Bit |
| Transfer rate | max. 0.5 MBit/s |
Connection
| Cable | ∅ 10.2 mm, Radox 9 x 0.5 mm2 |
| Terminal compartment | see order information |
Standard conformity
| Degree of protection | DIN EN 60529, IP66 |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation |
| Emitted interference | EN 61000-6-4:2007/A1:2011 |
| Noise immunity | EN 61000-6-2:2005 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 3 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz |
Approvals and certificates
| IECEx approval: Equipment protection level Gb | IECEx ITS 15.0061X |
| ATEX approval: Equipment protection level Gb | ITS 15 ATEX 18372X |
Ambient conditions
| Operating temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

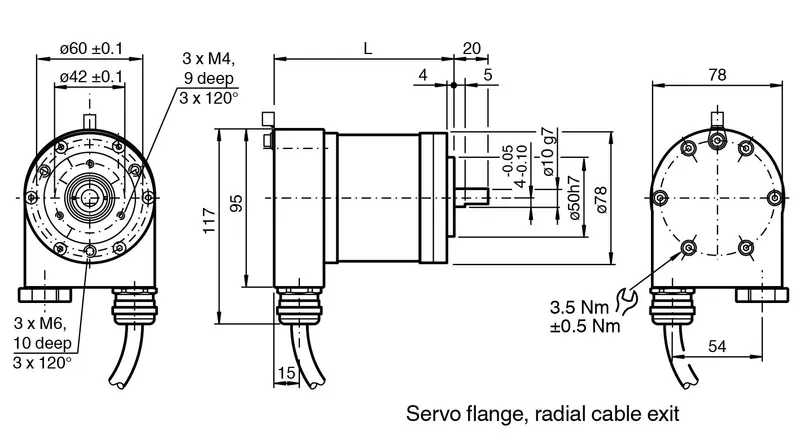

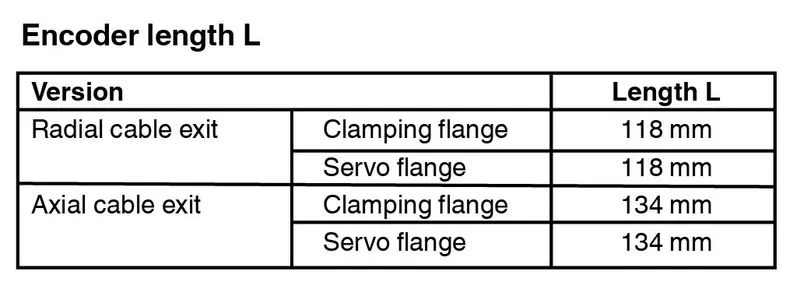

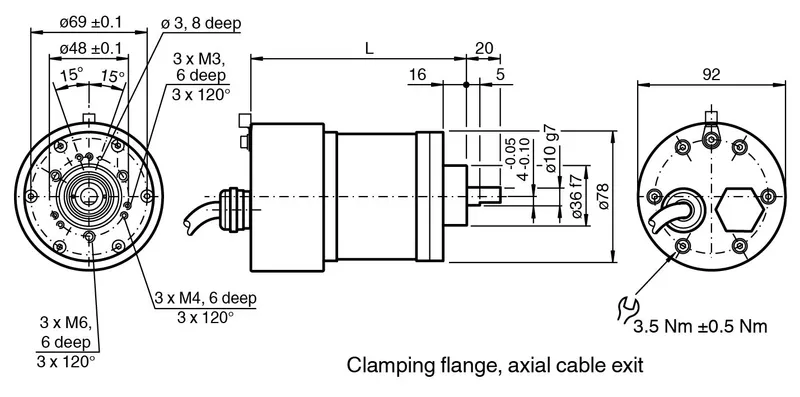

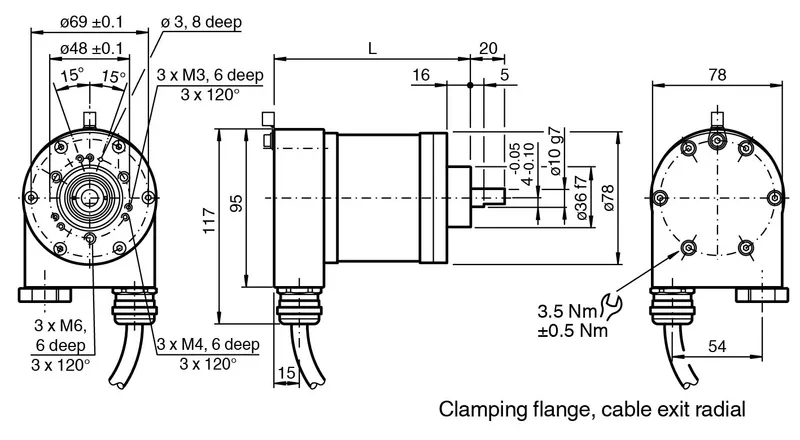

Mechanical specifications
| Material: Combination 1 | housing: anodized aluminum flange: anodized aluminum shaft: Stainless steel 1.4404 / AISI 316L |
| Material: Combination 2 (Inox) | housing: Stainless steel 1.4404 / AISI 316L flange: Stainless steel 1.4404 / AISI 316L shaft: Stainless steel 1.4404 / AISI 316L |
| Mass | approx. 2600 g (combination 1) approx. 3900 g (combination 2) |
| Rotational speed | max. 3000 min -1 |
| Moment of inertia | 180 gcm2 |
| Starting torque | ≤ 4 Ncm |
| Shaft load: Axial | 60 N |
| Shaft load: Radial | 80 N |
General information
| Use in the hazardous area | see instruction manuals |
