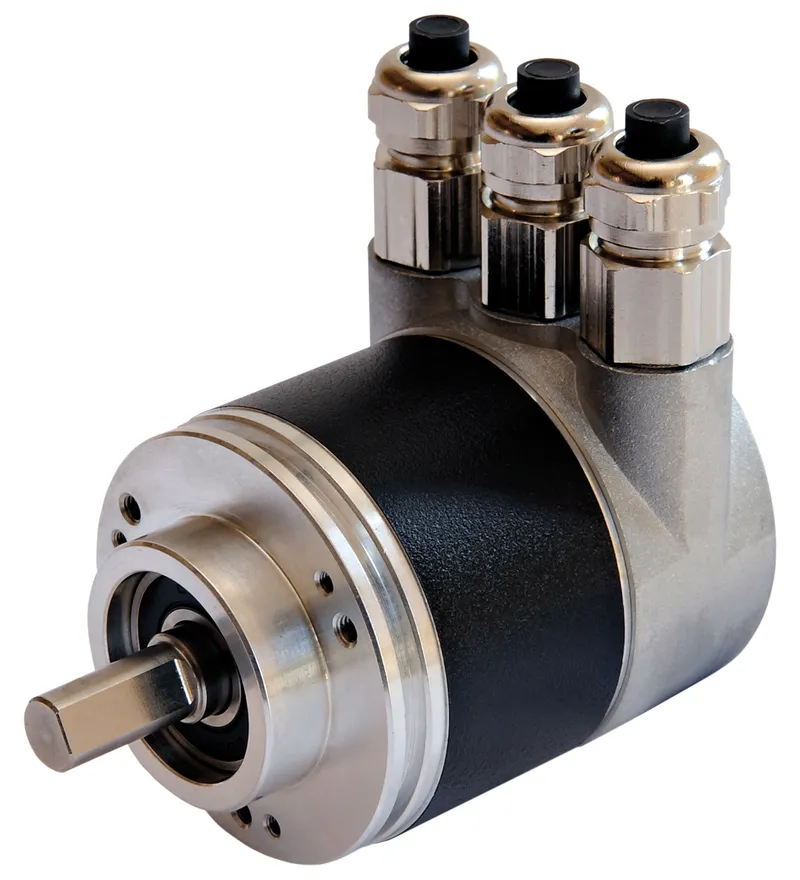

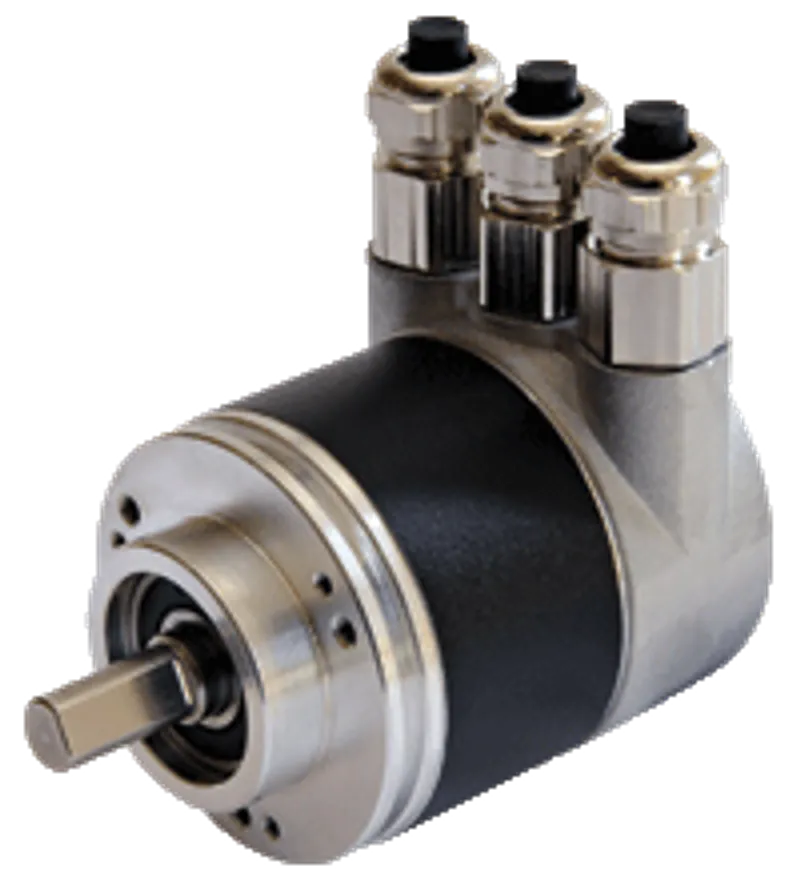

Pepperl Fuchs DVS58
Singleturn absolute rotary encoder
- MPN
- DVS58
- Category
- Absolute Rotary Encoders
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs DVS58?
Industrial standard housing ∅58 mm
16 Bit singleturn
Galvanically isolated DeviceNet interface
Servo or clamping flange
Industrial standard housing ∅58 mm, 16 Bit singleturn, Galvanically isolated DeviceNet interface, Servo or clamping flange, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: DeviceNet, Detection type: photoelectric sampling, Interface type: DeviceNet
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T49156 |
| Detection type | photoelectric sampling |
| Device type | Singleturn absolute rotary encoder |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| No-load supply current | max. 230 mA at 10 V DC max. 100 mA at 24 V DC I0 |
| Time delay before availability | < 250 ms tv |
| Linearity | ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit |
| Output code | binary code |
| Code course (counting direction) | cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending) |
Interface
| Interface type | DeviceNet |
| Resolution: Single turn | up to 16 Bit |
| Resolution: Overall resolution | up to 16 Bit |
| Transfer rate | max. 0.5 MBit/s |
Connection
| Terminal compartment | in removable housing cover |
Standard conformity
| Degree of protection | DIN EN 60529, IP65 IP66 (with shaft seal) |
| Climatic testing | DIN EN 60068-2-30 , no moisture condensation |
| Emitted interference | DIN EN 61000-6-4 |
| Noise immunity | DIN EN 61000-6-2 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz |
Approvals and certificates
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
Ambient conditions
| Operating temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Mechanical specifications
| Material: Combination 1 | housing: powder coated aluminum flange: aluminum shaft: stainless steel |
| Material: Combination 2 (Inox) | housing: stainless steel flange: stainless steel shaft: stainless steel |
| Mass | approx. 550 g (combination 1) approx. 1000 g (combination 2) |
| Rotational speed | max. 12000 min -1 |
| Moment of inertia | 30 gcm2 |
| Starting torque | ≤ 3 Ncm (version without shaft seal) |
| Shaft load: Axial | 40 N |
| Shaft load: Radial | 110 N |
| Dimensions: Diameter | 58 mm |
