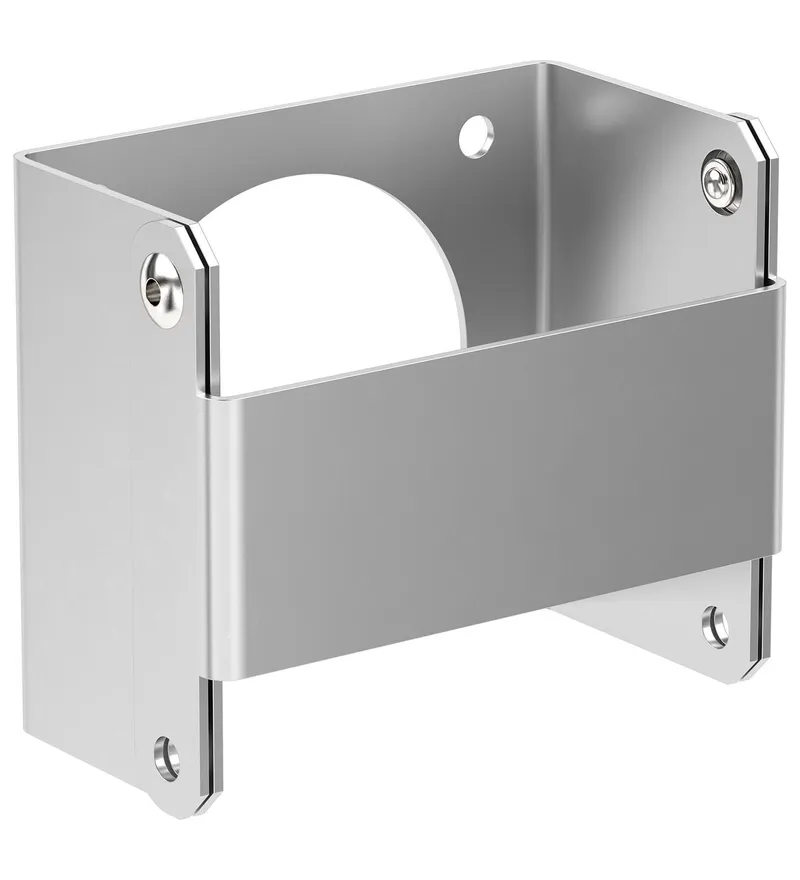

Pepperl Fuchs CFP.ZDT.SP – Padlockable Shroud (Ex e)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CFP.ZDT.SP be shipped?
CFP.ZDT.SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CFP.ZDT.SP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CFP.ZDT.SP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFP.ZDT.SP, subject to availability and destination.
• SS316L shroud, padlockable
• Ex e certified
• Stainless Steel
• Component for appropriately certified Ex e enclosures
SS316L shroud, padlockable, Ex e certified, Stainless Steel, Component for appropriately certified Ex e enclosures, Function: Emergency stop padlockable shroud, cover-mounted
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 290174 |
| Function | Emergency stop padlockable shroud, cover-mounted |
| Color | Silver |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Degree of protection | IP66 |
| Material | Stainless steel 1.4401 / AISI 316 |
| Mass | 97 g |

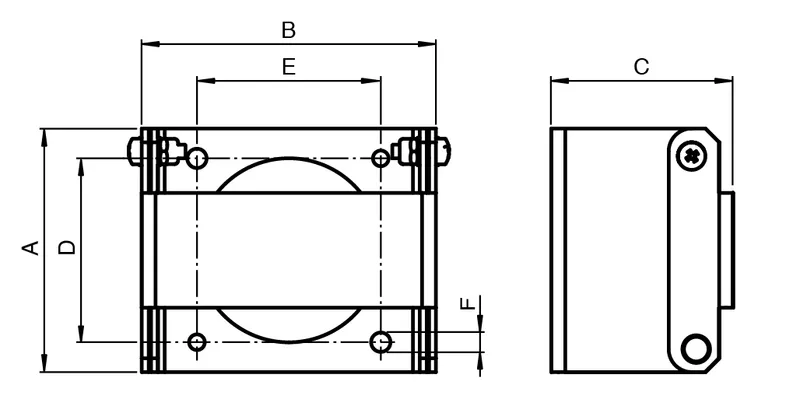

| Dimensions: External dimension (A) | 53 mm |
| Dimensions: External dimension (B) | 70 mm |
| Dimensions: External dimension (C) | 39.5 mm |
| Dimensions: Internal dimension (D) | 40 mm |
| Dimensions: Internal dimension (E) | 40 mm |
| Dimensions: Internal dimension (F) | 4.2 mm |
| Tightening torque | 1.3 ... 1.5 Nm |
| Mounting | use with base-mounted and cover-mounted contact modules |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3339U |
General information
| Supplementary information | For more information please contact Pepperl+Fuchs. |
| Enclosure type | LR* SR*.CS* GR.CS* |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet CFP.ZDT.SP | |
| Manual | PDF · 1.7 MB |
