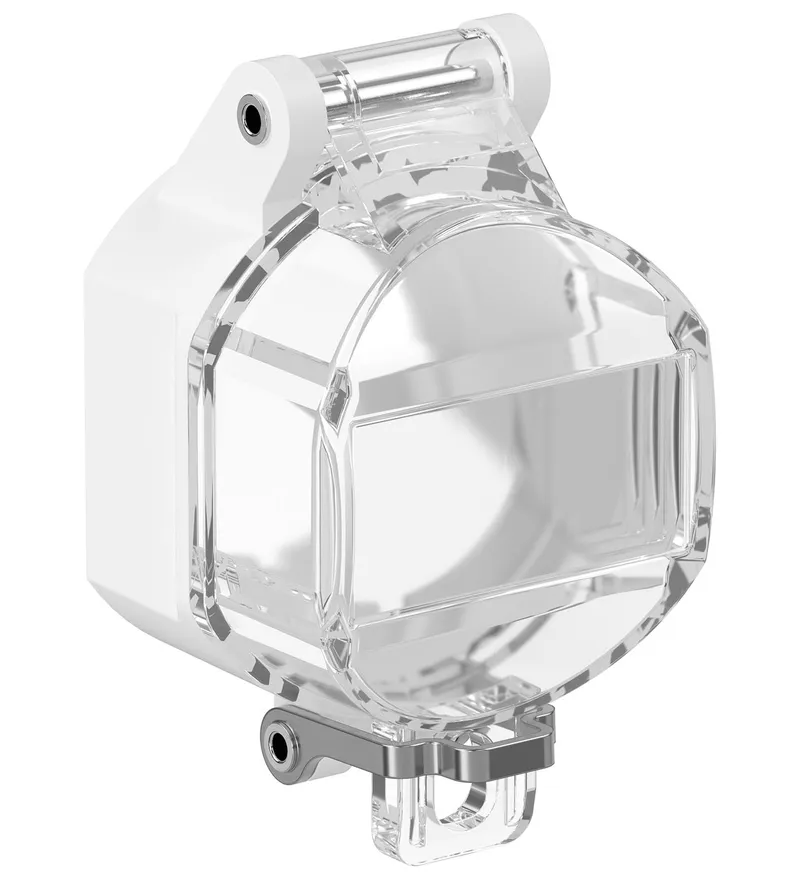

Pepperl Fuchs CFP.ZB.SP – Actuator Flap (Ex e)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CFP.ZB.SP be shipped?
CFP.ZB.SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CFP.ZB.SP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CFP.ZB.SP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFP.ZB.SP, subject to availability and destination.
• Protective flap for small actuator heads
• Ex e certified
• Polycarbonate
• Component for appropriately certified Ex e enclosures
Protective flap for small actuator heads, Ex e certified, Polycarbonate, Component for appropriately certified Ex e enclosures, Function: Small actuator head protective flap, cover-mounted, Marking: [exsign] II 2 GD , Ex e IIC Gb , Ex tb IIIC Db
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | 290165 |
| Function | Small actuator head protective flap, cover-mounted |
| Color | clear |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Degree of protection | IP66 |
| Material | Polycarbonate |
| Mass | 54 g |

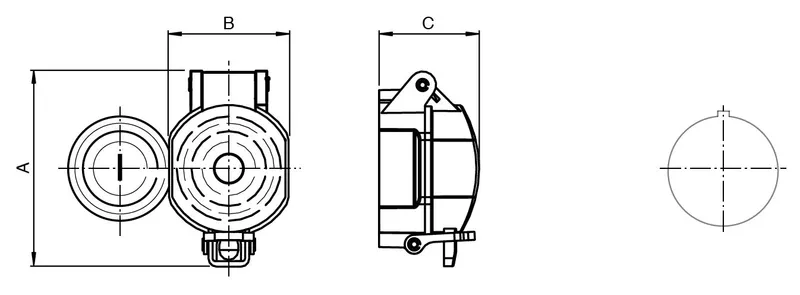

| Dimensions: External dimension (A) | 72 mm |
| Dimensions: External dimension (B) | 44 mm |
| Dimensions: External dimension (C) | 37 mm |
| Mounting | use with cover-mounted contact modules |
Ambient conditions
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 16 ATEX 3339U |
| Marking | II 2 GD Ex e IIC Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx CML 16.0114U |
General information
| Supplementary information | For more information please contact Pepperl+Fuchs. |
| Enclosure type | LR* SR*.CS* GR.CS* |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet CFP.ZB.SP | |
| Manual | PDF · 1.7 MB |
More Pepperl Fuchs parts
Available on requestLabel Holder (Ex e) CFP.Z3.SPAvailable on requestLabel Holder (Ex e) CFP.Z7.SP

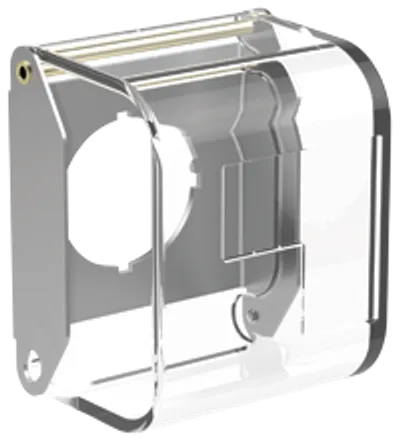

Available on requestActuator Flap (Ex e) CFP.ZA.SP

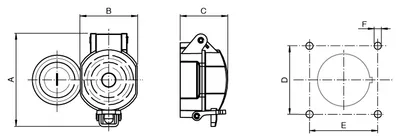

Available on requestActuator Flap (Ex e) CFP.ZAR-4.SP
