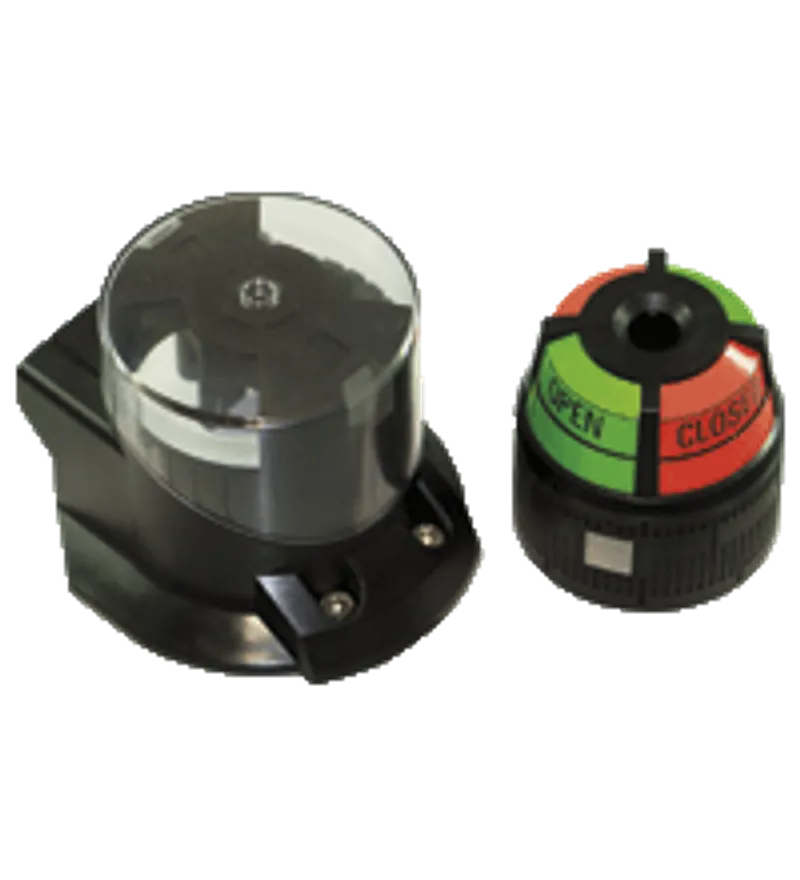

Activator BT65H-F31K2-RG-EN-Y — photo 1 of 3

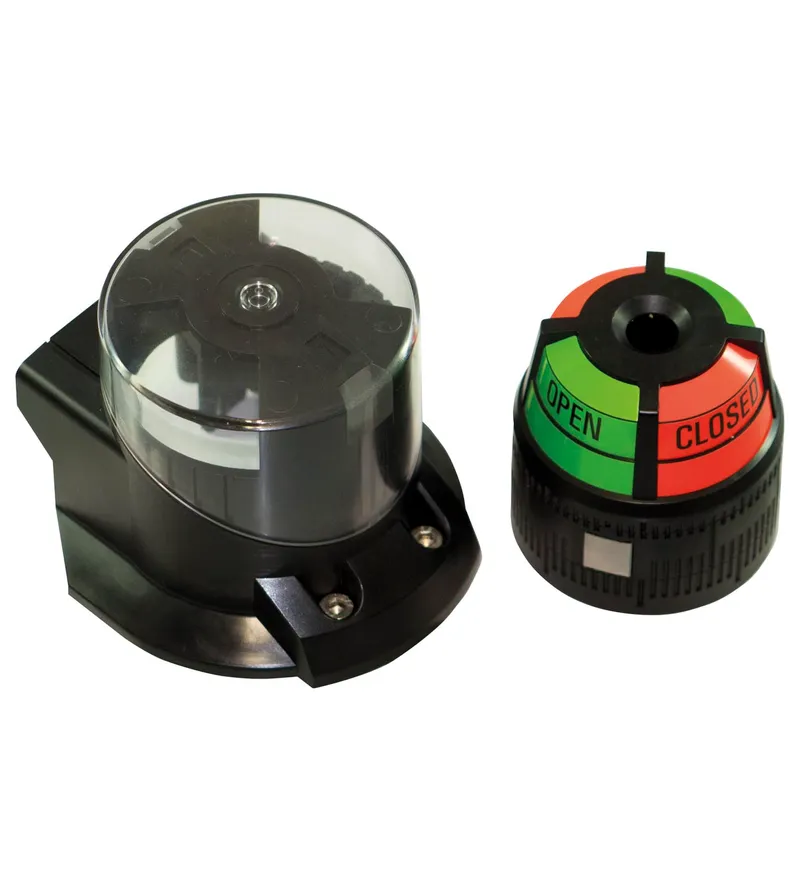

Activator BT65H-F31K2-RG-EN-Y — photo 2 of 3

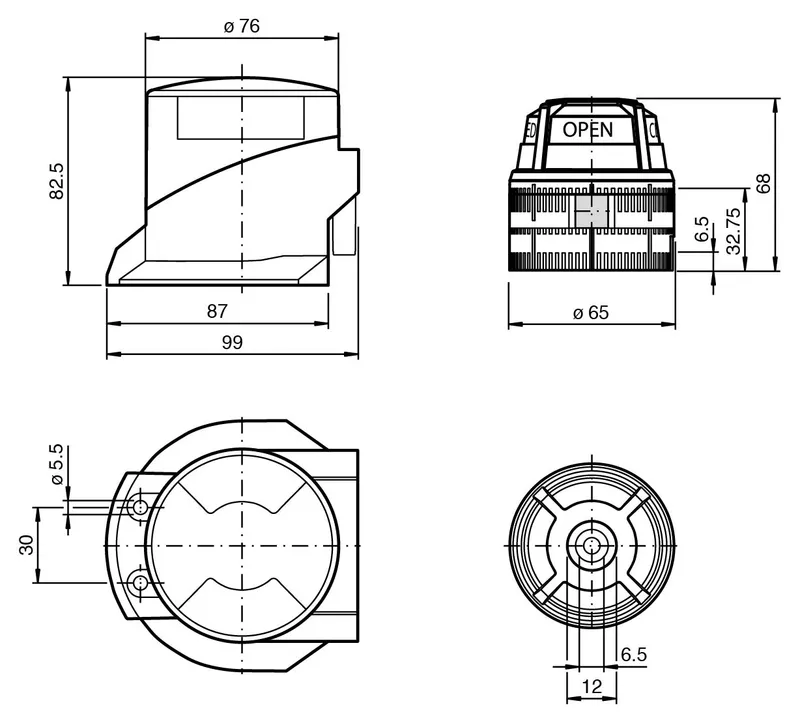

Activator BT65H-F31K2-RG-EN-Y — photo 3 of 3

Available on request

Pepperl Fuchs BT65H-F31K2-RG-EN-Y – Activator

MPN: BT65H-F31K2-RG-EN-Y · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mounting Accessories
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can BT65H-F31K2-RG-EN-Y be shipped?

BT65H-F31K2-RG-EN-Y is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BT65H-F31K2-RG-EN-Y in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BT65H-F31K2-RG-EN-Y and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BT65H-F31K2-RG-EN-Y, subject to availability and destination.

• High-visibility valve position display

• Protection against contamination and damage

• Two actuation targets in two levels with 5° setting grid

• Suitable for right and left rotating drives

• Enhanced corrosion resistance with metal components made of 1.4401 / AISI 316 (V4A) stainless steel

Activator for F31K2 series

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70203336
Ring diameter	max. 65 mm
Spring ring height	max. 6 mm
Lifecycle	Active (current Pepperl+Fuchs product)

Nominal ratings

Valve status indicator

red = CLOSED green = OPEN

Compliance with standards and directives

Standard conformity: Standards

VDI / VDE 3845

Ambient conditions

Ambient temperature

-40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Shaft diameter	≤ 49 mm
Shaft height	20 mm and 30 mm
Mounting hole pattern	30 x 80 mm
Material: Housing	PC
Material: Actuator	PA
Material: Spacer disk	PA (1 unit, 10 mm strong)
Material: Mounting screw	Stainless steel 1.4401 / AISI 316
Material: Activation target	Stainless steel 1.4401 / AISI 316 (integrated)
Tightening torque, fastening screws	≤ 1.5 Nm
