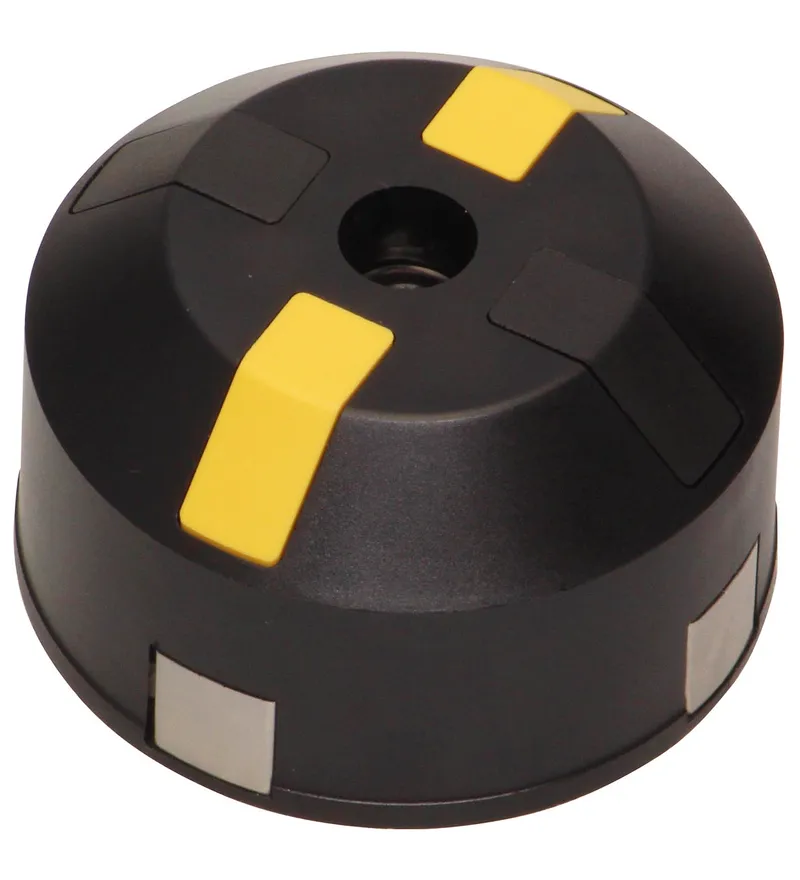

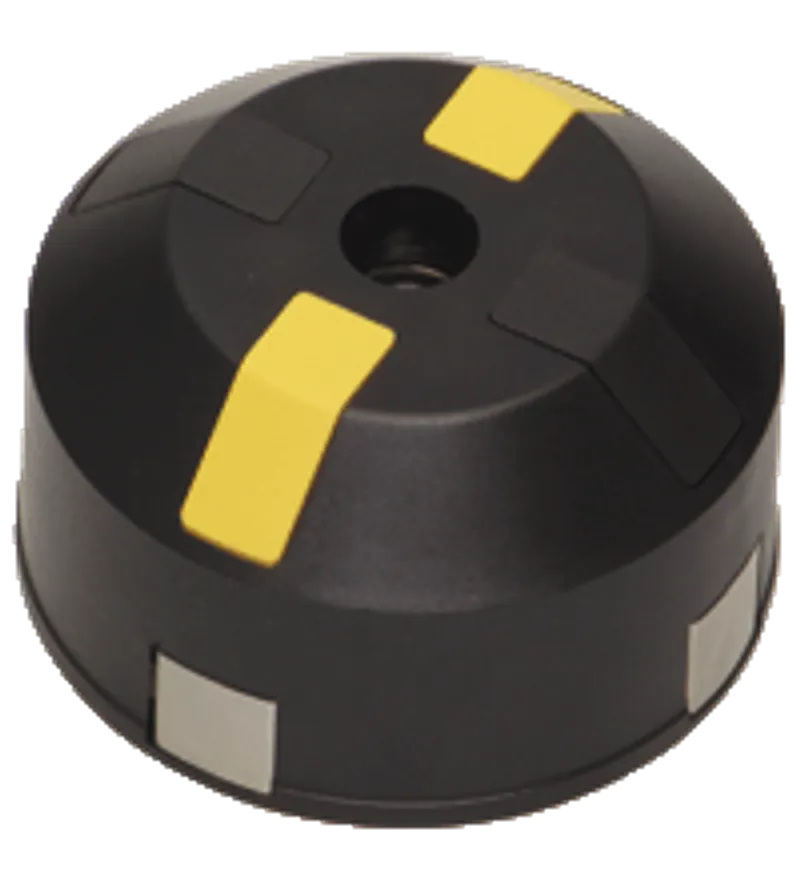

Pepperl Fuchs BT65H – Activator

MPN: BT65H · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can BT65H be shipped?

BT65H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BT65H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BT65H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BT65H, subject to availability and destination.

• Four fixed actuating lugs, offset by 90°

• For right and left rotating drives with 180° rotational motion

• Enhanced corrosion resistance with metal components made of 1.4401 / AISI 316 (V4A) stainless steel

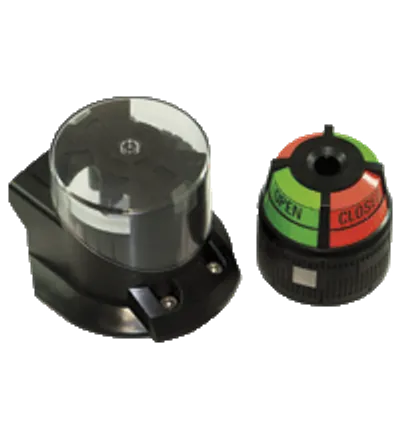

Activator for F31 series

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70203335
Ring diameter	max. 65 mm
Spring ring height	max. 6 mm
Lifecycle	Active (current Pepperl+Fuchs product)

Ambient conditions

Ambient temperature

-40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Shaft diameter	< 58 mm
Shaft height	20 mm and 30 mm
Mounting hole pattern	30 x 80 mm
Material: Housing	Mounting component: PA
Material: Spacer disk	PA (1 unit, 10 mm strong)
Material: Stopper cap	PE (1 unit black)
Material: Identification stopper	PA (2 units yellow, 2 units black)
Material: Mounting screw	for activator: 1.4401 / AISI 316 (1 piece M6 x 25) for sensors - F31: 1.4401 / AISI 316 (2 pieces M5 x 16) (2 pieces M5 x 12)

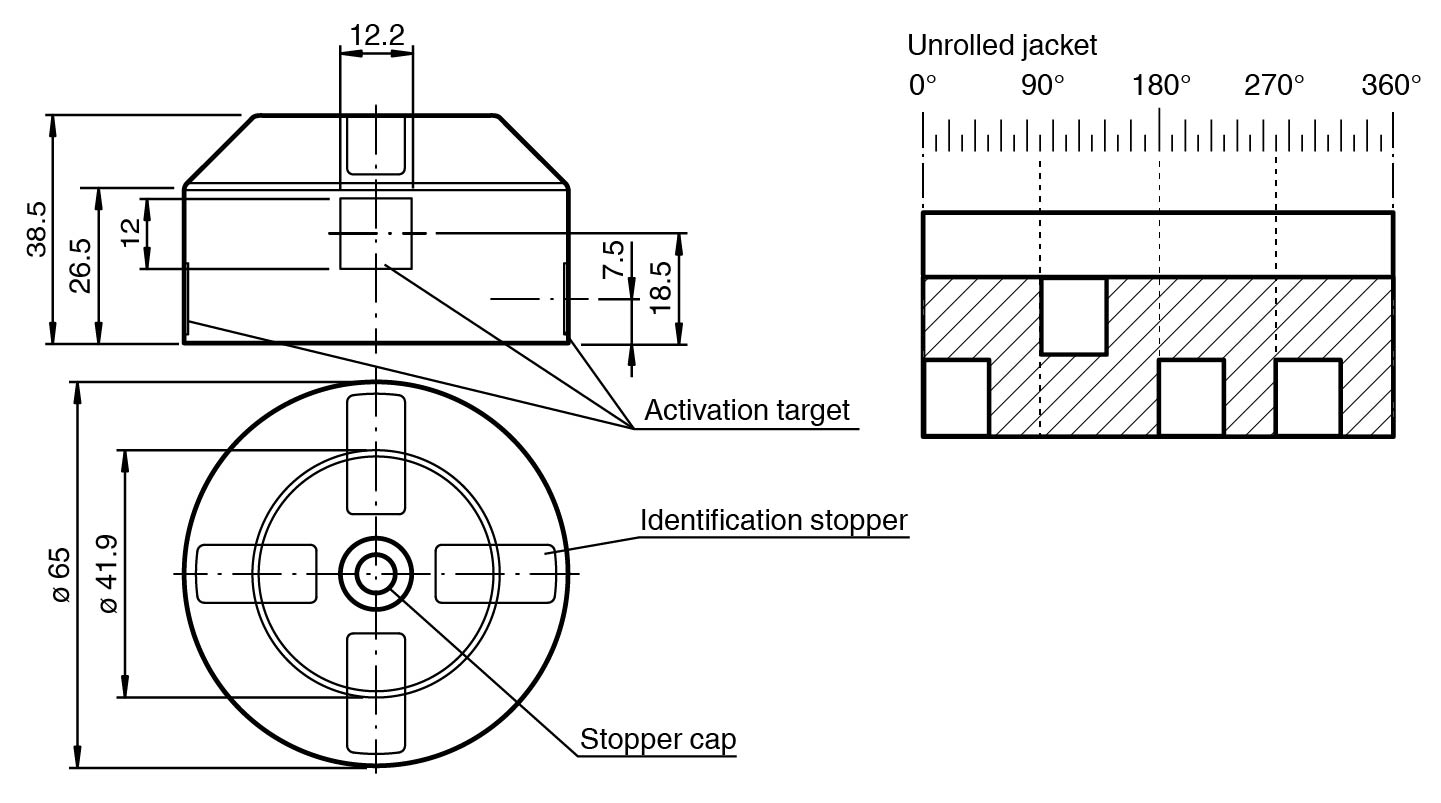

Material: Activation target	Stainless steel 1.4401 / AISI 316 (integrated)
Mass	40 g
Tightening torque, fastening screws	≤ 1.5 Nm
Dimensions: Height	38.5 mm
Dimensions: Diameter	65 mm
