WS0-XTDI80202 Mitsubishi MELSEC-QS/WS Safety Safety I/O

MPN: WS0-XTDI80202 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-QS/WS Safety – Safety controller
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can WS0-XTDI80202 be shipped?

WS0-XTDI80202 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up WS0-XTDI80202 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for WS0-XTDI80202 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WS0-XTDI80202, subject to availability and destination.

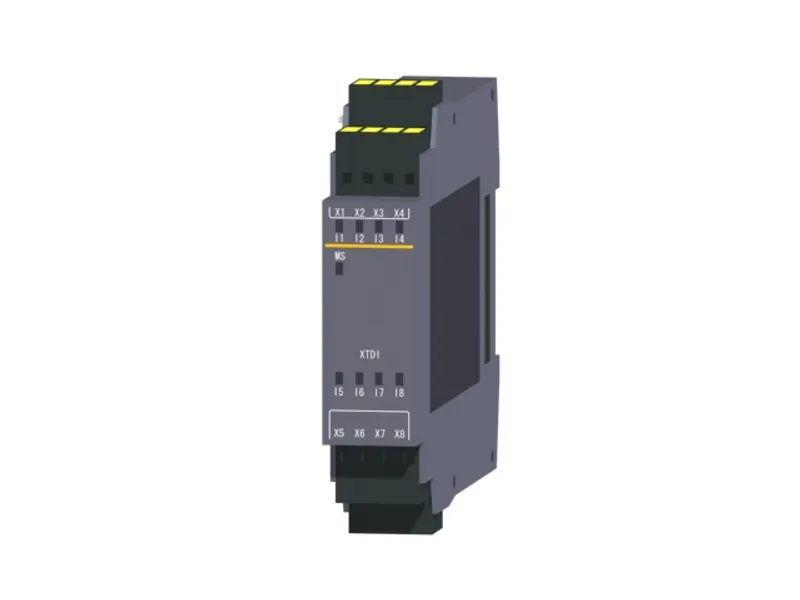

The Mitsubishi Electric WS0-XTDI80202 is a safety I/O in the MELSEC-QS/WS Safety. Safety input: 8 points (single-channel)/4 points (dual-channel), spring-clamp terminal block Abbreviation: WS0-XTDI Powered by SICK. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-QS/WS Safety
Category	Safety I/O
Type	Safety input
Outline	Safety input: 8 points (single-channel)/4 points (dual-channel), spring-clamp terminal block Abbreviation: WS0-XTDI Powered by SICK

Specifications

Safety Integrity Level	SIL3 (IEC 61508, IEC 62061)
Category	Category 4 (EN/ISO 13849-1)
Performance Level	PLe (EN/ISO 13849-1)
PFHd (mean probability of a dangerous failure per hour)	0.4 × 10 -9
TM (mission time)	20 years (EN/ISO 13849-1)
Protection degree	Terminals: IP 20 (IEC 60529) Housing: IP 40 (IEC 60529)
Electromagnetic compatibility	Class A (EN 61000-6-2, EN 61000-6-4)
Power input via FLEXBUS+ without currents to X1...X8	Maximum 3.3 W
Data interface	Backplane bus (FLEXBUS+)
External interface	Dual level spring clamp terminals
External dimensions: Height	106.5 mm
External dimensions: Width	22.5 mm
External dimensions: Depth	120.8 mm
Weight	150 g
Input circuit (I1...I8): Number of inputs	8
Input circuit (I1...I8): Input voltage HIGH	13...30 V DC
Input circuit (I1...I8): Input voltage LOW	-5...+5 V DC
Input circuit (I1...I8): Input current HIGH	2.4...3.8 mA
Input circuit (I1...I8): Input current LOW	-2.5...2.1 mA
Input circuit (I1...I8): Input reverse current in case of ground interruption	Maximum 20 mA 1.5 kΩ effective reverse resistance to power supply
Input circuit (I1...I8): Switching current (with mechanical contacts)	14.4 mA at 5 V 3 mA at 24 V
Input circuit (I1...I8): Input capacitance	Maximum 10 nF
Input circuit (I1...I8): Discrepancy times	4 ms...30 s, configurable
Test outputs (X1...X8): Number of output points	8 (with 2 test pulse generators)
Test outputs (X1...X8): Output type	PNP semiconductor, short-circuit protected, cross-circuit monitoring (selectable)
Test outputs (X1...X8): Output voltage	16...30 V DC
Test outputs (X1...X8): Output current	Maximum 120 mA at each of the two test signal generators (X1/X3/X5/X7 or X2/X4/X6/X8) This means that a maximum of 8 testable sensor cascades per module with maximum 30 mA each are possible. The total current of the MELSEC-WS safety controllers is limited to a maximum of 1.28 A. This corresponds to e.g. 32 inputs of testable sensors with 30 mA each and 64 inputs of WS0-XTIO or WS0-XTDI modules.
Test outputs (X1...X8): Test pulse rate (test period)	1...25 Hz, configurable
Test outputs (X1...X8): Test pulse duration (test gap)	1...100 ms, configurable
Test outputs (X1...X8): Load capacity	1 µF for test gap ≥ 4 ms 0.5 µF for test gap 1 ms
Test outputs (X1...X8): Cable resistance	Maximum 100 Ω

Specifications

General specifications

Refer to the general specifications of the CPU module.
