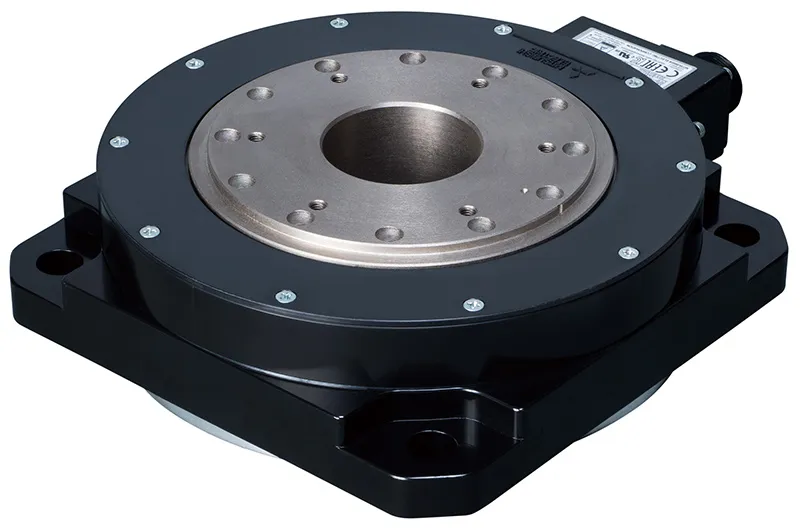

Mitsubishi Electric TM-RG2M009G30

Mitsubishi MELSERVO servo MELSERVO-J5 series/MELSERVO-J4 series

MPN
TM-RG2M009G30
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric TM-RG2M009G30?

The Mitsubishi Electric TM-RG2M009G30 is a MELSERVO-J5 series/MELSERVO-J4 series in the MELSERVO servo. 9. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSERVO servo
CategoryMELSERVO-J5 series/MELSERVO-J4 series
Type200 V AC
Subtypeφ230
Outline9

Specifications

SeriesMELSERVO-J5 series/MELSERVO-J4 series
Product nameTM-RG2M Series
Power class200 V AC
Model name *1TM-RG2M009G30
Compatible servo amplifierFor the compatible servo amplifiers, refer to the following and the relevant catalog or manual. For the MELSERVO-J5 series, " click here ". For the MELSERVO-J4 series, " click here ".
Motor outer diameter(frame dimensions) [mm]φ230
Power supply capacity [kVA] *2 *500.9
Continuous running duty: Rated output [kW] *20.283
Continuous running duty: Rated torque [N・m] *2 *39
Maximum torque [N・m] *227
Rated speed [r/min]300
Maximum speed [r/min]600
Permissible instantaneous speed [r/min]690
Power rate at continuous rated torque [kW/s] *25.5
Rated current [A] *22.2
Maximum current [A] *26.7
Moment of inertia J [x 10 -4 kg・m 2 ]147
Recommended load to motor inertia ratio *420 times or less
Absolute accuracy [s] *5±12.5
Speed/position detectorAbsolute/incremental 22-bit encoder *50 4194304 pulses/rev
TypePermanent magnet synchronous motor
ThermistorBuilt-in
Insulation class155 (F)
StructureTotally enclosed, natural cooling (IP rating: IP40) *6
Environment: Ambient temperatureOperation: 0 °C to 60 °C (non-freezing) *7 , Storage: -15 °C to 70 °C (non-freezing)
Environment: Ambient humidityOperation: 10 %RH to 80 %RH (non-condensing), Storage: 10 %RH to 90 %RH (non-condensing)
Environment: Ambience *8 *9Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Environment: Altitude2000 m or less above sea level *10
Environment: Vibration resistance *50X: 49 m/s 2 Y: 49 m/s 2
Vibration rankV10 *50
Satisfied standardsRefer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Rotor permissible load *50: Moment load [N・m]65
Rotor permissible load *50: Axial load [N]3800
Mass [kg]8.3
