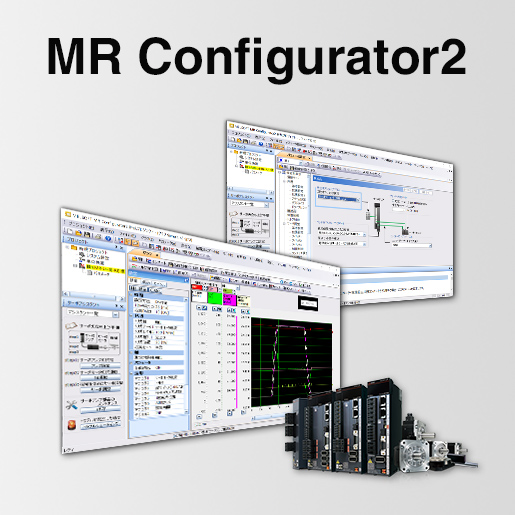

Mitsubishi Electric SW1DND-MRC2-EC

Mitsubishi MELSERVO servo MELSOFT MR Configurator2

MPN
SW1DND-MRC2-EC
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric SW1DND-MRC2-EC?

The Mitsubishi Electric SW1DND-MRC2-EC is a MELSOFT MR Configurator2 in the MELSERVO servo. Setup software for AC servo Site license (English version). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSERVO servo
CategoryMELSOFT MR Configurator2
OutlineSetup software for AC servo Site license (English version)

Specifications

Product nameMELSOFT MR Configurator2
Model nameSW1DND-MRC2-EC
LanguageEnglish
LaiseceSite license
ProjectNew/Open/Save/Save As/Delete Project, Read Other Format, Write Other Format, System Setting, Print
ParameterParameter Setting, Network Parameter, Axis Name Setting, Parameter Converter
SafetySafety parameter setting, Change password, Initialize password
Positioning-dataPoint Table, Program, Indirect Addressing, Cam Data
MonitorDisplay All, I/O Monitor, Graph, ABS Data Display, Object Monitor
DiagnosisAlarm Display, Alarm Onset Data, Drive recorder, No Motor Rotation, System Configuration, Life Diagnosis, Machine Diagnosis, Linear Diagnosis, Fully Closed Loop Diagnosis, Gear Failure Diagnosis, Encoder Communication Diagnosis
Test OperationJOG Operation, Positioning Operation, Motor-Less Operation, DO Forced Output, Program Operation, Single-Step Feed, Test Operation Information
AdjustmentOne-Touch Tuning, Tuning, Multi-Axis Tuning, Machine Analyzer, Advanced Gain Search
OthersServo Assistant, Update Parameter Setting Range, Machine Unit Conversion Setting, Switch Display Language, Axis Label Name Settings, Add-ons, Help
Operating environment: OSMicrosoft ® Windows ® 11 Education Microsoft ® Windows ® 11 Enterprise Microsoft ® Windows ® 11 Pro Microsoft ® Windows ® 11 Home
Operating environment: CPU2 or more cores on a compatible 64-bit processor or System on a Chip (SoC)
Operating environment: Memory4 GB or more recommended
Operating environment: Free hard disk space1.5 GB or more
Operating environment: MonitorResolution 1024 × 768 or more, 16-bit high color, Compatible with above personal computers
Operating environment: USB cableMR-J3USBCBL3M
Operating environment: Ethernet cableCable type: Category 5e or higher, (double shielded/STP) straight cable Standard: IEEE802.3 (1000BASE-T) or ANSI/TIA/EIA-568-B (Category 5e) Connector: RJ-45 connector with shield
Remarks1. MR Configurator2 can be obtained by either of the following: ·Purchase MR Configurator2 alone. ·Purchase GX Works3 or MT Works2: MR Configurator2 is included in GX Works3 and MT Works2 with software version 1.34L or later. 2. Each servo amplifier is supported by MR Configurator2 with the following or later software version. ·MR-J5_-G/MR-J5-A: 1.100E ·MR-J5D_-G: 1.125F ·MR-J5-G4-HS: 1.150G ·MR-J

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

SW1DND-MRC2-EC: frequently asked questions

When can SW1DND-MRC2-EC be shipped?

SW1DND-MRC2-EC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SW1DND-MRC2-EC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SW1DND-MRC2-EC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SW1DND-MRC2-EC, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

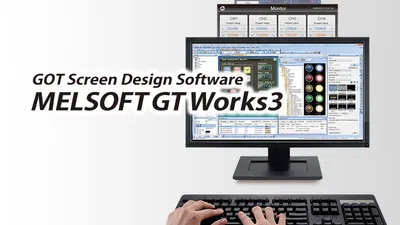

Mitsubishi Electric SW1DND-GTWK3-EC – Mitsubishi GOT HMI Software
