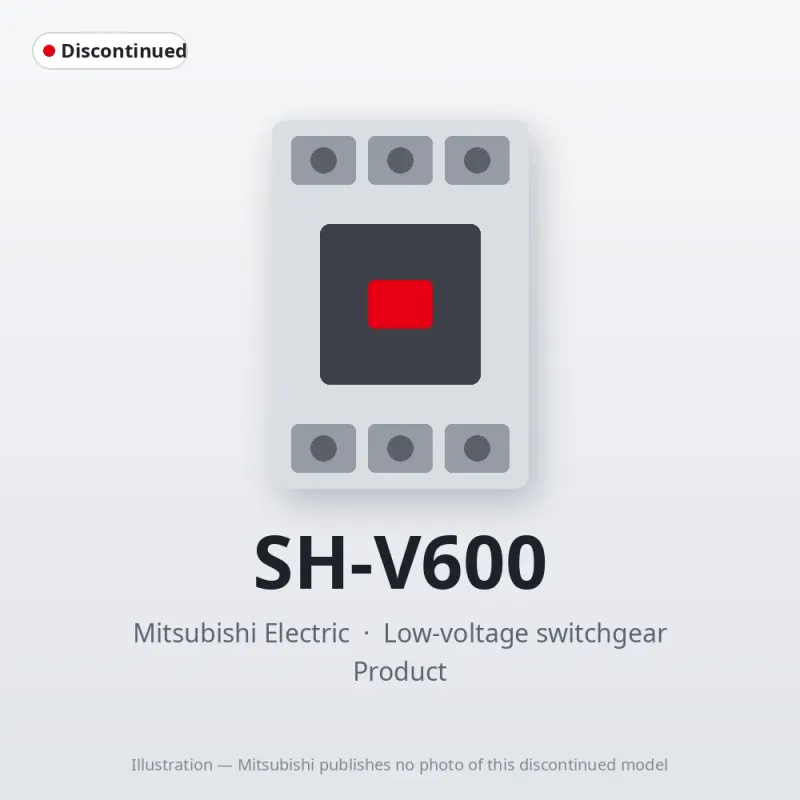

Mitsubishi Electric SH-V600

Mitsubishi Low-voltage switchgear Magnetic Contactor

MPN
SH-V600
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original SH-V600 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric SH-V600?

The Mitsubishi Electric SH-V600 is a magnetic Contactor in the Low-voltage switchgear. Representative rating 630A(Category AC3 AC200V) AC Operated Vacuum Type. Mitsubishi Electric has discontinued it (2026/07 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesLow-voltage switchgear
Sales status2026/07 Discontinued (Mitsubishi Electric)
OutlineRepresentative rating 630A(Category AC3 AC200V) AC Operated Vacuum Type

Specifications

Product SpecificationAC Operated Vacuum Magnetic Contactor
Rated Insulation Voltage Ui [V]1500
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC200 to 220V160
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC380 to 440V300
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC500 to 550V350
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC1000V750
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC1500V1000
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC200 to 220V630
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC380 to 440V630
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC500 to 550V630
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC1000V600
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC1500V600
Main Contact Conventional Free Air Thermal Current [A]750
Auxiliary Contact Rated Operating Current [A]: AC Coil Load (Category AC-15): AC240V5
Auxiliary Contact Rated Operating Current [A]: AC Coil Load (Category AC-15): AC440V3
Auxiliary Contact Rated Operating Current [A]: DC Coil Load (Category DC-13): DC110V0.6
Auxiliary Contact Rated Operating Current [A]: DC Coil Load (Category DC-13): DC220V0.2
Auxiliary Contact Minimal Applicable Load48V 200mA
Contact Arrangements (Valid): Main Contact (Standard)3NO
Contact Arrangements (Valid): Auxiliary Contact (Standard)2NO2NC
Contact Arrangements (Valid): Auxiliary Contact (Special)4NO4NC
Main Contact Making Current Capacity [A]: Category AC-3: AC220V6300
Main Contact Making Current Capacity [A]: Category AC-3: AC440V6300
Main Contact Making Current Capacity [A]: Category AC-3: AC550V6300
Main Contact Making Current Capacity [A]: Category AC-3: AC1000V6000
Main Contact Making Current Capacity [A]: Category AC-3: AC1500V6000
Main Contact Breaking Current Capacity [A]: Category AC-3: AC220V5040
Main Contact Breaking Current Capacity [A]: Category AC-3: AC440V5040
Main Contact Breaking Current Capacity [A]: Category AC-3: AC550V5040
Main Contact Breaking Current Capacity [A]: Category AC-3: AC1000V4800
Main Contact Breaking Current Capacity [A]: Category AC-3: AC1500V4800
Mechanical Durability [Mil.Times]250
Electrical Durability [Mil.Times]: Category AC-3 (Japan)25
Switching Frequency [Times/Hour]: Category AC-31200
Operation Coil Properties: Operating VoltageAC Operated
Operation Coil Properties: Inrush Input [VA]1150
Operation Coil Properties: Normal input [VA]55
Functions: Coil Surge Absorbing FunctionYes
Functions: Terminal CoversNo
Functions: Wiring Streamlining TerminalNo
Mounting MethodScrew Mounting
Terminal Screw Size: Main Circuit (Power Side)M16
Terminal Screw Size: Main Circuit (Load Side)M16
Terminal Screw Size: Operating CircuitM4
Terminal Screw Size: Operation CoilM4

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

SH-V600: frequently asked questions

Can I still buy the SH-V600 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the SH-V600, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can SH-V600 be shipped?

SH-V600 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SH-V600 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SH-V600 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SH-V600, subject to availability and destination.
