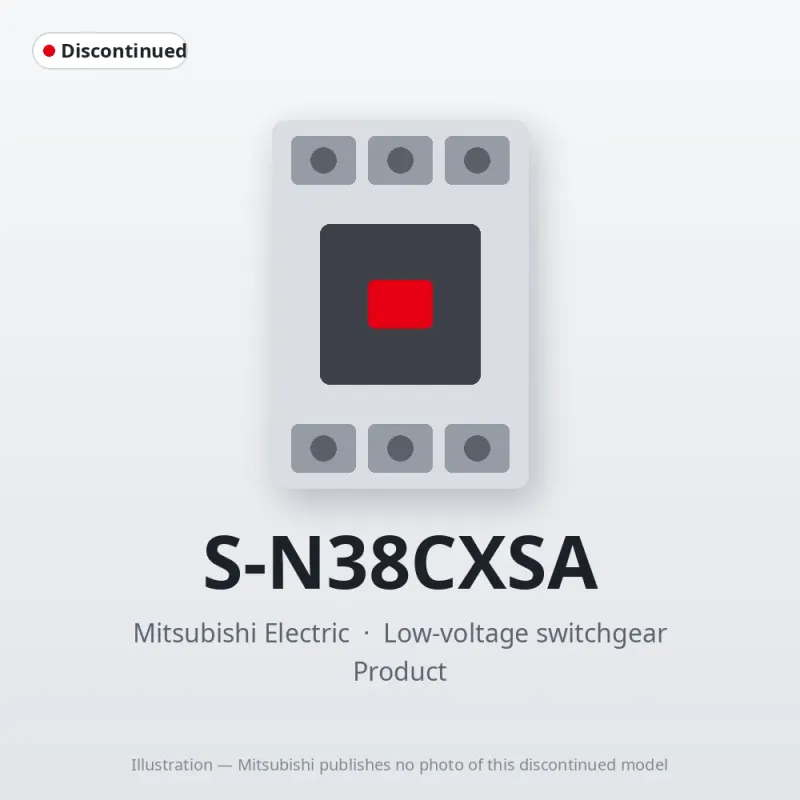

S-N38CXSA Mitsubishi Low-voltage switchgear Magnetic Contactor

MPN: S-N38CXSA · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original S-N38CXSA (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi Low-voltage switchgear – Magnetic Contactors
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the S-N38CXSA now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the S-N38CXSA, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can S-N38CXSA be shipped?

S-N38CXSA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up S-N38CXSA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for S-N38CXSA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for S-N38CXSA, subject to availability and destination.

The Mitsubishi Electric S-N38CXSA is a magnetic Contactor in the Low-voltage switchgear. Representative rating 35A (Category AC-3 AC200V) AC Operated Terminal Covers(with Wiring Streamlining Terminal). Mitsubishi Electric has discontinued it (2023/04 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	Low-voltage switchgear
Sales status	2023/04 Discontinued (Mitsubishi Electric)
Outline	Representative rating 35A (Category AC-3 AC200V) AC Operated Terminal Covers(with Wiring Streamlining Terminal)

Specifications

Product Specification	AC Operated
Rated Insulation Voltage Ui [V]	690
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC200 to 220V	7.5
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC380 to 440V	15
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC500 to 550V	15
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Global): AC220 to 240V	11
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Global): AC380 to 440V	15
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Global): AC500V	15
Main Contact Rating [Kw]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Global): AC690V	11
Main Contact Rating [Kw]: Three-Phase Resistive Load (Category AC-1): AC200 to 240V	20
Main Contact Rating [Kw]: Three-Phase Resistive Load (Category AC-1): AC400 to 440V	40
Main Contact Rating [Kw]: Single-Phase Resistive Load (Category AC-1): AC100 to 110V	6
Main Contact Rating [Kw]: Single-Phase Resistive Load (Category AC-1): AC200 to 220V	12
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC200 to 220V	35
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC380 to 440V	32
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Japan): AC500 to 550V	24
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Global): AC220 to 240V	39
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Global): AC380 to 440V	32
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Global): AC500V	24
Main Contact Rated Operating Current [A]: Three-Phase Squirrel-Cage Motor (Category AC-3)(Global): AC690V	12
Main Contact Rated Operating Current [A]: Three-Phase Resistive Load (Category AC-1): AC200 to 240V	60
Main Contact Rated Operating Current [A]: Three-Phase Resistive Load (Category AC-1): AC400 to 440V	60
Main Contact Rated Operating Current [A]: Single-Phase Resistive Load (Category AC-1): AC100 to 110V	60
Main Contact Rated Operating Current [A]: Single-Phase Resistive Load (Category AC-1): AC200 to 220V	60
Main Contact Conventional Free Air Thermal Current [A]	60
Main Contact Minimal Applicable Load	48V 200mA
Contact Arrangements (Valid): Main Contact (Standard)	3NO
Main Contact Making Current Capacity [A]: Category AC-3: AC220V	390
Main Contact Making Current Capacity [A]: Category AC-3: AC440V	320
Main Contact Making Current Capacity [A]: Category AC-3: AC550V	240
Main Contact Making Current Capacity [A]: Category AC-3: AC690V	120
Main Contact Breaking Current Capacity [A]: Category AC-3: AC220V	312
Main Contact Breaking Current Capacity [A]: Category AC-3: AC440V	256
Main Contact Breaking Current Capacity [A]: Category AC-3: AC550V	192
Main Contact Breaking Current Capacity [A]: Category AC-3: AC690V	96
Mechanical Durability [Mil.Times]	500
Electrical Durability [Mil.Times]: Category AC-3 (Japan)	100
Electrical Durability [Mil.Times]: Category AC-1	50
Switching Frequency [Times/Hour]: Category AC-3	1800
Operation Coil Properties: Operating Voltage	AC Operated
Operation Coil Properties: Inrush Input [VA]	110
Operation Coil Properties: Normal input [VA]	13
Operation Coil Properties: Power Consumption [W]	4.3
Functions: Coil Surge Absorbing Function	Yes
Functions: Terminal Covers	Yes
Functions: Wiring Streamlining Terminal	Yes
Mounting Method	Screw Mounting,DIN Rail Mounting
Terminal Screw Size: Main Circuit (Power Side)	M5
Terminal Screw Size: Main Circuit (Load Side)	M5
Terminal Screw Size: Operation Coil	M3.5
