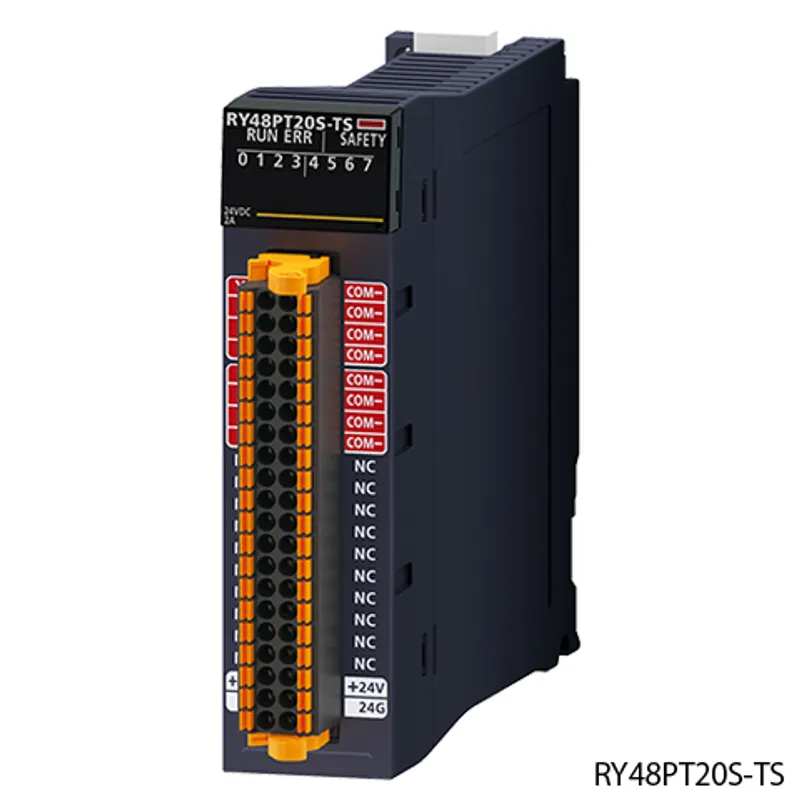

Mitsubishi Electric RY48PT20S-TS

Mitsubishi MELSEC iQ-R Series Output

MPN
RY48PT20S-TS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RY48PT20S-TS?

The Mitsubishi Electric RY48PT20S-TS is a output in the MELSEC iQ-R Series. Single wiring: 8 points, double wiring: 4 points, 24 V DC (2 A/point, 16 A/common), source + source type, spring-clamp terminal block. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryOutput
TypeTransistor output (source)
SubtypeSafety functions
OutlineSingle wiring: 8 points, double wiring: 4 points, 24 V DC (2 A/point, 16 A/common), source + source type, spring-clamp terminal block

Output specifications

Double output typeSource + Source type
Number of output points8 points (single wiring) 4 points (double wiring)
Rated load voltage24 V DC (ripple ratio: 5 % or less) (allowable voltage range: 20.4...28.8 V DC)
Maximum load current2 A/point, 16 A/common
Maximum inrush currentCurrent is limited by the overload protection function.
Leakage current at OFF0.1 mA or less
Maximum voltage drop at ONDC 1.0 V
Surge suppressorZener diode
Protection functionOutput overload protection function
Output circuit response time: OFF to ON0.4 ms or less (at 24 V DC)
Output circuit response time: ON to OFF0.4 ms or less (at 24 V DC)
Output reflection processing timeOutput circuit response time
External power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
External power supply: Current59 mA (at 24 V DC)
External power supply: Protection functionExternal power supply overvoltage protection function
Output common terminal arrangement8 points/common

Common specifications

Safety cycle time2 ms
Dielectric withstand voltage510 V AC for 1 minute
Insulation resistance10 MΩ or higher by insulation resistance tester
Noise immunitySimulator noise 500 Vp-p, noise width 1 µs, noise frequency 25...60 Hz (noise simulator condition)
Protection degreeIP2X
External interface40 point 2-piece spring clamp terminal block
Number of occupied I/O points32 points (I/O assignment: Output 16 points)
Internal current consumption (5 V DC)250 mA (TYP. all points ON)
Safety elementType B, HFT = 1, SC3
External dimensions: Height106 mm
External dimensions: Width27.8 mm
External dimensions: Depth129 mm
Weight0.21 kg

Specifications

Operating ambient temperature0...55 ˚C (When an extended temperature range base unit is not used) 0...60 ˚C (When an extended temperature range base unit is used)
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Amplitude: 3.5 mm Frequency: 8.4...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Amplitude: 1.75 mm Frequency: 8.4...150 Hz, Acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in X, Y, and Z bidirections)
Operating atmosphereNo corrosive gases, flammable gases, less conductive dust
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

RY48PT20S-TS: frequently asked questions

When can RY48PT20S-TS be shipped?

RY48PT20S-TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RY48PT20S-TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RY48PT20S-TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RY48PT20S-TS, subject to availability and destination.
