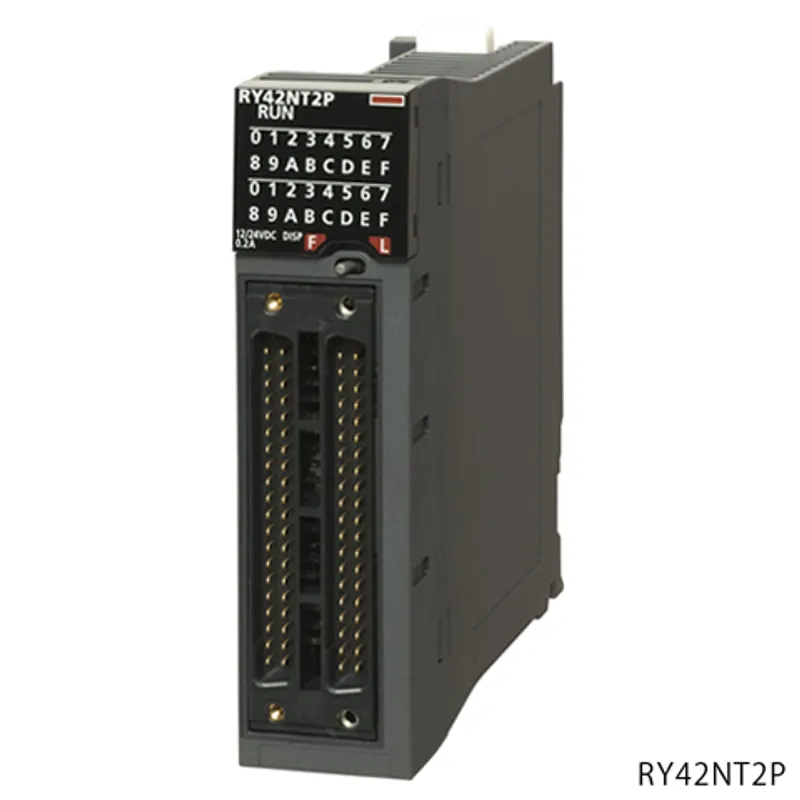

RY42NT2P Mitsubishi MELSEC iQ-R Series Output

MPN: RY42NT2P · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – I/O
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RY42NT2P be shipped?

RY42NT2P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RY42NT2P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RY42NT2P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RY42NT2P, subject to availability and destination.

The Mitsubishi Electric RY42NT2P is a output in the MELSEC iQ-R Series. Transistor output: 64 points, 12/24 V DC, 0.2 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Output
Type	Transistor output (sink)
Outline	Transistor output: 64 points, 12/24 V DC, 0.2 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2

Output specifications

Output type	Transistor output (sink type)
Number of output points	64 points
Rated load voltage	12/24 V DC (allowable voltage range: 10.2...28.8 V DC)
Maximum load current	0.2 A/point, Pilot Duty, 2 A/common
Maximum inrush current	Current is limited by the overload protection function.
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.2 V DC (TYP.) 0.2 A, 0.3 V DC (MAX.) 0.2 A
Output response time: OFF to ON	0.5 ms or less
Output response time: ON to OFF	1 ms or less (rated load, resistive load)
Surge suppressor	Zener diode
Fuse	None
Protection function: Overheat protection function	Available
Protection function: Overload protection function	Available
External power supply: Voltage	12/24 V DC (ripple ratio: within 5 %) (allowable voltage range: 10.2...28.8 V DC)
External power supply: Current	16 mA TYP. (at 24 V DC)/common, 37 mA MAX. (at 24 V DC)/common
Output common terminal arrangement	32 points/common

Common specifications

Dielectric withstand voltage	510 V AC rms for 1 minute
Insulation resistance	10 MΩ or higher by insulation resistance tester
Protection degree	IP2X
External interface	40-pin connector × 2
External interface: Applicable connector	A6CON1, A6CON2, A6CON3, A6CON4 (sold separately)
Number of occupied I/O points	64 points (I/O assignment: Output 64 points)
Internal current consumption (5 V DC)	250 mA (TYP. all points ON)
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	27.8 mm
External dimensions: Depth	110 mm
Weight	0.13 kg

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R I/O Module User's Manual (SH-081247ENG-M)	PDF · 4.40MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
Before Using the Product (BCN-P5999-0166)	PDF · 0.15MB
Safety Guidelines (IB-0800525)	PDF · 11.79MB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
