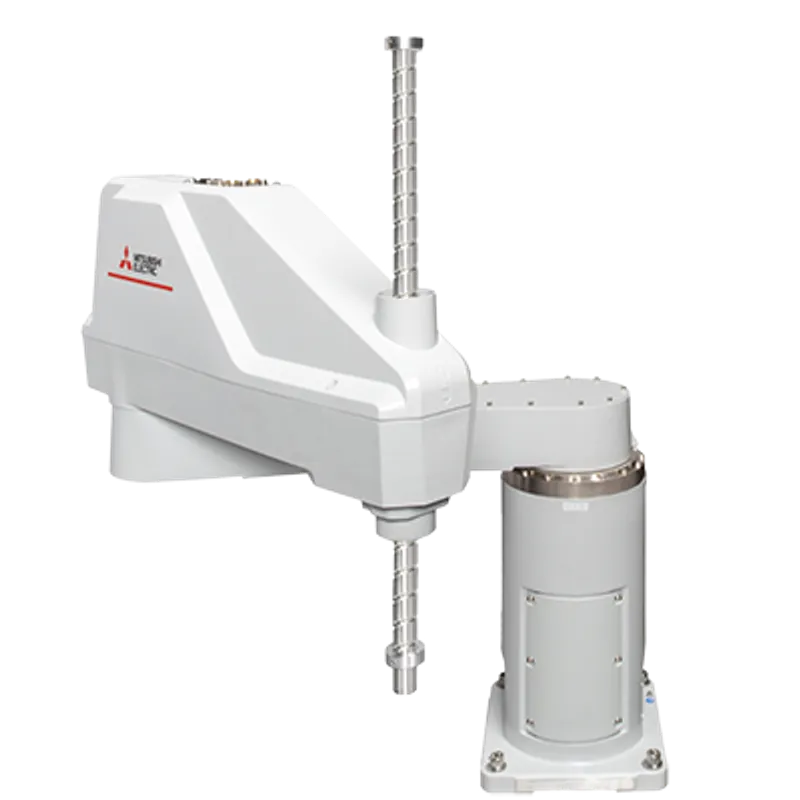

RH-20CRH8542-D Mitsubishi MELFA robot RH-CRH series

MPN: RH-20CRH8542-D · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELFA robot – Robot
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RH-20CRH8542-D be shipped?

RH-20CRH8542-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RH-20CRH8542-D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RH-20CRH8542-D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RH-20CRH8542-D, subject to availability and destination.

The Mitsubishi Electric RH-20CRH8542-D is a RH-CRH series in the MELFA robot. Standalone. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELFA robot
Category	RH-CRH series
Outline	Standalone

Specifications

Category	Robot arm
Series	RH-CRH series
Structure	Horizontal articulated
Type	RH-20CRH8542-D
Environmental specifications	Standard
Protection degree	IP20
Installation	Floor type
Degrees of freedom	4
Drive system	AC servo motor (J1, J2 axes : without brake / J3, J4 axes : with brake
Position detection method	Absolute encoder
Load capacity: Maximum: kg	20
Load capacity: Rated: kg	10
Arm length: No.1 arm: mm	375
Arm length: No.2 arm: mm	475
Maximum reach radius: mm	850
Operating range: J1: deg	－170 to ＋170
Operating range: J2: deg	－145 to ＋145
Operating range: J3(Z): mm	420
Operating range: J4(θ): deg	－360 to ＋360
Maximum speed: J1: deg/s	375
Maximum speed: J2: deg/s	600
Maximum speed: J3(Z): mm/s	2300
Maximum speed: J4(θ): deg/s	1600
Maximum speed: J1+J2: mm/s	10530
Cycle time: s	0.37
Position repeatability: Y-X composite: mm	±0.025
Position repeatability: J3(Z): mm	±0.01
Position repeatability: J4(θ): deg	±0.01
Ambient temperature: ℃	0 to 40
Mass: kg	54 (*1)
Tolerable moment: Rating: kgm 2	0.05
Tolerable moment: Maximum: kgm 2	1.0
Tool wiring	D-sub 15 pins, D-sub 9 pins
Tool pneumatic pipes	ø8 × 2, ø6 × 2
Machine cable	5m (connector on both ends)
Connected controller Type	CR800-C2HD
Control Type	Standalone
