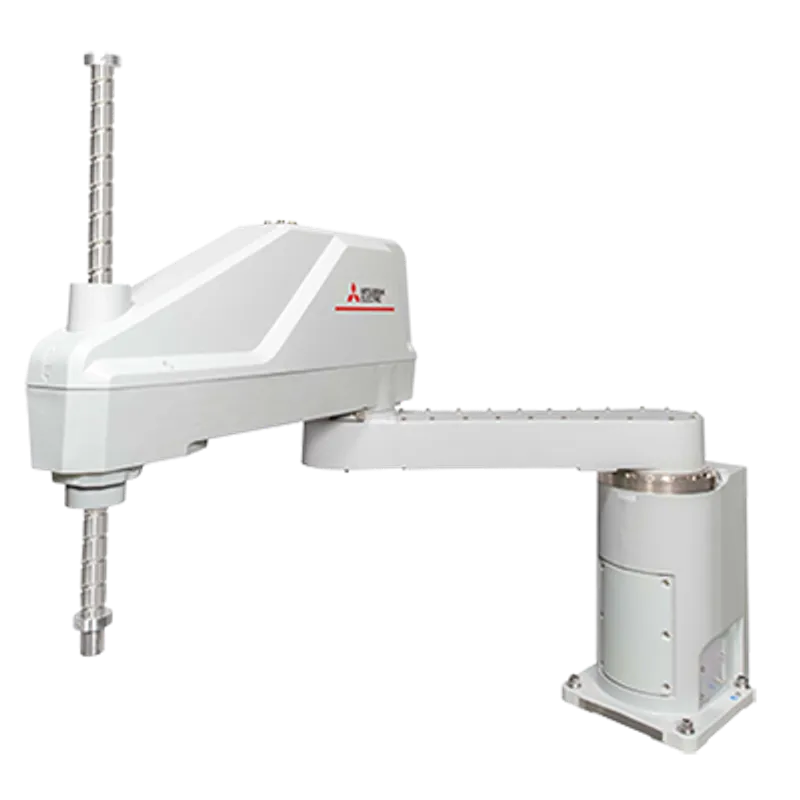

Mitsubishi Electric RH-20CRH10042-D

Mitsubishi MELFA robot RH-CRH series

MPN
RH-20CRH10042-D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RH-20CRH10042-D?

The Mitsubishi Electric RH-20CRH10042-D is a RH-CRH series in the MELFA robot. Standalone. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELFA robot
CategoryRH-CRH series
OutlineStandalone

Specifications

CategoryRobot arm
SeriesRH-CRH series
StructureHorizontal articulated
TypeRH-20CRH10042-D
Environmental specificationsStandard
Protection degreeIP20
InstallationFloor type
Degrees of freedom4
Drive systemAC servo motor (J1, J2 axes : without brake / J3, J4 axes : with brake
Position detection methodAbsolute encoder
Load capacity: Maximum: kg20
Load capacity: Rated: kg10
Arm length: No.1 arm: mm525
Arm length: No.2 arm: mm475
Maximum reach radius: mm1000
Operating range: J1: deg-170 to +170
Operating range: J2: deg-153 to +153
Operating range: J3(Z): mm420
Operating range: J4(θ): deg-360 to +360
Maximum speed: J1: deg/s375
Maximum speed: J2: deg/s600
Maximum speed: J3(Z): mm/s2300
Maximum speed: J4(θ): deg/s1600
Maximum speed: J1+J2: mm/s11510
Cycle time: s0.37
Position repeatability: Y-X composite: mm±0.025
Position repeatability: J3(Z): mm±0.01
Position repeatability: J4(θ): deg±0.01
Ambient temperature: ℃0 to 40
Mass: kg57 (*1)
Tolerable moment: Rating: kgm 20.05
Tolerable moment: Maximum: kgm 21.0
Tool wiringD-sub 15 pins, D-sub 9 pins
Tool pneumatic pipesø8 × 2, ø6 × 2
Machine cable5m (connector on both ends)
Connected controller TypeCR800-C2HD
Control TypeStandalone

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

RH-20CRH10042-D: frequently asked questions

When can RH-20CRH10042-D be shipped?

RH-20CRH10042-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RH-20CRH10042-D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RH-20CRH10042-D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RH-20CRH10042-D, subject to availability and destination.
