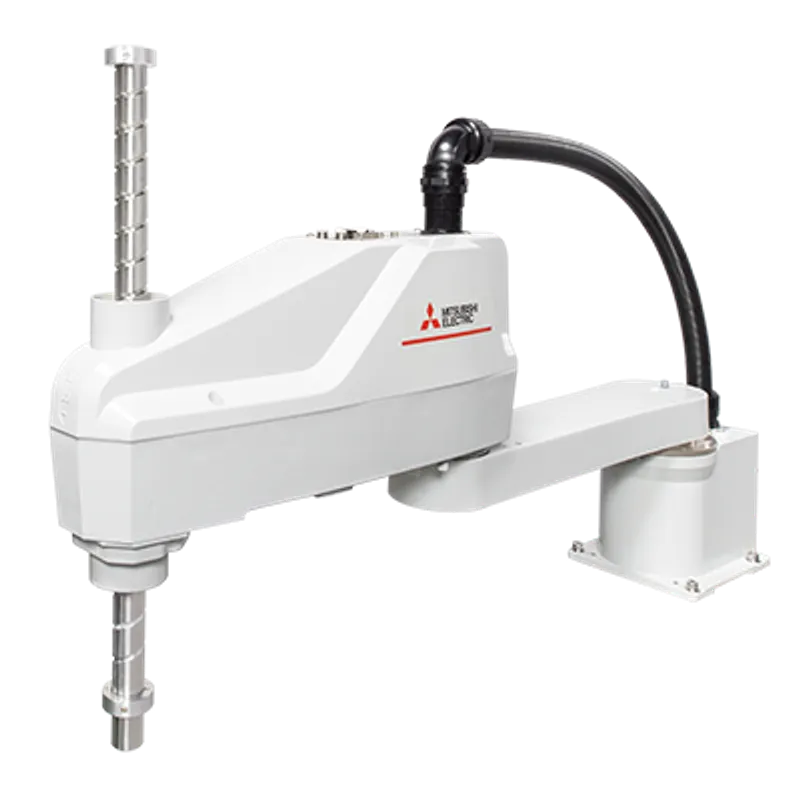

Mitsubishi Electric RH-10CRH7020-D

Mitsubishi MELFA robot RH-CRH series

MPN
RH-10CRH7020-D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RH-10CRH7020-D?

The Mitsubishi Electric RH-10CRH7020-D is a RH-CRH series in the MELFA robot. Standalone. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELFA robot
CategoryRH-CRH series
OutlineStandalone

Specifications

CategoryRobot arm
SeriesRH-CRH series
StructureHorizontal articulated
TypeRH-10CRH7020-D
Environmental specificationsStandard
Protection degreeIP20
InstallationFloor type
Degrees of freedom4
Drive systemAC servo motor (J1, J2 axes : without brake / J3, J4 axes : with brake
Position detection methodAbsolute encoder
Load capacity: Maximum: kg10
Load capacity: Rated: kg5
Arm length: No.1 arm: mm325
Arm length: No.2 arm: mm375
Maximum reach radius: mm700
Operating range: J1: deg-132 to +132
Operating range: J2: deg-150 to +150
Operating range: J3(Z): mm200
Operating range: J4(θ): deg-360 to +360
Maximum speed: J1: deg/s420
Maximum speed: J2: deg/s720
Maximum speed: J3(Z): mm/s1100
Maximum speed: J4(θ): deg/s2700
Maximum speed: J1+J2: mm/s9840
Cycle time: s0.42
Position repeatability: Y-X composite: mm±0.02
Position repeatability: J3(Z): mm±0.01
Position repeatability: J4(θ): deg±0.01
Ambient temperature: ℃0 to 40
Mass: kg20 (*1)
Tolerable moment: Rating: kgm 20.02
Tolerable moment: Maximum: kgm 20.3
Tool wiringD-sub 15 pins
Tool pneumatic pipesø6 × 2, ø4 × 1
Machine cable5m (connector on both ends)
Connected controller TypeCR800-C2HD
Control TypeStandalone
