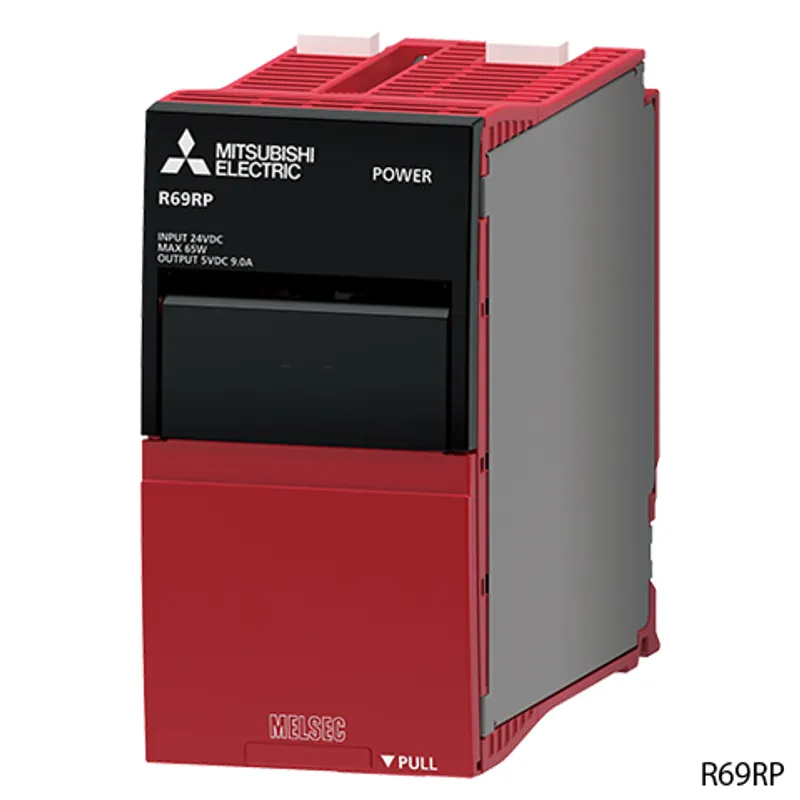

Mitsubishi Electric R69RP

Mitsubishi MELSEC iQ-R Series Redundant power supply type

MPN
R69RP
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric R69RP?

The Mitsubishi Electric R69RP is a redundant power supply type in the MELSEC iQ-R Series. Input: 24 V DC, output: 5 V DC 9 A. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryRedundant power supply type
TypeDC input
Subtype24 V DC input
OutlineInput: 24 V DC, output: 5 V DC 9 A

Specifications

Input power supply voltage24 V DC (19.2...31.2 V DC)
Maximum input power65 W
Inrush current100 A, within 1 ms
Rated output current: 5 V DC9 A
Overcurrent protection: 5 V DC10.0 A or more
Overvoltage protection: 5 V DC5.5...6.5 V
Efficiency75 % or more
Allowable momentary power failure timeWithin 10 ms
Withstand voltage510 V AC per minute (altitude 0...2000 m), between all input & LG terminals and all output & FG terminals
Insulation resistance10 MΩ or higher between all input & LG terminals, all output & FG terminals, all input terminals and LG terminal, between all output terminals and FG terminal (500 V DC insulation resistance tester)
FuseBuilt-in (user-unchangeable)
Contact output section: ApplicationERR contact
Contact output section: Rated switching voltage/current24 V DC, 0.5 A
Contact output section: Minimum switching load5 V DC, 1 mA
Contact output section: Response time: OFF to ON10 ms or less
Contact output section: Response time: ON to OFF12 ms or less
Contact output section: Life: Mechanical20 million times or more
Contact output section: Life: ElectricalRated switching voltage/current load: 100 thousand times or more
Contact output section: Surge suppressorNone
Contact output section: FuseNone
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width54.6 mm
External dimensions: Depth110 mm
Weight0.46 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.
