Mitsubishi Electric R69P
Mitsubishi MELSEC iQ-R Series Large capacity type
- MPN
- R69P
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

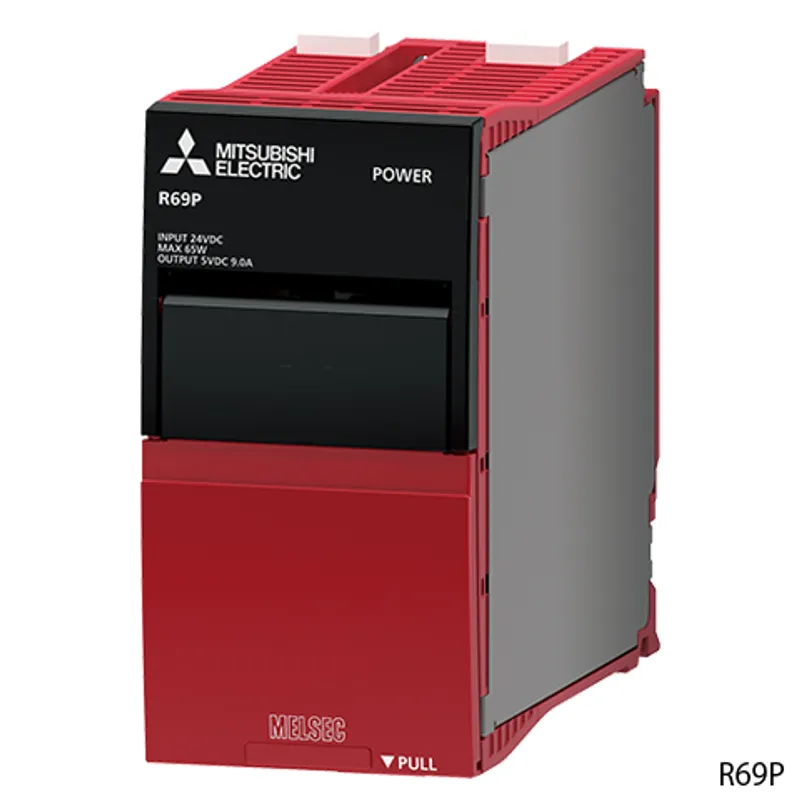

What is the Mitsubishi Electric R69P?
The Mitsubishi Electric R69P is a large capacity type in the MELSEC iQ-R Series. Input: 24 V DC, output: 5 V DC 9 A. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-R Series |
| Category | Large capacity type |
| Type | DC input |
| Subtype | 24 V DC input |
| Outline | Input: 24 V DC, output: 5 V DC 9 A |
Specifications
| Input power supply voltage | 24 V DC (19.2...31.2 V DC) |
| Maximum input power | 65 W |
| Inrush current | 100 A, within 1 ms |
| Rated output current: 5 V DC | 9 A |
| Overcurrent protection: 5 V DC | 10.0 A or more |
| Overvoltage protection: 5 V DC | 5.5...6.5 V |
| Efficiency | 75 % or more |
| Allowable momentary power failure time | Within 10 ms |
| Withstand voltage | 510 V AC per minute (altitude 0...2000 m), between all input & LG terminals and all output & FG terminals |
| Insulation resistance | 10 MΩ or higher between all input & LG terminals, all output & FG terminals, all input terminals and LG terminal, between all output terminals and FG terminal (500 V DC insulation resistance tester) |
| Fuse | Built-in (user-unchangeable) |
| Contact output section: Application | ERR contact |
| Contact output section: Rated switching voltage/current | 24 V DC, 0.5 A |
| Contact output section: Minimum switching load | 5 V DC, 1 mA |
| Contact output section: Response time: OFF to ON | 10 ms or less |
| Contact output section: Response time: ON to OFF | 12 ms or less |
| Contact output section: Life: Mechanical | 20 million times or more |
| Contact output section: Life: Electrical | Rated switching voltage/current load: 100 thousand times or more |
| Contact output section: Surge suppressor | None |
| Contact output section: Fuse | None |
| External dimensions: Height | 106 mm (base unit mounting side: 98 mm) |
| External dimensions: Width | 54.6 mm |
| External dimensions: Depth | 110 mm |
| Weight | 0.46 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
No matching specifications
