R102WCPU-W Mitsubishi MELSEC iQ-R Series MELSECWinCPU

MPN: R102WCPU-W · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – CPU
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R102WCPU-W be shipped?

R102WCPU-W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R102WCPU-W in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R102WCPU-W and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R102WCPU-W, subject to availability and destination.

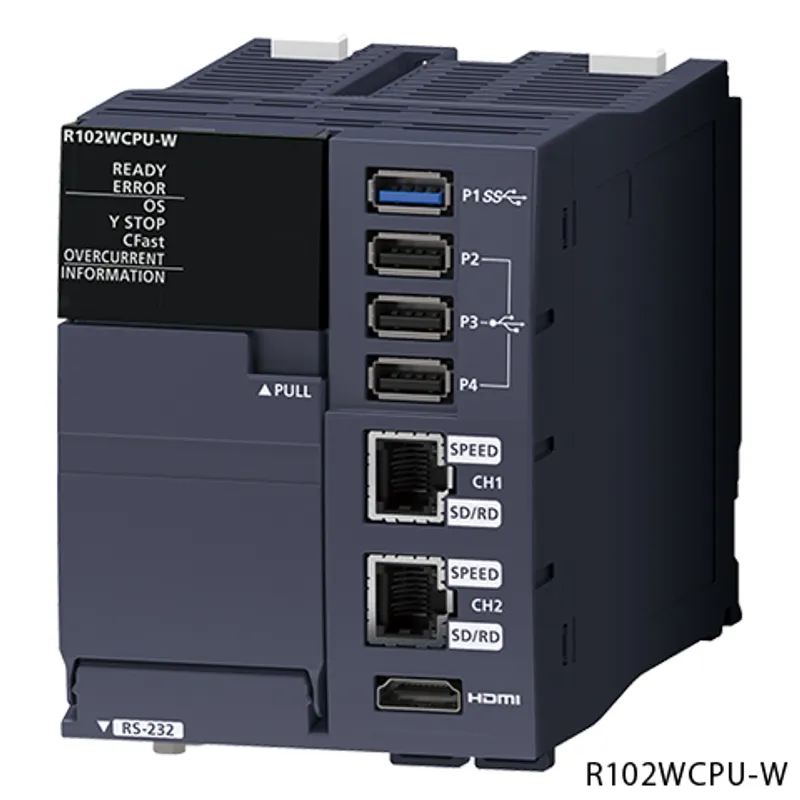

The Mitsubishi Electric R102WCPU-W is a MELSECWinCPU in the MELSEC iQ-R Series. Built-in OS: Windows ® 10 IoT Enterprise LTSC 2019. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	MELSECWinCPU
Outline	Built-in OS: Windows ® 10 IoT Enterprise LTSC 2019

Software specifications

Operating system	Windows ® 10 IoT Enterprise LTSC 2019
Programming language	C/C++, Visual Basic, C#

Hardware specifications

MPU	Intel ® Atom™ E3930 Dual Core
Endian format	Little endian
Memory capacity: Main memory	4G bytes
Memory capacity: CFast	60G bytes
CFast life	5000 writes
Battery life	3.83 years (ambient temperature 70 ˚C, Operation rate 0%)
Extended SSD: Interface	CFast (SATA III)
Extended SSD: Maximum capacity	64G bytes
Extended SSD: Number of slots	1
Extended SSD: Power supply	+3.3 V DC, up to 0.5 A
Ethernet port: Interface	10BASE-T/100BASE-TX/1000BASE-T
Ethernet port: Number of channels	2
Ethernet port: Communication method	Full-duplex/half-duplex
Ethernet port: Transmission method	Base band
Ethernet port: Data transmission speed	10 Mbps (10BASE-T), 100 Mbps (100BASE-TX), 1000 Mbps (1000BASE-T)
Ethernet port: Number of cascaded connections	Maximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX)
Ethernet port: Maximum segment length	100 m
Ethernet port: Connector applicable to external wiring	RJ45
Ethernet port: Supported function	Auto-negotiation function (automatic recognition of communication speed/communication method) Auto-MDI/MDI-X (automatic recognition of straight/crossing cable)
RS-232 connector: Interface	RS-232-compliant
RS-232 connector: Number of channels	1
RS-232 connector: Communication method	Full-duplex/half-duplex
RS-232 connector: Synchronization method	Start-stop synchronization method
RS-232 connector: Transmission speed	9600, 14400, 19200, 28800, 38400, 57600, 115200 bps
RS-232 connector: Transmission distance	Up to 15 m
RS-232 connector: Data format: Start bit	1
RS-232 connector: Data format: Data bit	7/8
RS-232 connector: Data format: Parity bits	1/None
RS-232 connector: Data format: Stop bit	1/2
RS-232 connector: Parity check	Yes (even/odd)/None
RS-232 connector: Sum check code	Yes/None
RS-232 connector: Transmission control	Flow control (RS/CS control)
RS-232 connector: Connector applicable to external wiring	D-sub 9 pin connector
USB connector: Interface	USB3.0, USB2.0
USB connector: Number of channels	• USB3.0: 1 • USB2.0: 3
USB connector: Connector	Type A
USB connector: Transmission speed	• USB3.0: 5 Gbps (Super Speed) • USB2.0: 480 Mbps (High Speed)
USB connector: Power supply	• USB3.0: Bus power +5 V DC, up to 900 mA • USB2.0: Bus power +5 V DC, up to 500 mA
USB connector: Supported standard	According to the installed operating system
Display I/F: Interface	HDMI 1.4b
Display I/F: Number of ports	1
Display I/F: Resolution	Up to 3840 × 2160 @ 30 Hz
Display I/F: Display color	Up to 48 bits
Display I/F: Audio output	Supported
Display I/F: Connector	HDMI TypeA connector
Display I/F: Cable length	Up to 2 m
SD memory card: Number of slots	1
SD memory card: Interface	SDHC High Speed
SD memory card: Power supply	+3.3 V DC, 220 mA
Clock function: Displayed information	Year, month, date, hour, minute, second, and day of week (automatic leap year detection)
Clock function: Accuracy	Daily error: -24.72...+2.78 s (0...55 ˚C) Daily error: -2.60...+2.78 s (25 ˚C)
Allowable momentary power failure time	The time differs depending on the power supply module used.
Internal current consumption (5 V DC)	4.4 A
External dimensions: Height	112 mm (base unit mounting side: 98 mm)
External dimensions: Width	84.2 mm
External dimensions: Depth	131 mm
Weight	0.63 kg

Specifications

Operating ambient temperature	0...55 ˚C (When an extended temperature range base unit is not used) 0...60 ˚C (When an extended temperature range base unit is used)
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R MELSECWinCPU Module User's Manual (SH-082431ENG-D)	PDF · 8.21MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
MELSEC iQ-R MELSECWinCPU Module Programming Manual (SH-082433ENG-B)	PDF · 1.01MB
Before Using the Product (BCN-P5999-1464)	PDF · 0.13MB
Safety Guidelines (IB-0800525)	PDF · 11.79MB
