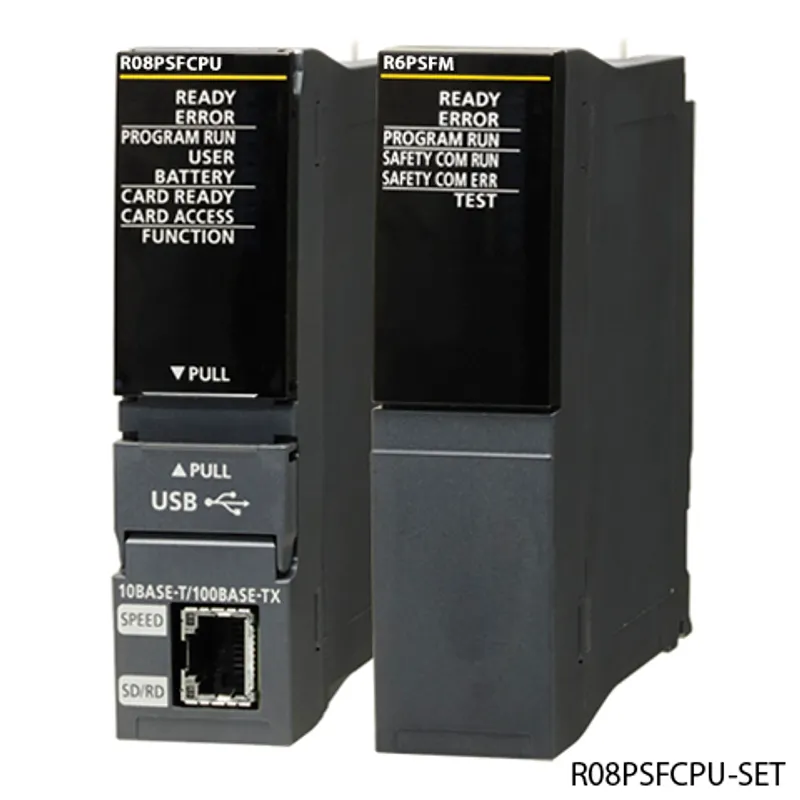

R08PSFCPU-SET Mitsubishi MELSEC iQ-R Series Process CPU
MPN: R08PSFCPU-SET · Brand: Mitsubishi Electric (Factory Automation)
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC iQ-R Series – CPU |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R08PSFCPU-SET be shipped?
R08PSFCPU-SET is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R08PSFCPU-SET in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R08PSFCPU-SET and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R08PSFCPU-SET, subject to availability and destination.
The Mitsubishi Electric R08PSFCPU-SET is a process CPU in the MELSEC iQ-R Series. Number of I/O points: 4096, program capacity: 80K steps (general control)/40K steps (safety control), basic operation processing speed (LD X0): 0.98 ns, external interface: USB/Ethernet, product package of a SIL2 process CPU (R08PSFCPU) and SIL2 function module (R6PSFM). Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-R Series |
| Category | Process CPU |
| Type | SIL2 function |
| Outline | Number of I/O points: 4096, program capacity: 80K steps (general control)/40K steps (safety control), basic operation processing speed (LD X0): 0.98 ns, external interface: USB/Ethernet, product package of a SIL2 process CPU (R08PSFCPU) and SIL2 function module (R6PSFM) |
Hardware specifications
| Operation control method | Stored program cyclic operation |
| I/O control mode | Refresh mode (The direct access input/output is available by specifying the direct access input/output (DX, DY).) |
| Instruction processing time: LD instruction | 0.98 ns |
| Instruction processing time: MOV instruction | 1.96 ns |
| Memory capacity: Program capacity | 80K steps (320K bytes) (for safety programs: 40K steps (160K bytes)) |
| Memory capacity: Program memory | 320K bytes (for safety programs: 160K bytes) |
| Memory capacity: Device/label memory | 1178K bytes |
| Memory capacity: Signal flow memory: Area for programs | 10K bytes |
| Memory capacity: Signal flow memory: Area for function blocks | 256K bytes |
| Memory capacity: Data memory | 5M bytes |
| Memory capacity: CPU buffer memory | 1024K bytes (512K words) (including the built-in function information area 4M bytes (2K words)) |
| Memory capacity: Refresh memory | 2048K bytes |
| Maximum number of storable files: Program memory | 380 (for safety programs: 48) |
| Maximum number of storable files: Device/label memory (file storage area) | 323 (with or without an extended SRAM cassette) |
| Maximum number of storable files: Data memory | 512 |
| Maximum number of storable files: SD memory card | • NZ1MEM-2GBSD: 256 • NZ1MEM-4GBSD, NZ1MEM-8GBSD, NZ1MEM-16GBSD: 32767 |
| Number of storable folders: Data memory | 512 |
| Number of storable folders: SD memory card | • NZ1MEM-2GBSD: 256 • NZ1MEM-4GBSD, NZ1MEM-8GBSD, NZ1MEM-16GBSD: 32767 |
| USB port | USB2.0 High Speed (miniB)×1 |
| Ethernet port | 10BASE-T/100BASE-TX×1 |
| Clock function | Year, month, date, hour, minute, second, and day of week (automatic leap year adjustment) Accuracy: -1.00...+1.00 s/d at 0...55 ˚C |
| Allowable momentary power failure time | The time differs depending on the power supply module used. |
| Internal current consumption (5 V DC) | 0.76 A |
| External dimensions: Height | 106 mm (base unit mounting side: 98 mm) |
| External dimensions: Width | 27.8 mm |
| External dimensions: Depth | 110 mm |
| Weight | 0.20 kg |
Programming specifications
| Programming language | Ladder diagram (LD), structured text (ST), function block diagram (FBD/LD) |
| Programming supporting function | Function block (FB), label programming (local/global) |
| Program operation: Execution type: Standard program | Initial execution type, scan execution type, fixed scan execution type, event execution type, standby type |
| Program operation: Execution type: Safety program | Fixed scan execution type |
| Program operation: Type of interrupt: Standard program | Interrupt using the internal timer (I28 to I31), interrupt by modules |
| Number of executable programs: General program | General program: 252 (including safety programs) |
| Number of executable programs: Safety program | 32 |
| Number of FB files: FB file | 128, including the number of safety FB files |
| Number of FB files: Safety FB file | 16 |
| Tact performance: Constant scan | 0.2...2000 ms (in 0.1 ms increments) |
| Tact performance: Cyclic interrupt: Interrupt using the internal timer (I28...I31) | 0.5...1000 ms (in 0.5 ms increments) |
| Timer performance: Low-speed timer | 1...1000 ms (Default: 100 ms) |
| Timer performance: High-speed timer | 0.01...100 ms (Default: 10 ms) |
| Timer performance: Long timer | 0.001...1000 ms (Default: 0.001 ms) |
| Number of I/O points | 4096 points |
| Number of user device points: Input (X) | 12288 points (fixed) |
| Number of user device points: Output (Y) | 12288 points (fixed) |
| Number of user device points: Internal relay (M) | 12288 points (user-changeable) |
| Number of user device points: Latch relay (L) | 8192 points (user-changeable) |
| Number of user device points: Link relay (B) | 8192 points (user-changeable) |
| Number of user device points: Link special relay (SB) | 2048 points (user-changeable) |
| Number of user device points: Annunciator (F) | 2048 points (user-changeable) |
| Number of user device points: Edge relay (V) | 2048 points (user-changeable) |
| Number of user device points: Timer device: Timer (T) | 1024 points (user-changeable) |
| Number of user device points: Timer device: Long timer (LT) | 1024 points (user-changeable) |
| Number of user device points: Retentive timer device: Retentive timer (ST) | 0 points (user-changeable) |
| Number of user device points: Retentive timer device: Long retentive timer (LST) | 0 points (user-changeable) |
| Number of user device points: Counter device: Counter (C) | 512 points (user-changeable) |
| Number of user device points: Counter device: Long counter (LC) | 512 points (user-changeable) |
| Number of user device points: Data register (D) | 18432 points (user-changeable) |
| Number of user device points: Link register (W) | 8192 points (user-changeable) |
| Number of user device points: Link special register (SW) | 2048 points (user-changeable) |
| Number of safety user device points: Safety input (SA\X) | 8192 points (user-selectable to either 8192 or 12288 points) |
| Number of safety user device points: Safety output (SA\Y) | 8192 points (user-selectable to either 8192 or 12288 points) |
| Number of safety user device points: Safety internal relay (SA\M) | 6144 points (user-changeable) |
| Number of safety user device points: Safety link relay (SA\B) | 4096 points (user-changeable) |
| Number of safety user device points: Safety timer (SA\T) | 512 points (user-changeable) |
| Number of safety user device points: Safety retentive timer (SA\ST) | 0 points (user-changeable) |
| Number of safety user device points: Safety counter (SA\C) | 512 points (user-changeable) |
| Number of safety user device points: Safety data register (SA\D) | 12288 points (user-changeable) |
| Number of safety user device points: Safety link register (SA\W) | 4096 points (user-changeable) |
| Number of system device points: Special relay (SM) | 4096 points (fixed) |
| Number of system device points: Special register (SD) | 4096 points (fixed) |
| Number of system device points: Function input (FX) | 16 points (fixed) |
| Number of system device points: Function output (FY) | 16 points (fixed) |
| Number of system device points: Function register (FD) | 5 points × 4 words (fixed) |
| Number of safety system device points: Safety special relay (SA\SM) | 4096 points (fixed) |
| Number of safety system device points: Safety special register (SA\SD) | 4096 points (fixed) |
| Number of file register points: File register (R/ZR) | 0 points (user-changeable) |
| Number of index register points: Index register (Z) | 20 points (user-changeable, up to 24 points) |
| Number of index register points: Long index register (LZ) | 2 points (user-changeable, up to 12 points) |
| Number of pointer points: Pointer (P) (global/local) | 8192 points (user-changeable, up to 16384 points) |
| Number of pointer points: Interrupt pointer (I) | 1024 points (fixed) |
| Number of link direct device points: Link input (J☐\X☐) | 16384 points maximum |
| Number of link direct device points: Link output (J☐\Y☐) | 16384 points maximum |
| Number of link direct device points: Link relay (J☐\B☐) | 32768 points maximum |
| Number of link direct device points: Link register (J☐\W☐) | 131072 points maximum |
| Number of link direct device points: Link special relay (J☐\SB☐) | 512 points maximum |
| Number of link direct device points: Link special register (J☐\SW☐) | 512 points maximum |
| Number of module access device points: Intelligent function module device (U☐\G☐) | 268435456 points maximum |
| Number of CPU buffer memory access device points: Buffer memory (U3E☐\G☐) | 268435456 points maximum |
| Number of refresh data register points: Refresh data register (RD) | 524288 points (1048576 points maximum) |
| Number of nesting points: Nesting (N) | 15 points |
Specifications of the built-in Ethernet function
| Transmission specifications: Data transmission speed | 100/10 Mbps |
| Transmission specifications: Communication mode | 100BASE-TX: Full-duplex/half-duplex 10BASE-T: Full-duplex/half-duplex |
| Transmission specifications: Interface | RJ45 (AUTO MDI/MDI-X) |
| Transmission specifications: Transmission method | Base band |
| Transmission specifications: Maximum frame size | 1518 bytes |
| Transmission specifications: Jumbo frame | Not available |
| Transmission specifications: Maximum segment length | 100 m (length between hub and node) |
| Transmission specifications: IP version | IPv4 |
| Sending/receiving data storage memory: Number of simultaneously open connections | 16 connections (connections usable on a program) |
| Sending/receiving data storage memory: Socket communications | 5K words × 16 |
Specifications
| Operating ambient temperature | 0...55 ˚C (When an extended temperature range base unit is not used) 0...60 ˚C (When an extended temperature range base unit is used) |
| Storage ambient temperature | -25...75 ˚C |
| Operating ambient humidity | 5...95 %RH, non-condensing |
| Storage ambient humidity | 5...95 %RH, non-condensing |
| Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions |
| Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011 | Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks) |
| Operating atmosphere | No corrosive gases, flammable gases, less conductive dust |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
