What is the Mitsubishi Electric QX28?

The Mitsubishi Electric QX28 is a input in the MELSEC-Q Series. AC input: 8 points, 100...240 V AC, 17 mA (200 V AC, 60 Hz)/14 mA (200 V AC, 50 Hz)/8 mA (100 V AC, 60 Hz)/7 mA (100 V AC, 50 Hz), response time: 20 ms, 8 points/common, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryInput
TypeAC input
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineAC input: 8 points, 100...240 V AC, 17 mA (200 V AC, 60 Hz)/14 mA (200 V AC, 50 Hz)/8 mA (100 V AC, 60 Hz)/7 mA (100 V AC, 50 Hz), response time: 20 ms, 8 points/common, 18-point terminal block

Input specifications

Input typeAC input
Number of input points8 points
Rated input voltage, frequency100...240 V AC (+10/-15 %), 50/60 Hz (±3 Hz)
Input voltage distortionWithin 5 %
Rated input currentApprox. 17 mA (200 V AC, 60 Hz) Approx. 14 mA (200 V AC, 50 Hz) Approx. 8 mA (100 V AC, 60 Hz) Approx. 7 mA (100 V AC, 50 Hz)
Inrush currentMaximum 950 mA, within 1 ms (at 264 V AC)
ON voltage/ON current80 V AC or more/5 mA or more (50 Hz, 60 Hz)
OFF voltage/OFF current30 V AC or less/1.7 mA or less (50 Hz, 60 Hz)
Input impedanceApprox. 12 kΩ (60 Hz), approx. 15 kΩ (50 Hz)
Input response time: OFF to ON10 ms or less (200 V AC 50 Hz, 60 Hz)
Input response time: ON to OFF20 ms or less (200 V AC, 50 Hz, 60 Hz)
Input common terminal arrangement8 points/common

Common specifications

Isolation methodPhotocoupler
Dielectric withstand voltage2830 V AC rms/3 cycles (altitude 2000 m)
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP1X
Operation indicationON indication (LED)
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Input 16 points)
Internal current consumption (5 V DC)50 mA (TYP. all points ON)
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.20 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QX28: frequently asked questions

When can QX28 be shipped?

QX28 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QX28 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QX28 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QX28, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric QX10 – Mitsubishi MELSEC-Q Series Input
Mitsubishi Electric
QX10

Mitsubishi MELSEC-Q Series Input

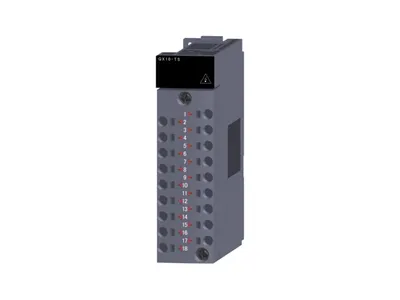

Mitsubishi Electric QX10-TS – Mitsubishi MELSEC-Q Series Input
Mitsubishi Electric
QX10-TS

Mitsubishi MELSEC-Q Series Input

Mitsubishi Electric QX11L – Mitsubishi MELSEC-Q Series Large input
Mitsubishi Electric
QX11L

Mitsubishi MELSEC-Q Series Large input

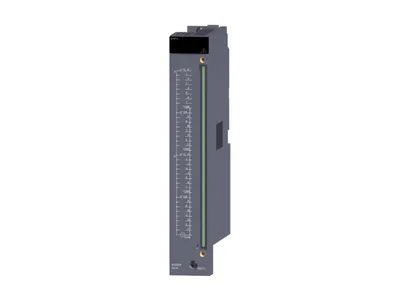

Mitsubishi Electric QX21L – Mitsubishi MELSEC-Q Series Large input
