Mitsubishi Electric QX11L

Mitsubishi MELSEC-Q Series Large input

MPN
QX11L
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

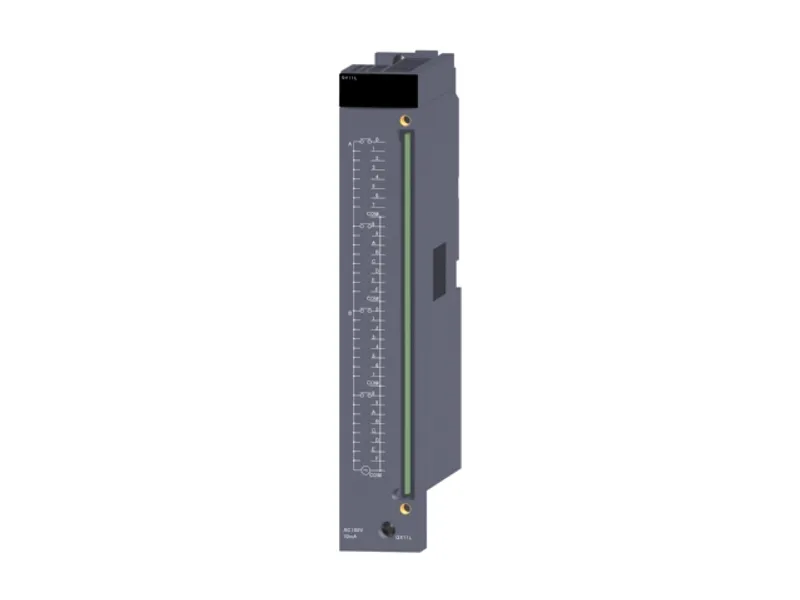

What is the Mitsubishi Electric QX11L?

The Mitsubishi Electric QX11L is a large input in the MELSEC-Q Series. AC input: 32 points, 100...120 V AC 10 mA (100 V AC, 60 Hz), response time: 25 ms, 32 points/common, 38-point terminal block (terminal block sold separately), replacement model: AX11. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryLarge input
TypeAC input
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineAC input: 32 points, 100...120 V AC 10 mA (100 V AC, 60 Hz), response time: 25 ms, 32 points/common, 38-point terminal block (terminal block sold separately), replacement model: AX11

Input specifications

Input typeAC input
Number of input points32 points
Rated input voltage, frequency100...120 V AC (+10/-15 %), 50/60 Hz (±3 Hz)
Input voltage distortionWithin 5 %
Rated input current10 mA (100 V AC, 60 Hz)
Maximum number of simultaneous input points60 %
Inrush currentMaximum 300 mA, within 0.3 ms (at 132 V AC)
ON voltage/ON current80 V AC or more/6 mA or more
OFF voltage/OFF current30 V AC or less/2 mA or less
Input impedanceApprox. 10 kΩ (60 Hz), approx. 12 kΩ (50 Hz)
Input response time: OFF to ON15 ms or less
Input response time: ON to OFF25 ms or less
Input common terminal arrangement32 points/common

Common specifications

Isolation methodPhotocoupler
Dielectric withstand voltage1780 V AC rms/3 cycles (altitude 2000 m)
Operation indicationON indication (LED)
External interface38-point terminal block connector (terminal block is sold separately)
Number of occupied I/O points32 points (I/O assignment: Input 32 points)
Internal current consumption (5 V DC)75 mA (TYP. all points ON)
External dimensions: Height220 mm
External dimensions: Width37.5 mm
External dimensions: Depth116.5 mm
Weight0.33 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QX11L: frequently asked questions

When can QX11L be shipped?

QX11L is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QX11L in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QX11L and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QX11L, subject to availability and destination.
